ENGINE MAINTENANCE - 11

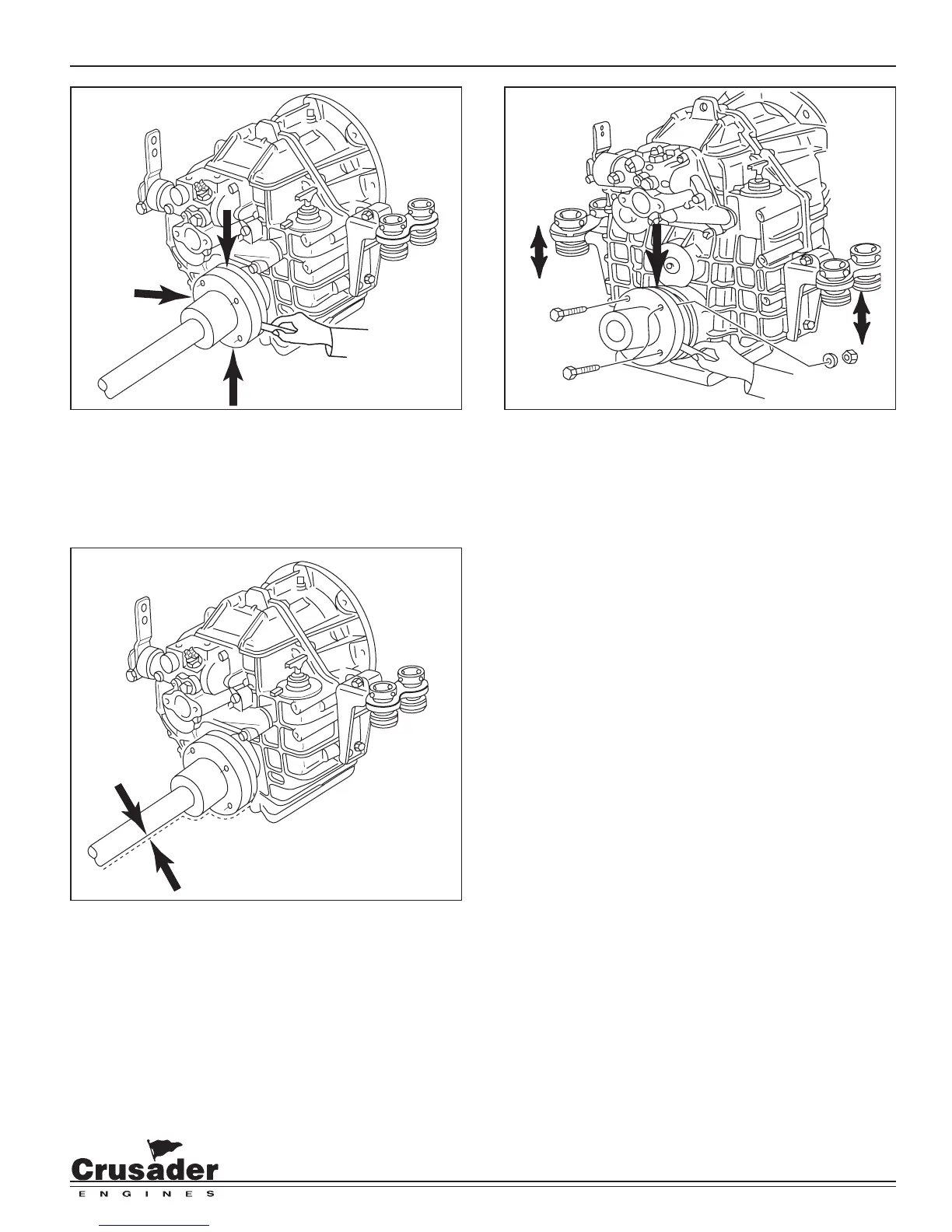

Figure 11-29 Centering Propeller Shaft - 8 Degree Down
Angle
4. Check for any angular misalignment. Hold
coupling faces tightly together and check for a
gap between the coupling faces, with a 0.003 in.
(0.07 mm) feeler gauge, at 90-degree intervals.
Figure 11-30 Angular Alignment - 8 Degree Down Angle
Figure 11-31 Angular Alignment - āVā Drives
