Section 2. Installing the PX-712A Internal ATAPI Drive
16 PX-712 Installation and Users Manual
Changing the Mode Jumper on Your PX-712A
Drive
The drive arrives from the factory with its mode jumper set to Master.
(A function is ON if the jumper is installed and OFF if the jumper is
removed.)

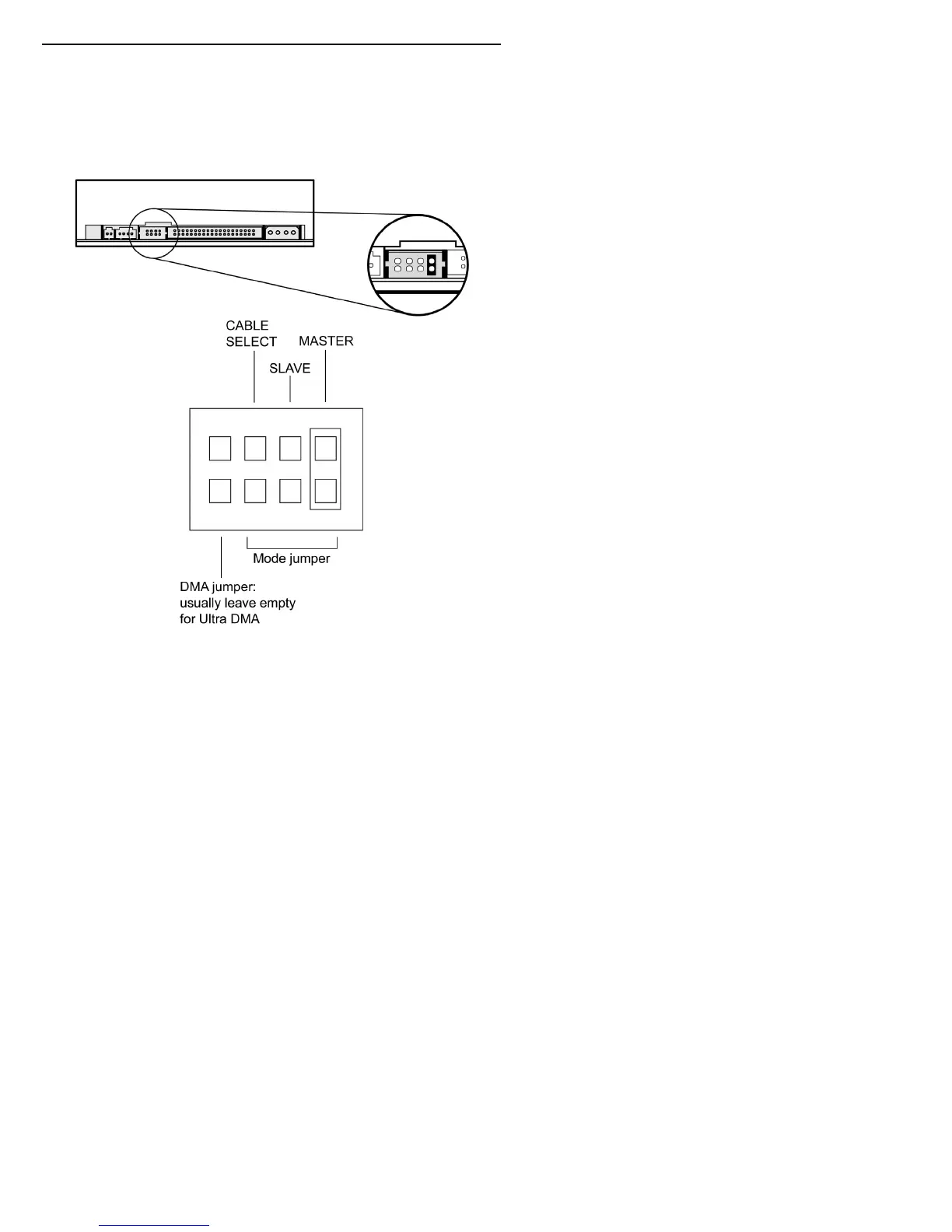

Figure 4: Factory settings for mode jumper at the rear
of the internal drive
