Plotmaster 400 - Seed Flow Control

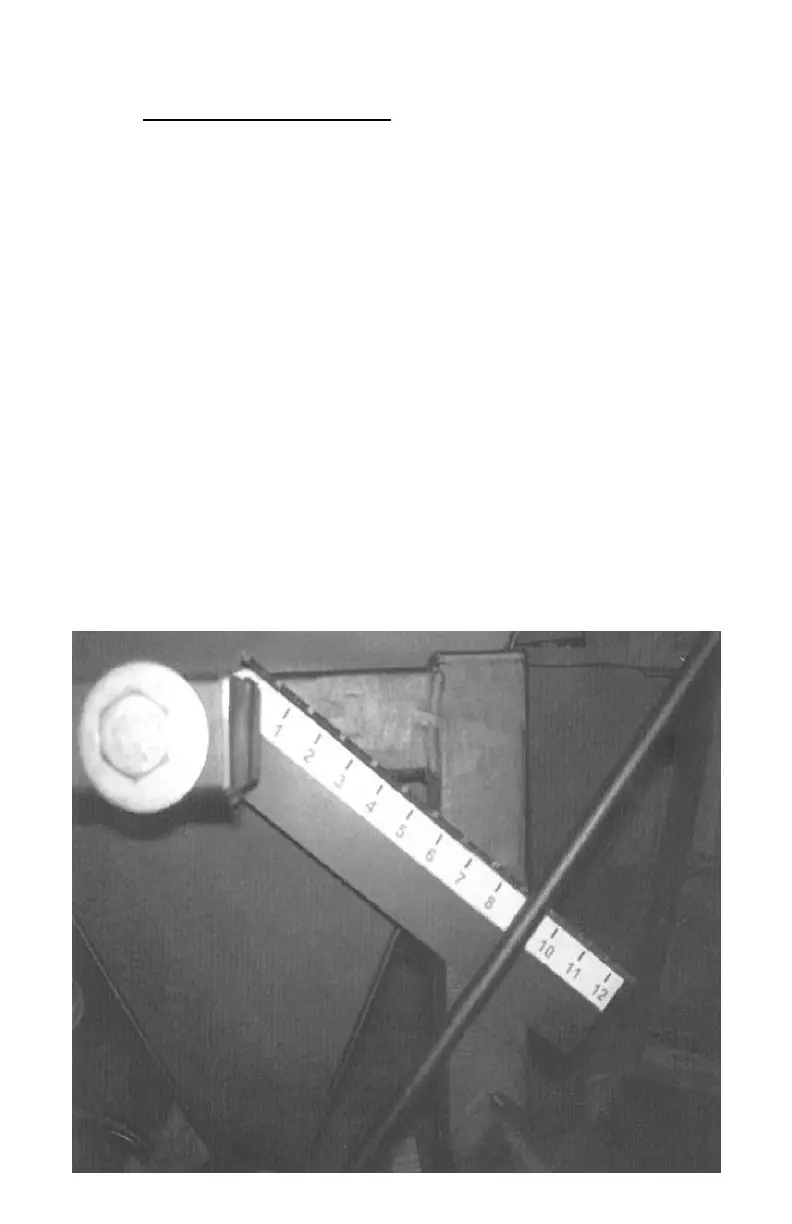

I. The SEED FLOW CONTROL (pictured below) is used to open
the seed gate for dispensing seed. There are twelve (12) detents
or settings on the seed flow control that allows for distributing
different size seeds. Adjust the seed flow control to the desired
size and amount of seed you want to dispense.
In the “0” position the seed gate should be fully closed. The
seed gate can be adjusted by loosening the bolt that holds the
lever to the seed gate. Use a 9/16” wrench for this task.
Smaller seeds will be dispensed at positions “1” through “3”
and larger seeds at higher number detents.
(see helpful hints)
