10
8.2 Storage and transportation
conditions
Panel cannot be directly exposed to weather
conditions, i.e. rain and solar radiation.
Storage and transportation temperature
should be within a range of -15…65 °C.
During transportation, the panel cannot be
exposed to vibrations which are higher than
typical for normal transporting conditions.
8.3 Environmental conditions
The panel should be installed in a dry
residential compartment.
Moreover, the regulator cannot be used in
condensation conditions and be exposed to
water.
8.4 Assembly requirements
In order to guarantee a maximum operation
efficiency of the regulator, follow the
recommendations concerning a place of
device assembly:
1. The panel is purposed for on-wall
assembly inside rooms.
2. The panel should be assembled on a
height app. 1.5 m over the floor level.
3. Avoid places which are strongly sunlit,
close to heating devices, in direct vicinity
of doors and windows, where a
temperature measurement could be
easily interfered by external conditions.
4. Avoid places with weak air circulation.
The panel should be installed by a qualified
installer.
The manufacturer does not bear any
responsibility for damages caused by failure
to observe this manual.

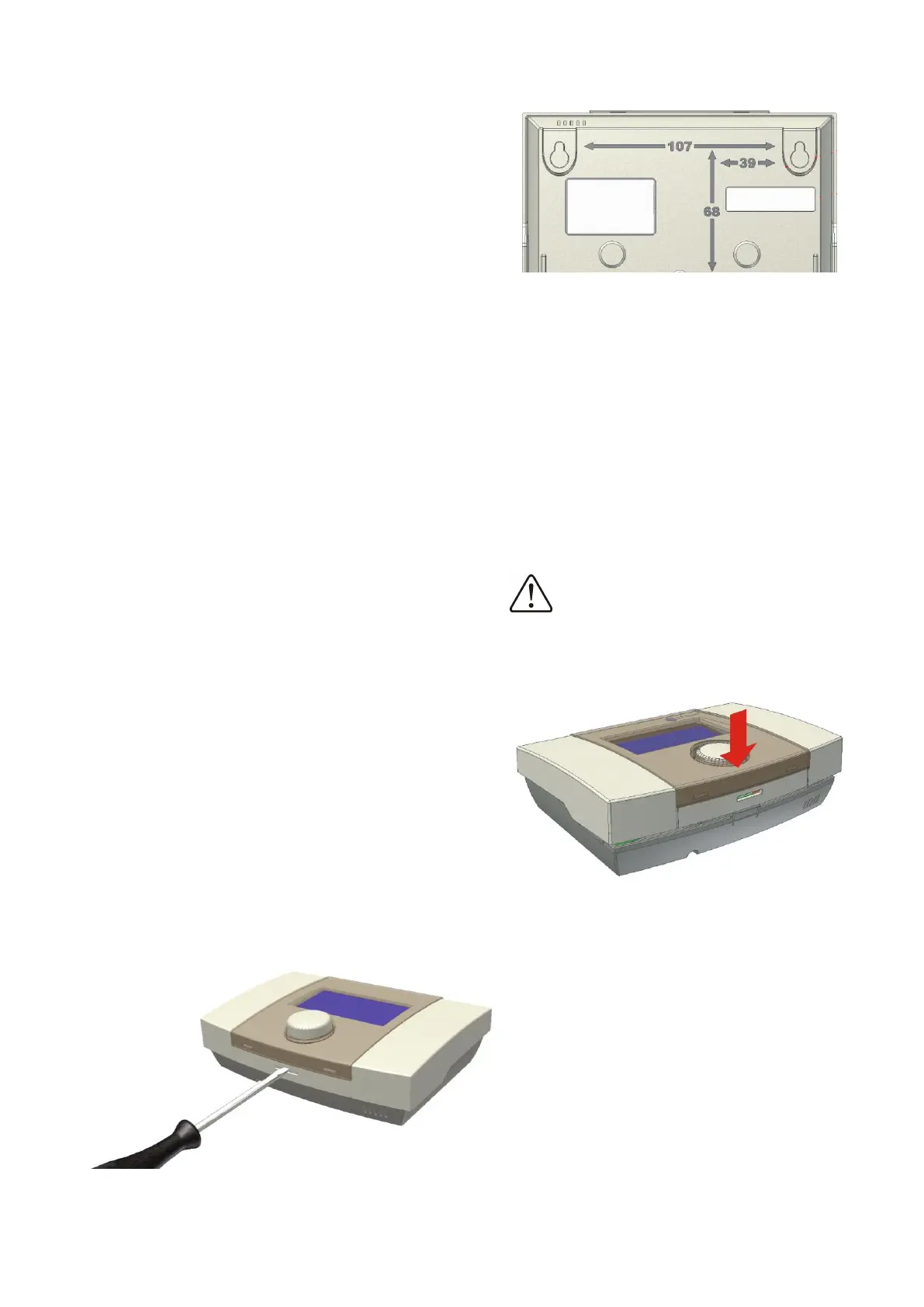

8.5 Instructions for assembly
Open the casing as shown on the figure
below:
Drill holes in a wall. If a wall is made of
bricks, use rawlplugs. Screw in the screws.
Perform electrical connections between the
ecoSTER200 panel with the ecoMAX
regulator. The ecoSTER200 panel is supplied
by the ecoMAX regulator and does not
require any supply source. Cable can be both
bricked in a wall or routed on a wall surface.
Do not lead connection cable together with
cables of electrical network in the building.
Do not lead the cable in a vicinity of devices
emitting strong electromagnetic field.
Closing the casing. Push the cover in a place
indicated by the red arrow until you hear a
clear click.
8.6 Electrical connection to the module
controllers ecoMAX
ecoSTER200 room panel can be supplied with
+5V or +12V, depending on the module
type ecoMAX. It can be powered directly
from the terminal regulator module or an
external power supply from +5V to +12VDC
/min.200mA, which is not included with the
room panel.
Maximum length of the cable connecting the
room panel with ecoMAX regulator cannot
exceed 30 m, and its cross-section area
cannot be lower than 0.25 mm
2
; it is
recommended to use 0.5 mm
2
cable.
