Plum ecoSTER 200 - Ecomax800 P1,P2,D1,D2

11
The length of uninsulated tip of the cable
should be within 8÷10mm. Cable is inserted
into a terminal by pushing a button on this
terminal with a flat screwdriver, inserting the
cable and releasing the button.

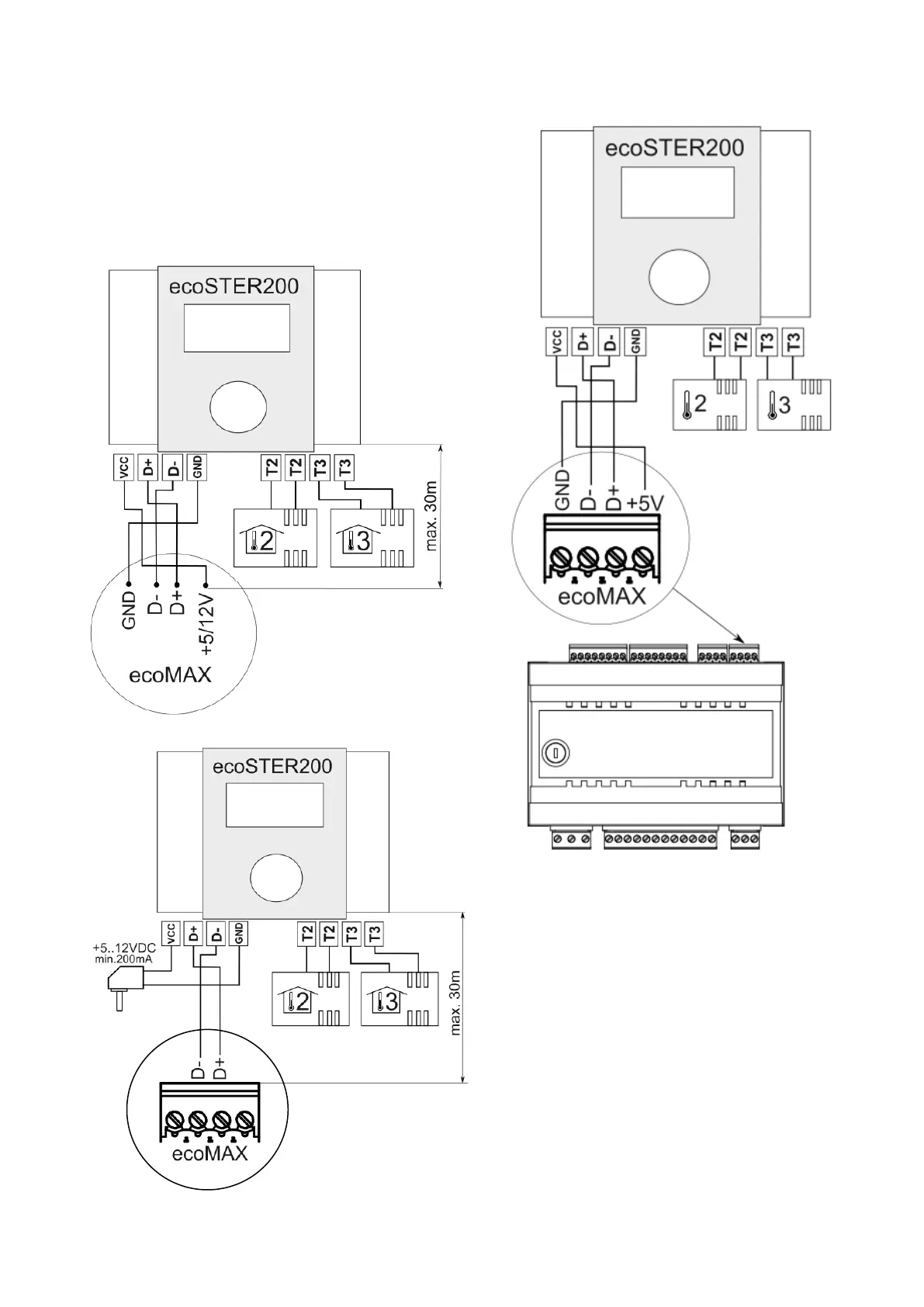

Below are the wiring scheme thermostats
with room sensors 2 and 3 type CT7 and the
way VCC panel power module + 5V or + 12V
and an optional external power supply +
5..12VDC.
8.6.1 Connection to ecoMAXX800 R2,T2
and ecoMAX800 P1,P2,D1,D2
