14

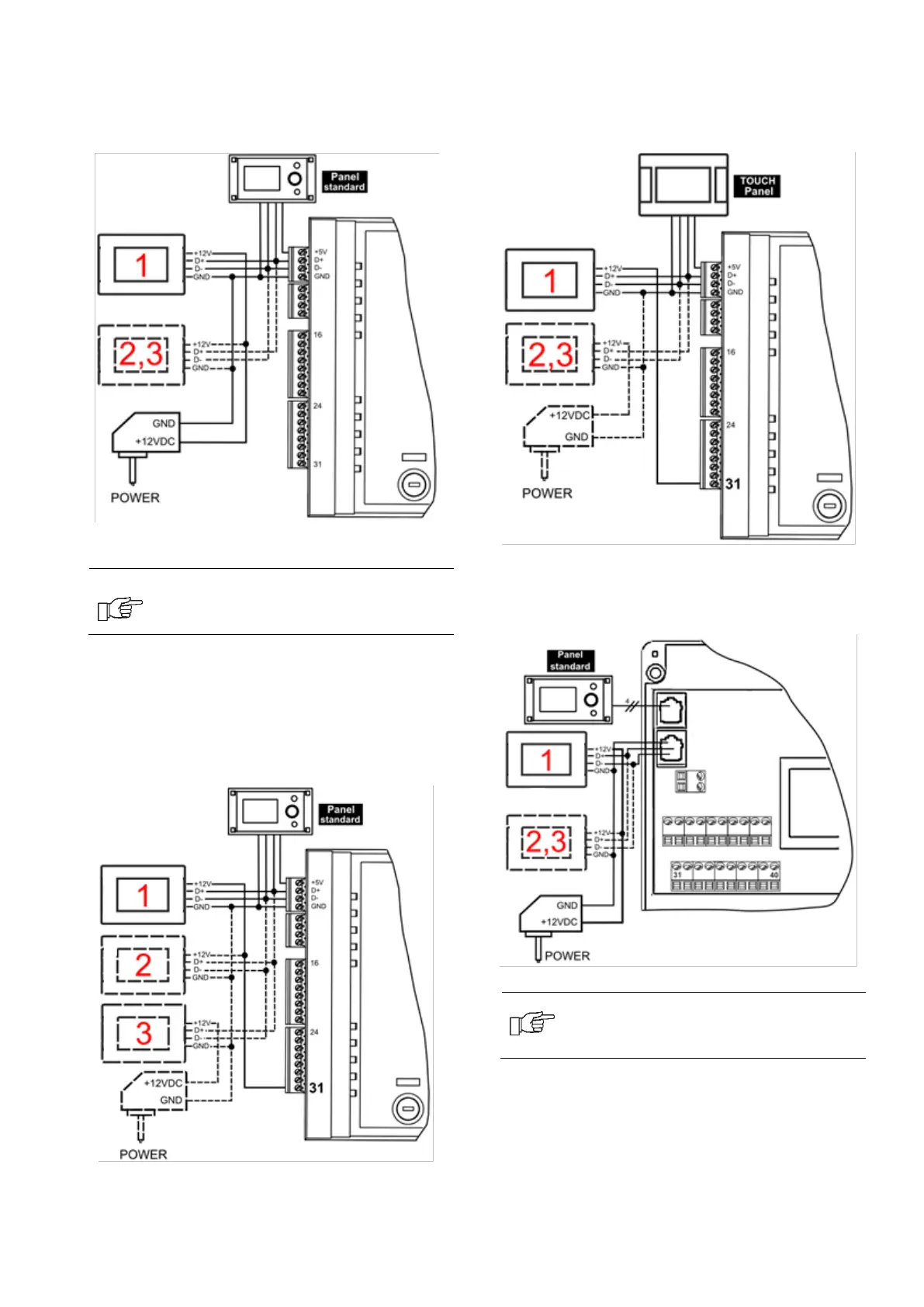

Connection with ecoMAX800P1, P2, D1,
D2 and ecoMAXX800R2, T2:
All 1,2,3 room panels require application of
an additional power adapter 12 VDC / min.
0.5 A.
Connection with ecoMAX800 P3, D3 and
ecoMAXX800 R3, T3:
Controller module can supply up to
2 colored TOUCH type panels
simultaneously.
If the main controller is equipped with a
standard control panel (version with a knob),
two room panels can be supplied directly
from the controller module (terminal 31).
Third panel has to be supplied by the
additional power adapter 12 VDC / min. 0.5
A.
If the main controller is equipped with TOU
CH control panel (colored with a touch
panel), only one room panel can be supplied
directly from the controller module (terminal
31). Panels 2 and 3 have to be supplied by
the additional power adapter 12 VDC / min.
0.5 A.
Connection with ecoMAX850P1, R1, D1:
All 1,2,3 room panels require application of
an additional power adapter 12 VDC / min.
0.5 A.
Connection with ecoMAX850P2, R2, D2:
Controller module can supply up to
2 colored TOUCH type panels
simultaneously.
If the main controller is equipped with a
standard control panel (version with a knob),
two room panels can be supplied directly
from the controller module (terminal 40).
Third panel has to be supplied by the
additional power adapter 12 VDC / min. 0.5
A.
