15

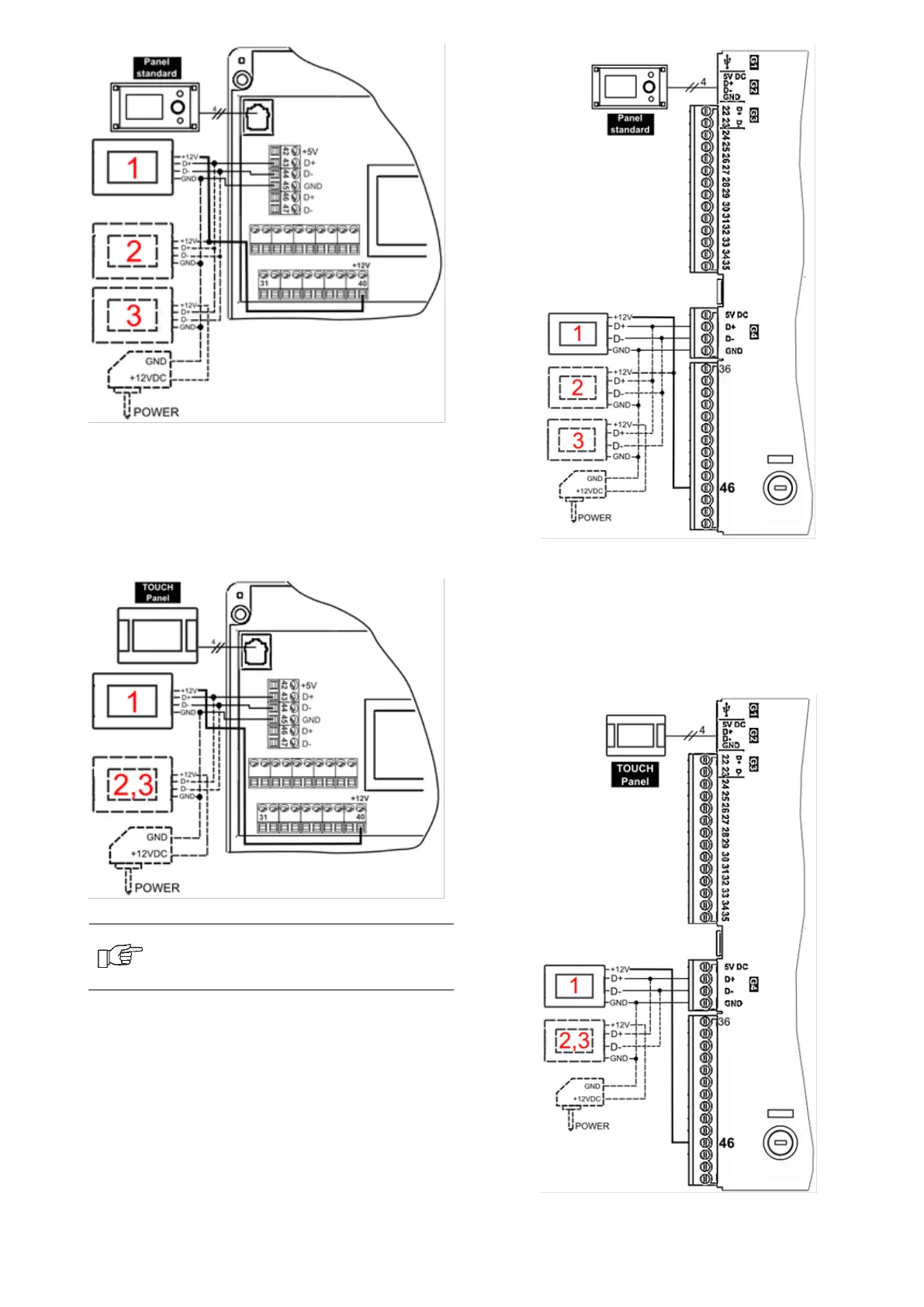

If the main controller is equipped with
TOUCH control panel (colored with a touch
panel), only one room panel can be supplied
directly from the controller module (terminal
40). Panels 2 and 3 have to be supplied by
the additional power adapter 12 VDC / min.
0.5 A.
Connection with ecoMAX860P1, D1:
Controller module can supply up to
2 colored TOUCH type panels
simultaneously.
If the main controller is equipped with a
standard control panel (version with a knob),
two room panels can be supplied directly
from the controller module (terminal 46).
Third panel has to be supplied by the
additional power adapter 12 VDC / min. 0.5
A.
If the main controller is equipped with
TOUCH control panel (colored with a touch
panel), only one room panel can be supplied
directly from the controller module (terminal
46). Panels 2 and 3 have to be supplied by
the additional power adapter 12 VDC / min.
0.5 A.
