INSTALLATION
C-6
MacR6-Z0 – USER MANUAL
BK-TYPE AND UG-TYPE GAS METER ASSEMBLY
MacR6-Z0 allows for direct connection using magnetic coupling with BK-type and UG-type gas meter
totalizers
MacR6-Z0 assembly process:
• Place the proper adapter to the gas meter totalizer

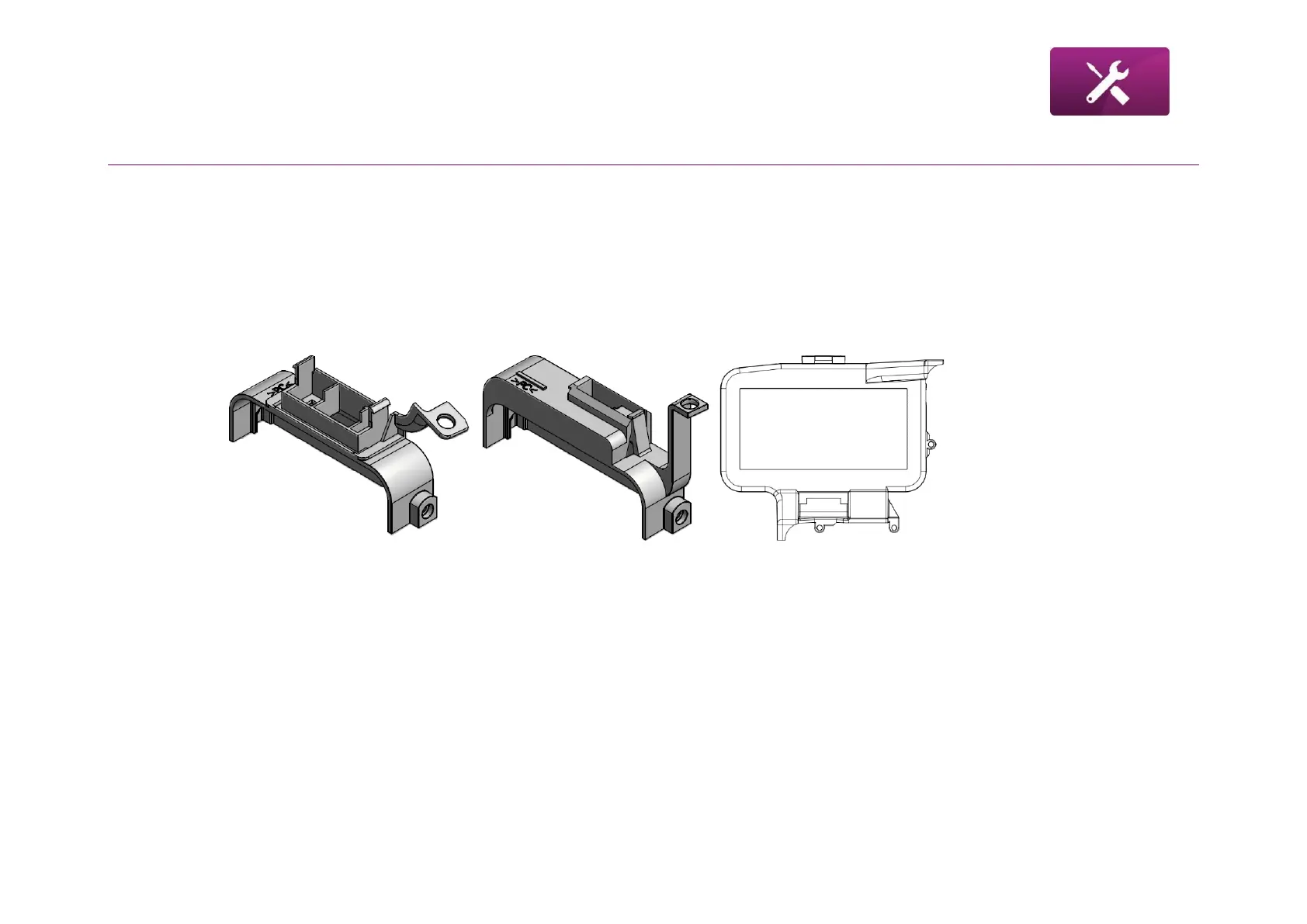

Adapters to the UG, GL-type, BK-type and RF-1 gas meters
• attach the data logger to the adapter by sliding it in with the exserted part on the top to the gas
meter totalizer, and to tighten two side sealing screws.
