INSTALLATION
C-19
MacR6-Z0 – USER MANUAL
SENSORS CONNECTION
• MacR6-Z0-P/LPT: Connect the pressure sensor to the gas flow installation. It is required to connect
the sensor using the shut-off valve.
Before assembly pressure sensor it is required to reset its indications (compenstation of atmospheric
pressure). It can be done via Android application (by option in menu Options/Pressure Zero/Make fixes and
Save data) or via PlumCONF application (set „P offset st.” parameter to value: 1). “P CAL” will be shown on
LCD.
After pressure sensor assembly it is recommended to perform SEr 8 menu to begin pressure measurement
test (measurement every 5 seconds during one minute). Value of pressure will be shown on LCD.

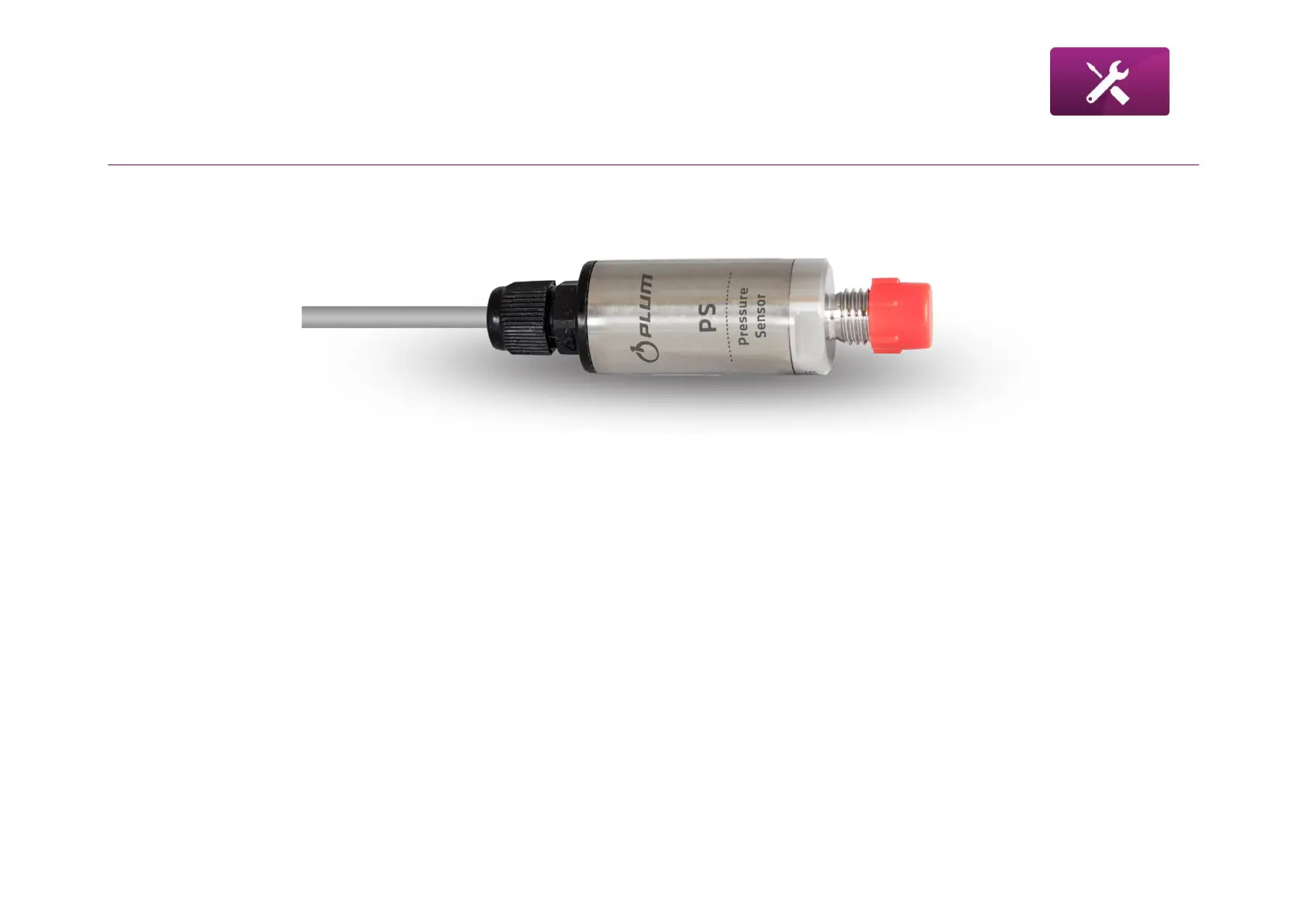

Pressure sensor for MacR6-Z0-P device
