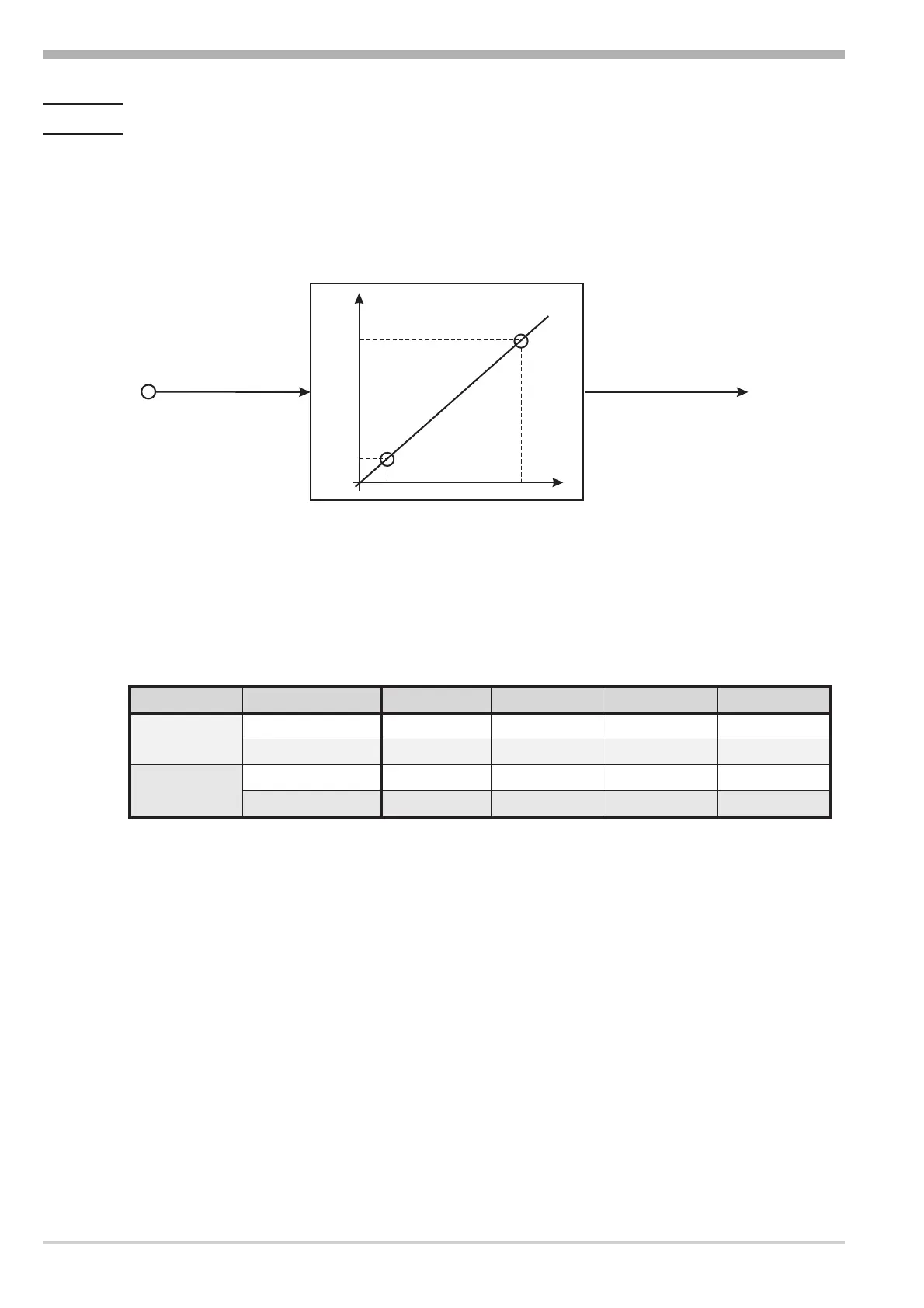

5.1 Input scaling (only visible with qUIC = OFF)
When using current or voltage signals as input variables for InP.1 or InP.2,
scaling of input and display values at parameter setting level is required. Specifi
-
cation of the input value for lower and higher scaling point is in the relevant elec
-
trical unit (mA/ V).
5.1.1 Input Inp.1
g
Parameters InL.1 , OuL.1, InH.1 and OuH.1 are only visible if
ConF / InP.1 / Corr = 3 is chosen.
In addition to these settings, InL.1 and InH.1 can be adjusted in the range
(0...20mA / 0...10V) determined by selection of S.tYP .
a
For using the predetermined scaling with thermocouple and resistance
thermometer (Pt100), the settings for InL.1 and OuL.1 and for InH.1 and
OuH.1 must have the same value.
g
Input scaling changes at calibration level (r page 27) are displayed by input
scaling at parameter setting level. After calibration reset (OFF), the scaling
parameters are reset to default.
5.1.2 Input InP.2
As input InP.1, but only S.Typ = 30 adjustable!
Parameter setting level
KS40-1 burner 26 Input scaling (only visible with qUIC = OFF)
S.tYP Input signal InL.1 OuL.1 InH.1 OuH.1
30
(0...20mA)
0…20mA 0 any 20 any
4…20mA 4 any 20 any
40
(0...10V)
0…10V 0 any 10 any
2…10V 2 any 10 any
mA/V
phys.
quantity
mA / V
phys. quantity
OuH.x
OuL.x
InH.x
InL.x
