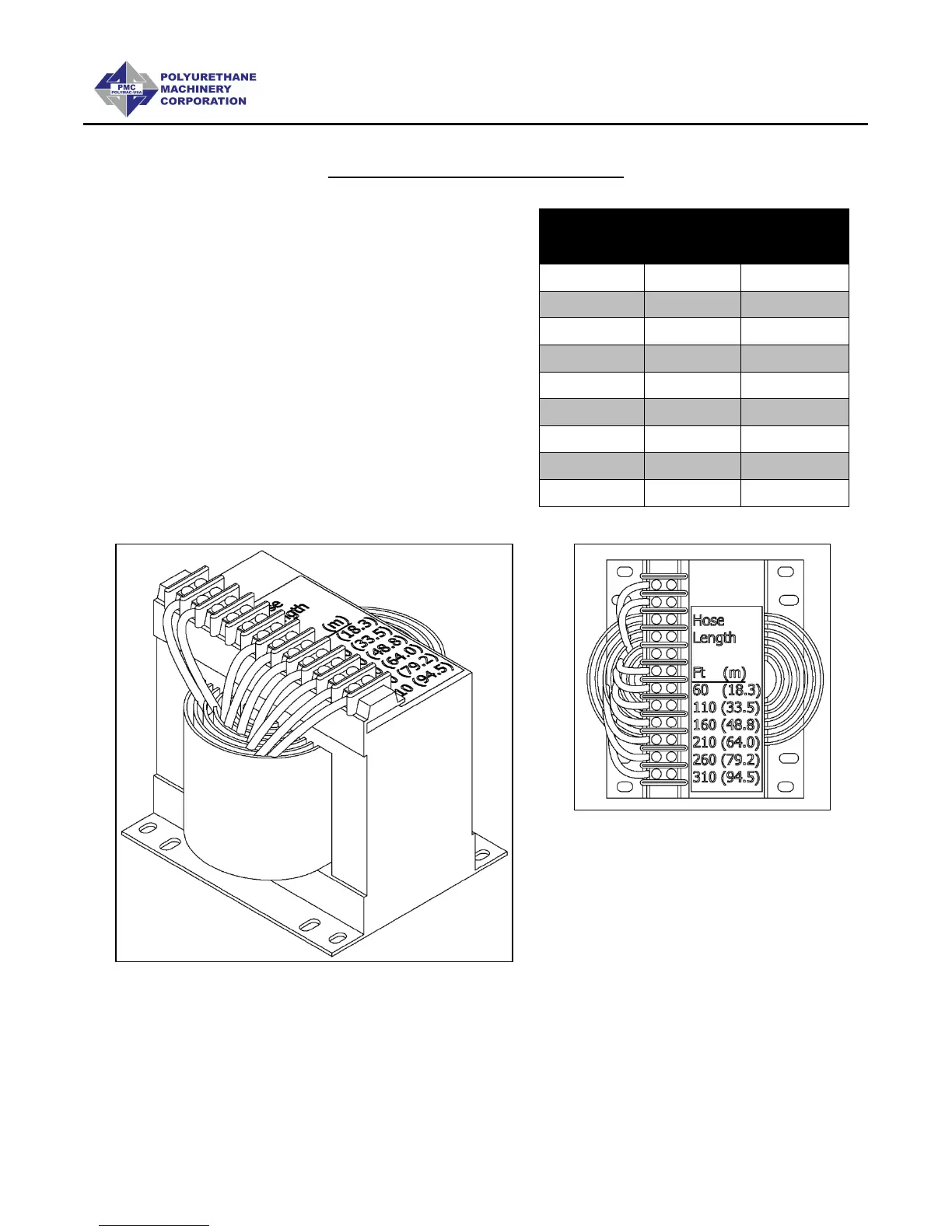

TRANSFORMER SETTINGS
The Hose Heat Transformer offers the ability of
connecting to different output voltages depending
on the total length of the Heated Hose in use,
maximizing the heating ability of the Heated Hose.
The factory setting is 18 volts for use with 60 feet
(18 Meters) of Heated Hose
1
. Before starting the
Proportioner, ensure the setting matches the
Heated Hose length installed. If Heated Hose
sections are added or removed, the Tap setting
must be changed to a setting which will limit the
maximum amperage in the Heated Hose to 52
amps. The suggested tap settings are tabled
below
2
:
1
90V transformers (shown above) allow for a maximum hose length of 310 ft (94.5 m). 120V
transformers allow for a maximum hose length of 410 ft (125 m).
2
90V Transformers (shown above) are standard on all PH(X)-25 Proportioners. 120V
Transformers are standard for all PH(X)-40 Proportioners, and are also optional for PH(X)-25
Proportioners
RECOMMENDED TAP
SETTINGS
1
