PMC PH-25 - Hydraulic Cylinder Complete

PART IDENTIFICATION
1
An asterisk (*) next to an item number represents a part that is different for specific models.
See the description in the part list table for details.
58

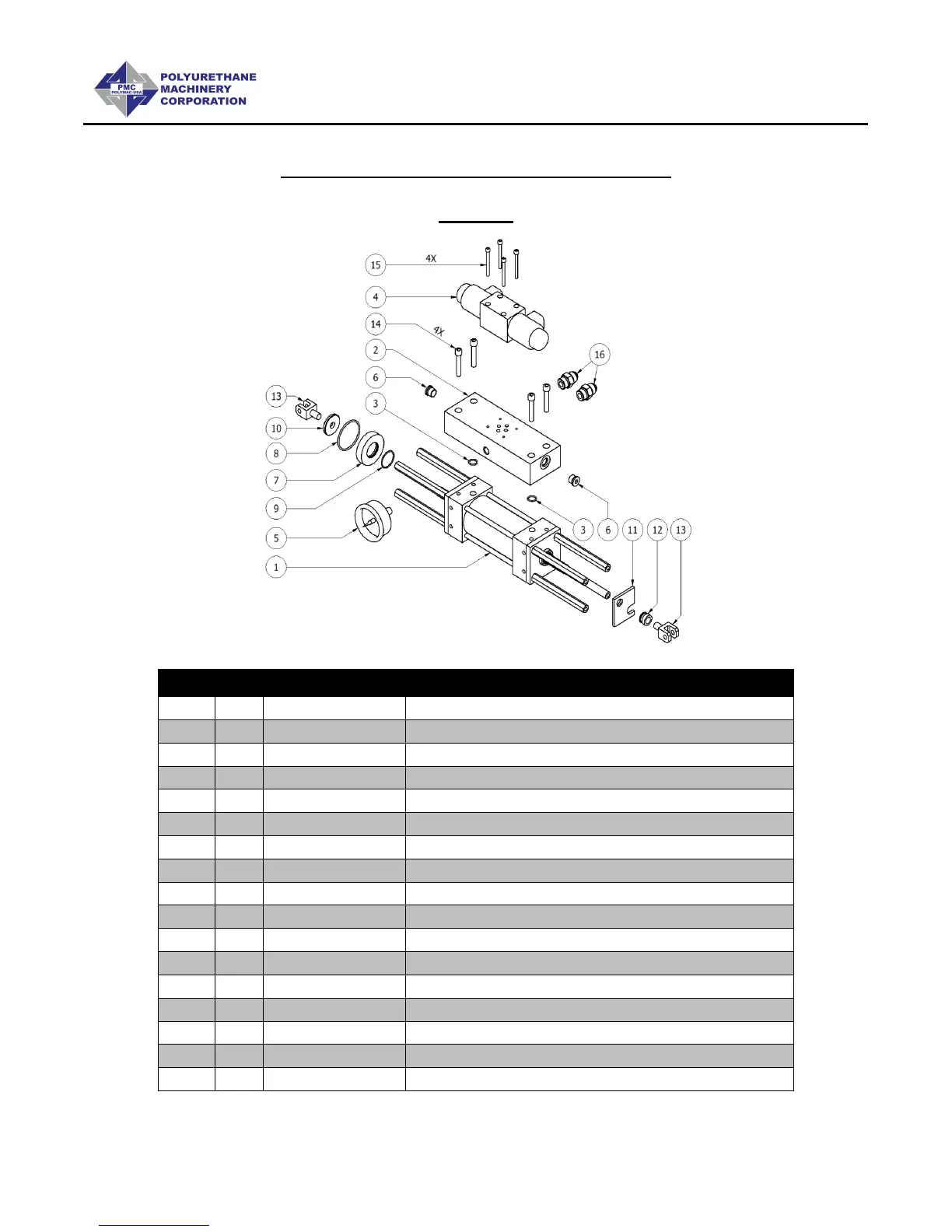

HYDRAULIC CYLINDER COMPLETE
(HI-01)
HYDRAULIC CYLINDER COMPLETE (HI-01)
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
HI-05025A
HYDRAULIC CYLINDER ASSEMBLY (SEE PAGE 59)
2
1
HI-05070
HYDRAULIC MANIFOLD; CLASSIC
3
2
OR-00038A
2MMX12.5MM 75 VITON BROWN
4
1
HI-05003
DIRECTIONAL VALVE
5
1
HI-05040
PRESS GAUGE 0-2000 PSI
6
2
HI-05070-4
6 ORB PLUG
7
1
PU-05004
END CAP; CYLINDER
8
1
OR-00020A
#136 VITON LUBE CYLINDER O-RING
9
1
OR-00044A
O-RING #024; LUBE CYLINDER
10
1
PU-05005
BAFFLE
11
1
PU-05009
PLATE; REVERSING SWITCH
12
1
PU-05010
BUSHING
13
2
PU-05006
CLEVIS; HYDRAULIC
14
4
FLOOR STOCK
5/16-18 X 3/4 HEX SCHS
15
4
FLOOR STOCK
#10-24 X 2 HEX SHCS
16
2
HI-05012
3/4-16 O-RING X 3/4-16 JIC NIP
