PMC PH-55 - Pump Line Assembly (Ph-55 Only)

PART IDENTIFICATION
9

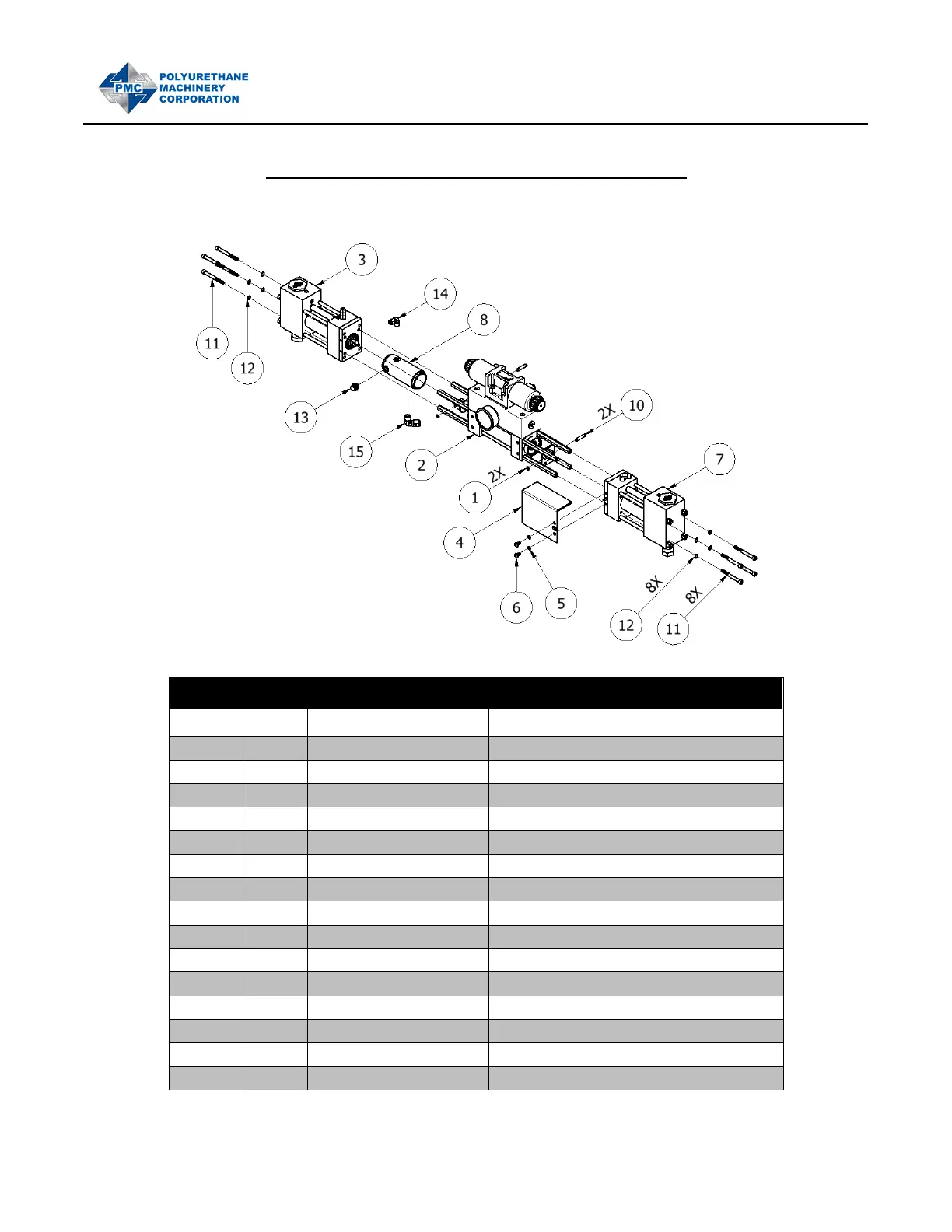

PUMP LINE ASSEMBLY (PH-55 ONLY)
(PL-55)
PUMP LINE ASSEMBLY (PL-55)
ITEM
QTY
PART NUMBER
DESCRIPTION
1
2
201167
E-CLIP, 7/32
2
1
202169
HYDRAULIC CYLINDER COMPLETE
3
1
202666
“A” PUMP ASSY, SIZE 120, PH-55
4
1
PU-01027
ACTIVATOR PLATE COVER
5
2
PU-01027 (O-RING)
-011 O-RING
6
2
PU-01027 (BOLT)
BHCS, 5/16-18 X 1/2
7
1
PU-05002-120
“R” PUMP ASSY, SIZE 120
8
1
PU-05003
LUBE CYLINDER
9
1
PU-05004
END CAP, CYLINDER
10
2
PU-05007
PIN, CLEVIS
11
8
PU-05008
MOUNTING BOLT
12
8
PU-05008-1
SERRATED WASHER, 5/16
13
1
RA-00065A
PLUG, PUMP CYLINDER
14
1
RA-00066A
MALE ELBOW, 3/8 TUBE X 1/4 NPT
15
1
RA-00067A
MALE ELBOW, 1/2 TUBE X 3/8 NPT
