point PODW56042W - Water Outlet; Position the Appliance

19
20
B
A

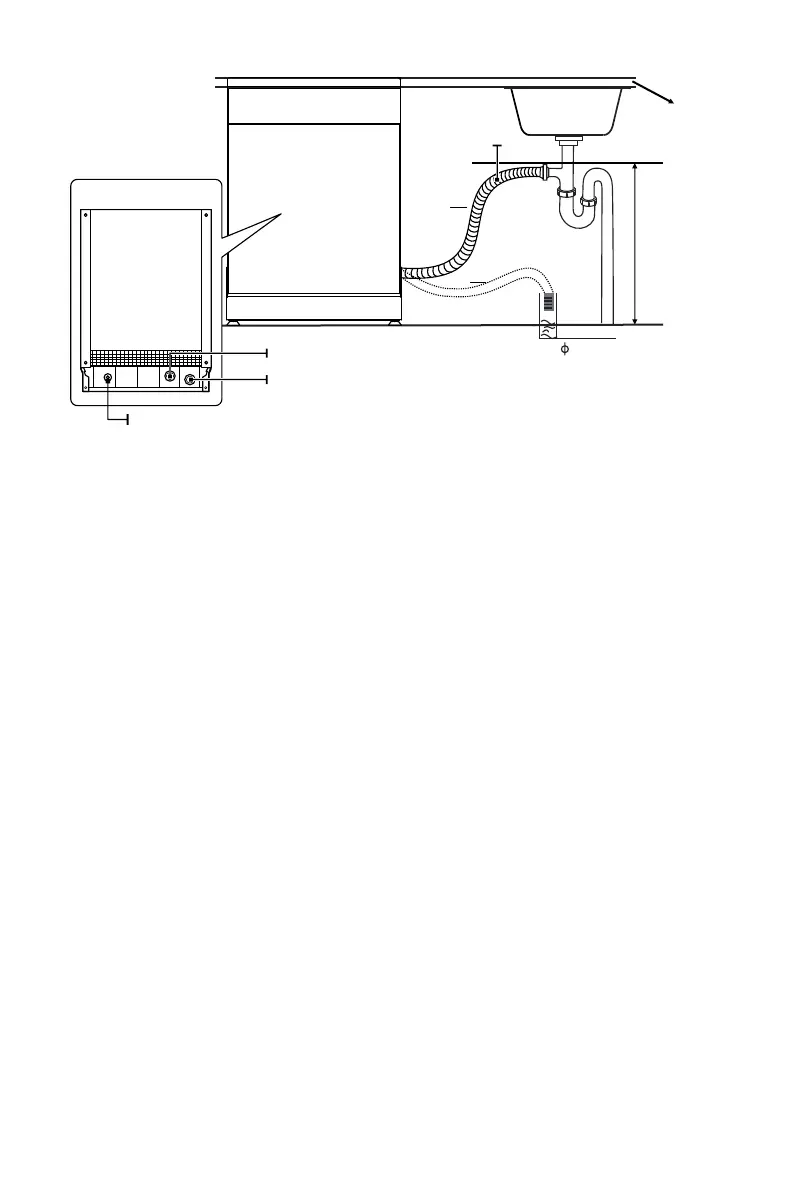

MAX 1000mm
Counter
Drain hose
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
How to drain excess water from hoses
If the sink is 1000mm higher from the floor, the excess water in hoses
cannot be drained directly into the sink. It will be necessary to drain excess
water from hoses into a bowl or suitable container that is held outside and
lower than the sink.
W
a
t
e
r ou
tl
et
Connect the water drain hose. The drain hose must be correctly fitted
to avoid water leaks. Ensure that the water drain hose is not kinked or
squashed.
Extens
ion hose
I
f y
o
u n
e
ed a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 meters; otherwise the cleaning eect of the
dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 100 cm (maximum) from
the bottom of the dishwasher. The water drain hose should be fixed.
Position The Appliance
Position the appliance in the desired location. The back should rest against
the wall behind it, and the sides, along the adjacent cabinets or walls. The
dishwasher is equipped with water supply and drain hoses that can be
positioned either to the right or the left sides to facilitate proper installation.
Drain Pipe
40mm
