Polaris 200 series

59
Drain
6" Max.
Above Drain
Mixing Valve
NOTE:
Follow the Mixing Valve
manufacturers instructions
when installing the
mixing valve.
Manual Shut Off
Valve (Typ)
Mixing
Valve
(160°F Max.)
NOTE:
Follow the Mixing Valve
manufacturers instructions
when installing the
mixing valve.

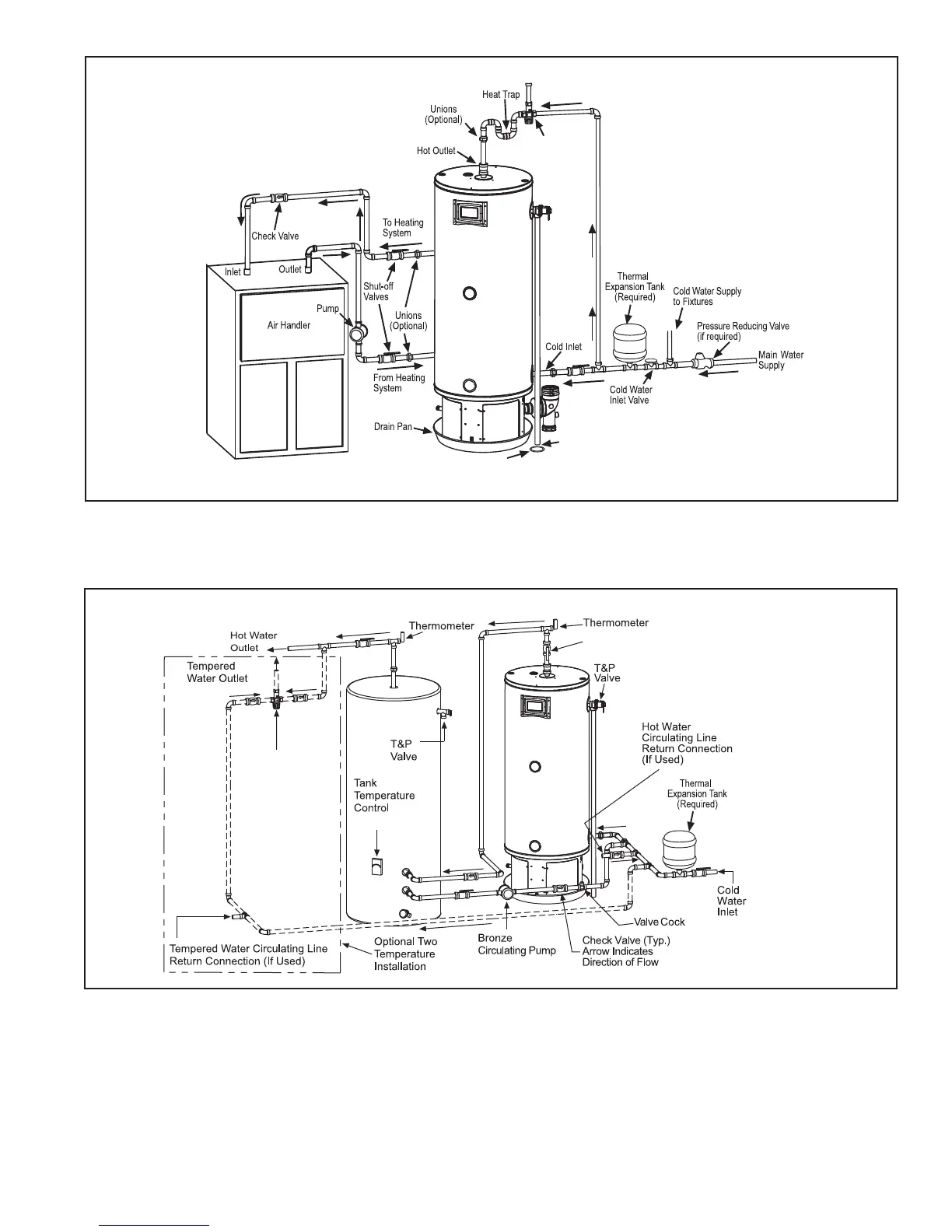

Figure 53: AIR HANDLER PIPING INSTALLATION (All Models)
Figure 54: POLARIS WITH AUXILLARY STORAGE TANK,
One or Two Temperature System (With or Without Building Recirculation)
