117
MAINTENANCE
Drive Chain Tension
Check drive chain tension weekly and before each long trip.
1. Remove the side panels.
2. Rotate the driven clutch
counter-clockwise to move
all chain slack to the
tensioner side. Lock the
brake lever lock, or have an
assistant hold the brake lever
firmly.

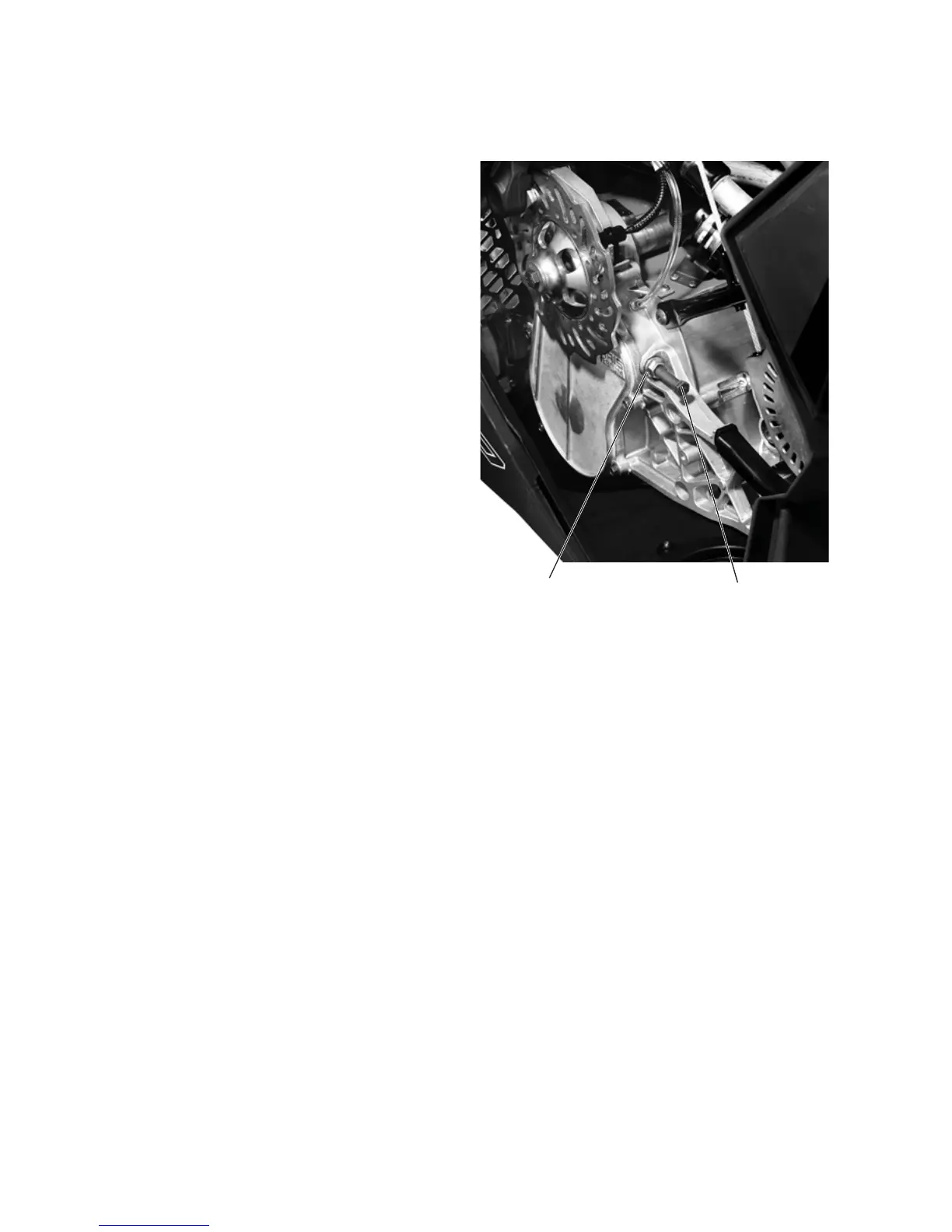

3. Loosen the adjuster bolt jam
nut.
4. Finger tighten the adjuster
bolt until it can no longer be
adjusted by hand, then back
off 1/4 turn.
5. Tighten the jam nut while
holding the adjuster bolt.
Torque to 21 ft. lbs. (28 Nm).
6. Reinstall the side panels.
7. Release the brake lever lock.
