137
MAINTENANCE
Battery (if equipped)
Battery Installation

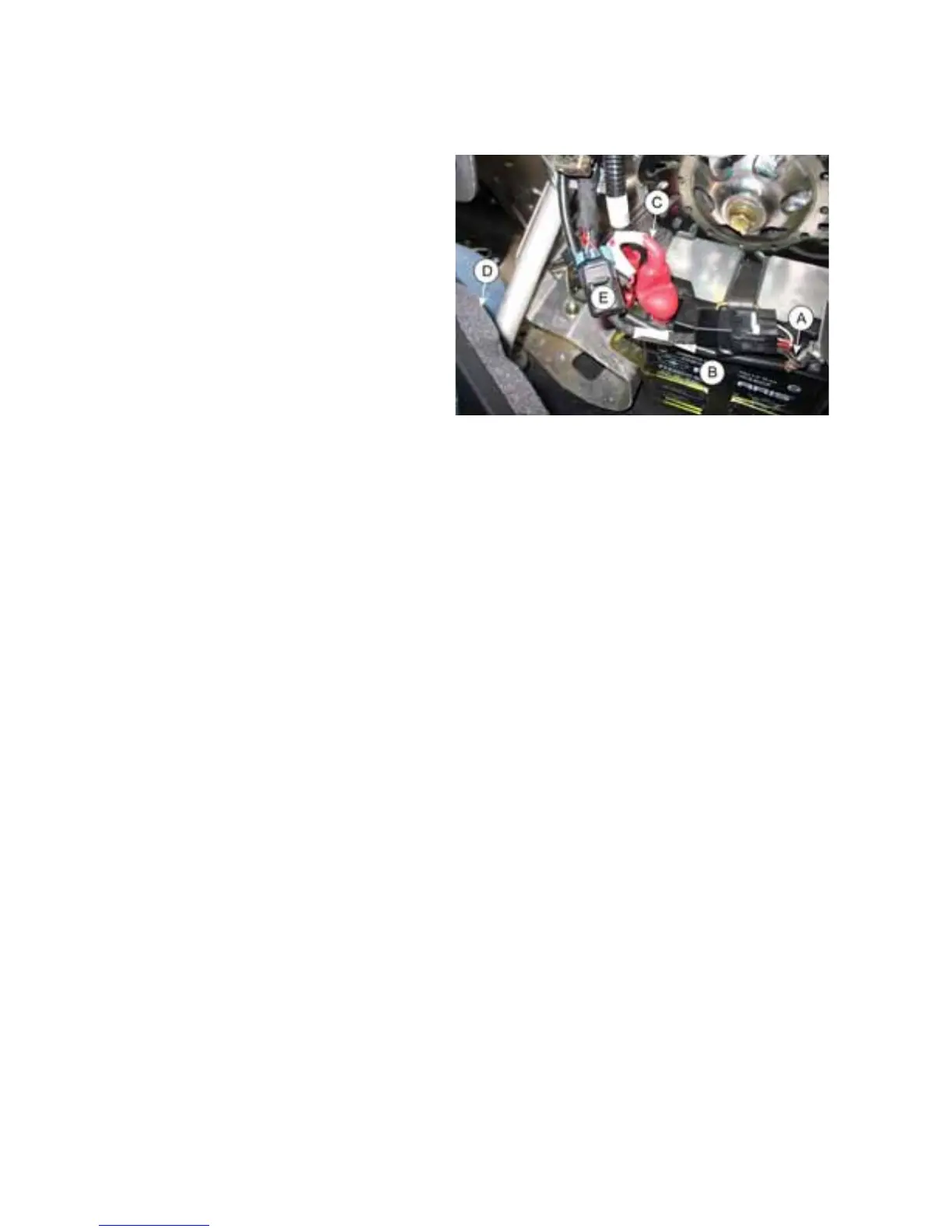

IMPORTANT: Route the
BROWN harness ground
wires (A) and BLACK main
battery ground cable (B) as
shown in the image. Both are
routed up and over the
rubber strap. If the ground
wires/cable are routed down
the side of the battery, they
may interfere with the rear
side panel tab. Note the
routing of the RED (positive)
battery cable (C) and that
the right fender (D) is pulled away from the chassis. Item (E) is the
constant power fuse connector.
7. Verify that cables are properly routed.
NOTICE: Ensure that the battery wires are routed in such a way that they
cannot come into contact with the brake disc.
8. Secure the right fender using the plastic rivet.
9. Reinstall the console using the two plastic rivets.
10. Reinstall the side panel.
