Polaris 800 RUSH 2011 - 600;800 Recoil;Stator Assembly

3.24
Engine/Cooling/Exhaust
600/800 Recoil/Stator Assembly

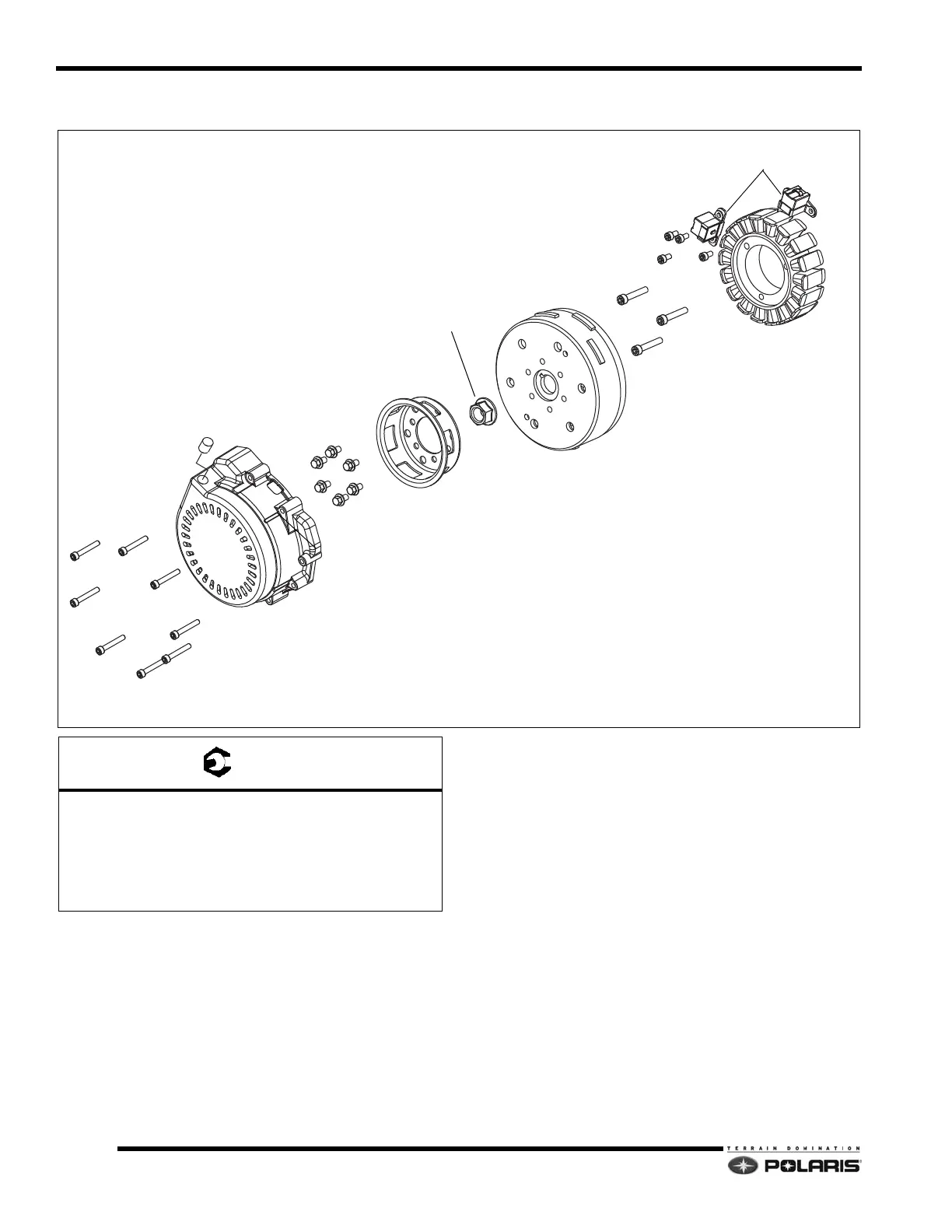

RECOIL HOUSING
HUB
FLYWHEEL
FLYWHEEL NUT
A
B
C
D
STATOR
TRIGGER COILS
A
= T
A: 9 ft-lbs (12 Nm)
B: 5 ft-lbs (7 Nm) (Trigger coil fasteners)
C: 90 ft-lbs (122 Nm) - Apply Loctite® 242™ (Do not
u
se an impact wrench to remove or install flywheel
nut.)
D: 12 ft-lbs (16 Nm) - Apply Loctite® 242™
