Polaris 800 RUSH 2011 - Fuel Tank;Pump Service; 2010 Fuel Tank;Pump Assembly

4.28
Cleanfire Fuel Injection
FUEL TANK/PUMP SERVICE
2010 Fuel Tank/Pump Assembly
SERVICE PARTS:
• Fuel Pump Assembly - 2520951
• Pickup/Sock Assembly (w/clamps and cable ties) -
220
4376
• PFA Gasket - 5413063

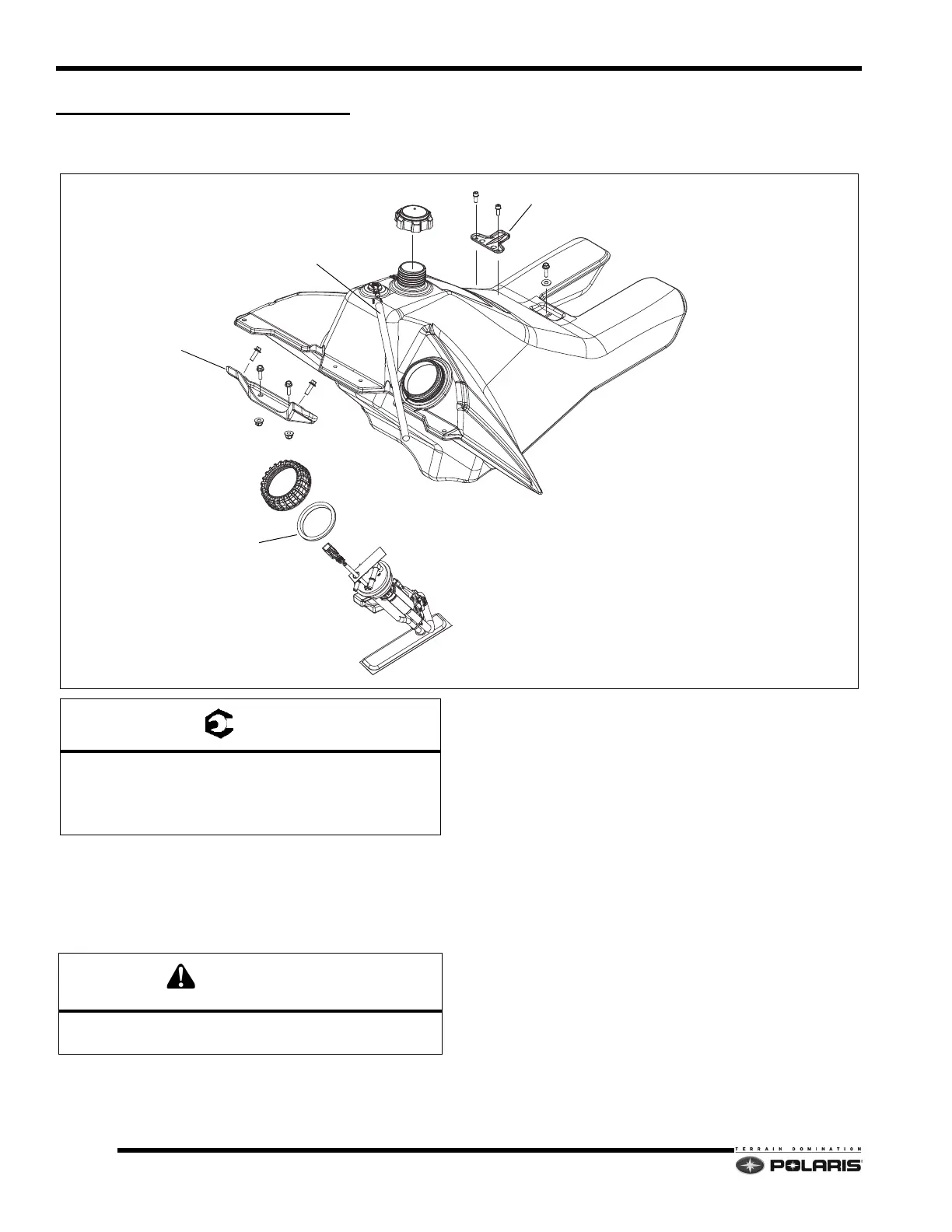

FUEL TANK
A
PFA GASKET
PFA NUT
CAP
VENT/VAC HOSE
SEAT MOUNT BRACKET
FUEL TANK BRACKET
PUMP ASSEMBLY
C
D
D
D
B
= T
A: 10 ft-lbs (14 Nm)
B: 6 ft-lbs (8 Nm)
C: 28 ft-lbs (38 Nm)
D: 7 ft-lbs (10 Nm)
CAUTION
ALWAYS REPLACE PFA GASKET WITH NEW
GASKET AFTER REMOVING FUEL PUMP.
