5.15
Final Drive/Brake System
5

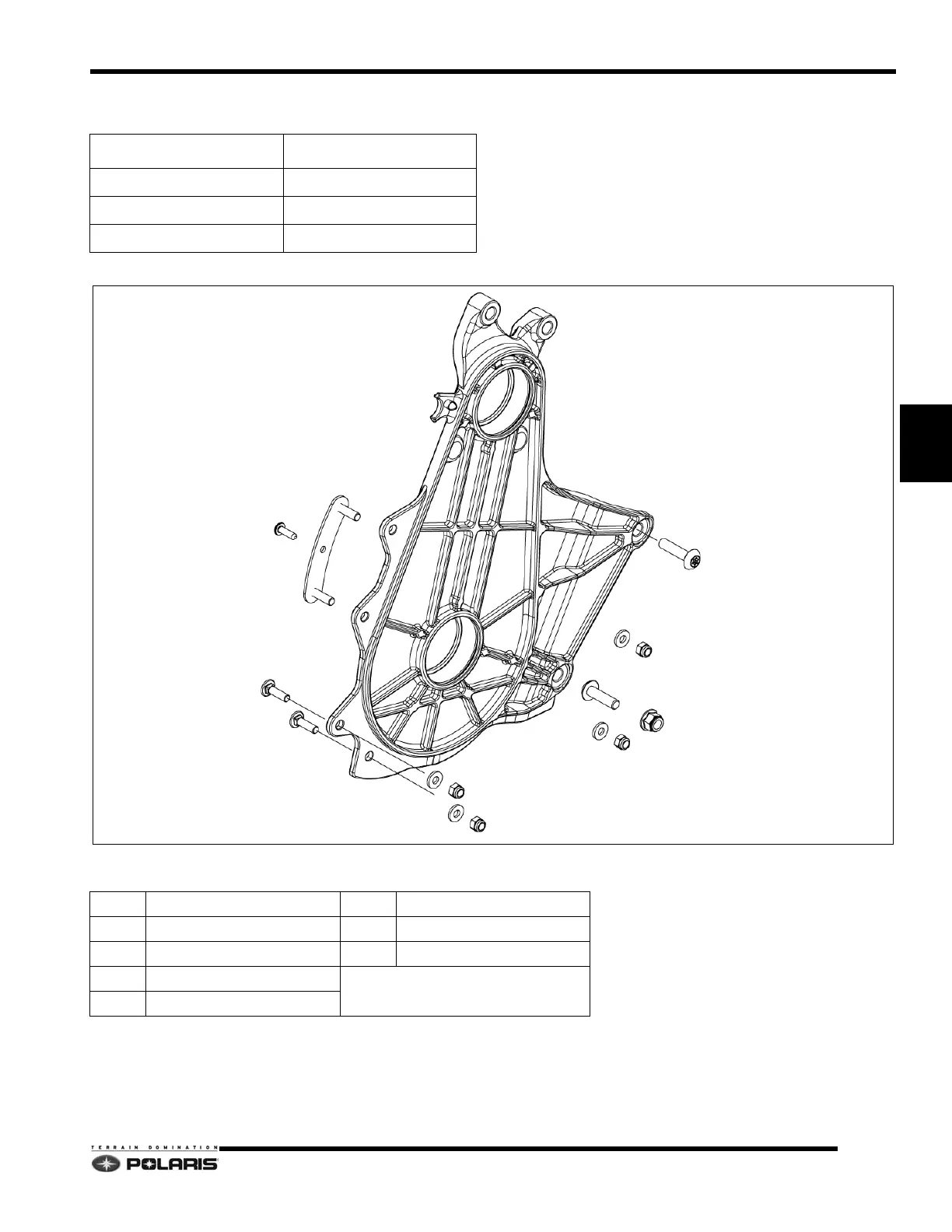

QuickDrive™ Backer Plate Assembly View
COMPONENT TORQUE
Screw (M8 1.25x35) 26 ft-lbs (35 Nm)
Screw (M8 1.25x30) 26 ft-lbs (35 Nm)
Screws (M6 1.0x22) 9 ft-lbs (12 Nm)
QuickDrive™ Backer Plate Assembly
1. Backer Plate 6. Washers
2. Stud Plate 7. Nuts (M6)
3. Screw (M8 1.25x35) 8. Nut (M8)
4. Screw (M8 1.25x30)
5. Screws (M6 1.0x22)
1
2
3
4
5
6
6
6
7
7
7
8
