Polaris 800 RUSH 2011 - Driveshaft;Jackshaft; Specifications;Torque Guide; Assembly View

5.18
Final Drive/Brake System
DRIVESHAFT/JACKSHAFT
Specifications/Torque Guide

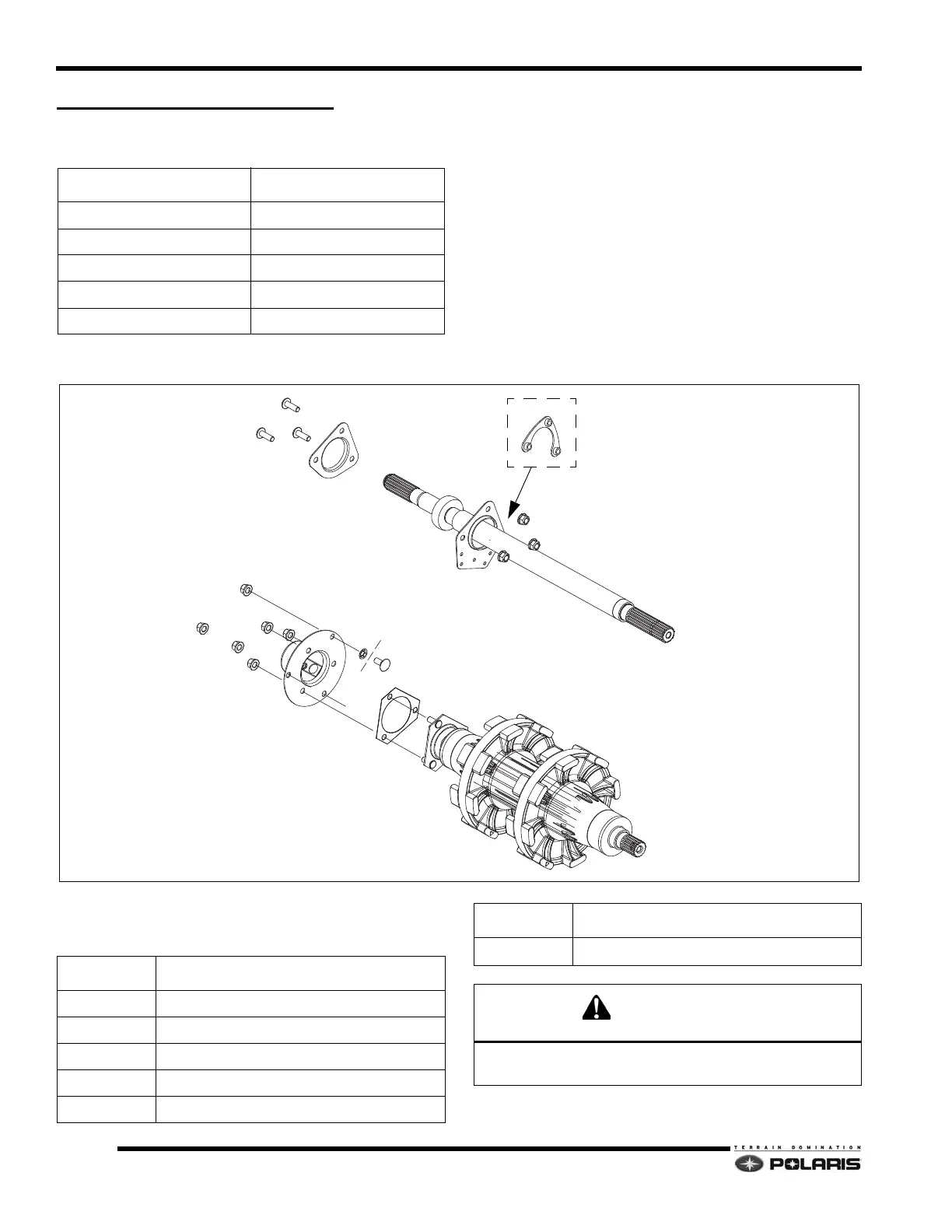

Assembly View
NOTE: The PTO ends of the jackshaft/driveshaft
feature sealed bearings. No grease required.
COMPONENT TORQUE
Jackshaft Flange Nuts 18 ft-lbs (25 Nm)
Speedometer Flange Nuts 18 ft-lbs (25 Nm)
Driveshaft Flange Nuts 18 ft-lbs (25 Nm)
Driven Clutch Fastener 18 ft-lbs 25 Nm)
Speed Sensor Screw 18 ft-lbs 25 Nm)
1
2
3
4
5
6
NUT PLATE-2011-CURRENT
REFERENCE # DESCRIPTION
1 Flangette
2 Jackshaft
3 Driveshaft
4 Gasket
5 Speedometer Housing
6 Nut Pals
CAUTION
Do not re-use lock Nuts. Always replace with new parts
after removal.
REFERENCE # DESCRIPTION
