Polaris 800 RUSH 2011 - Rmk 144;Switchback Assault Rail Fastener Locations

8.62
Steering and Suspensions
RMK 144/Switchback Assault Rail Fastener
Locations

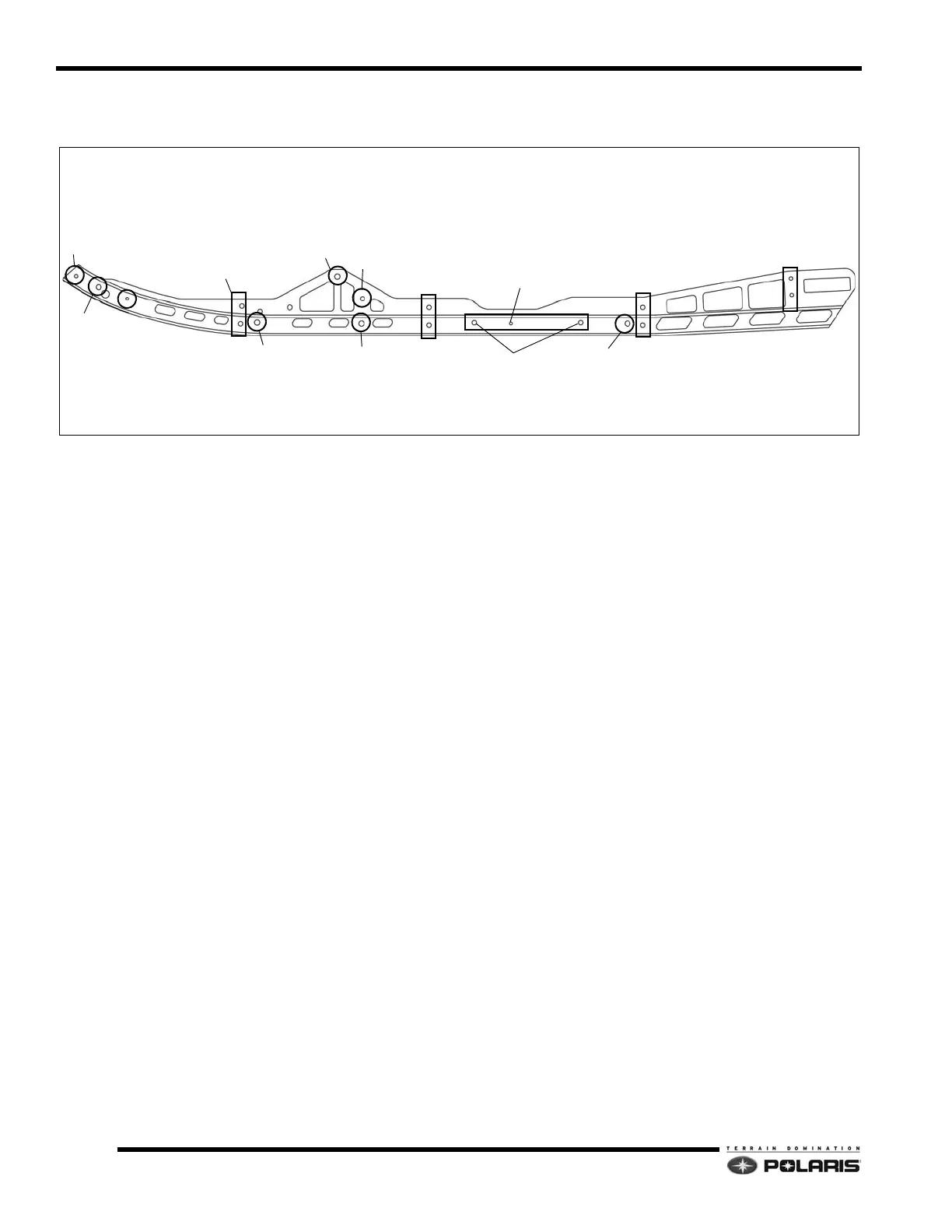

Components/Fasteners:
• A - Rail Tip
• B - Limiter Strap Shaft
• C - Rail Bumper
• D - Bogie Wheel Asm. (Mount to outside of rail).
• E - Front Shock Shaft
• F - Front Torque Arm Shaft/Screw
• G - Torsion Spring Guide
• H - Rear Track Shock Front Pivot Shaft
• I - Bogie Wheel Asm. (Mount to inside of rail).
• J - Rail Brace Asm. (Switchback Assault Only -
Mou
nt to outside of rail).
• K - Rear Pivot Shaft
• L - Bogie Wheel Asm. (Mount to outside of rail).
• M - Rear Idler Adjuster Block
• N - Rail Bumper (RMK 144 Only)
A
B
C
D
E
F
G
H
K
M
J
L
I
LEFT RAIL SHOWN
N
