103
MAINTENANCE AND LUBRICATION
Lights
Lower Headlig h t L amp Replacement

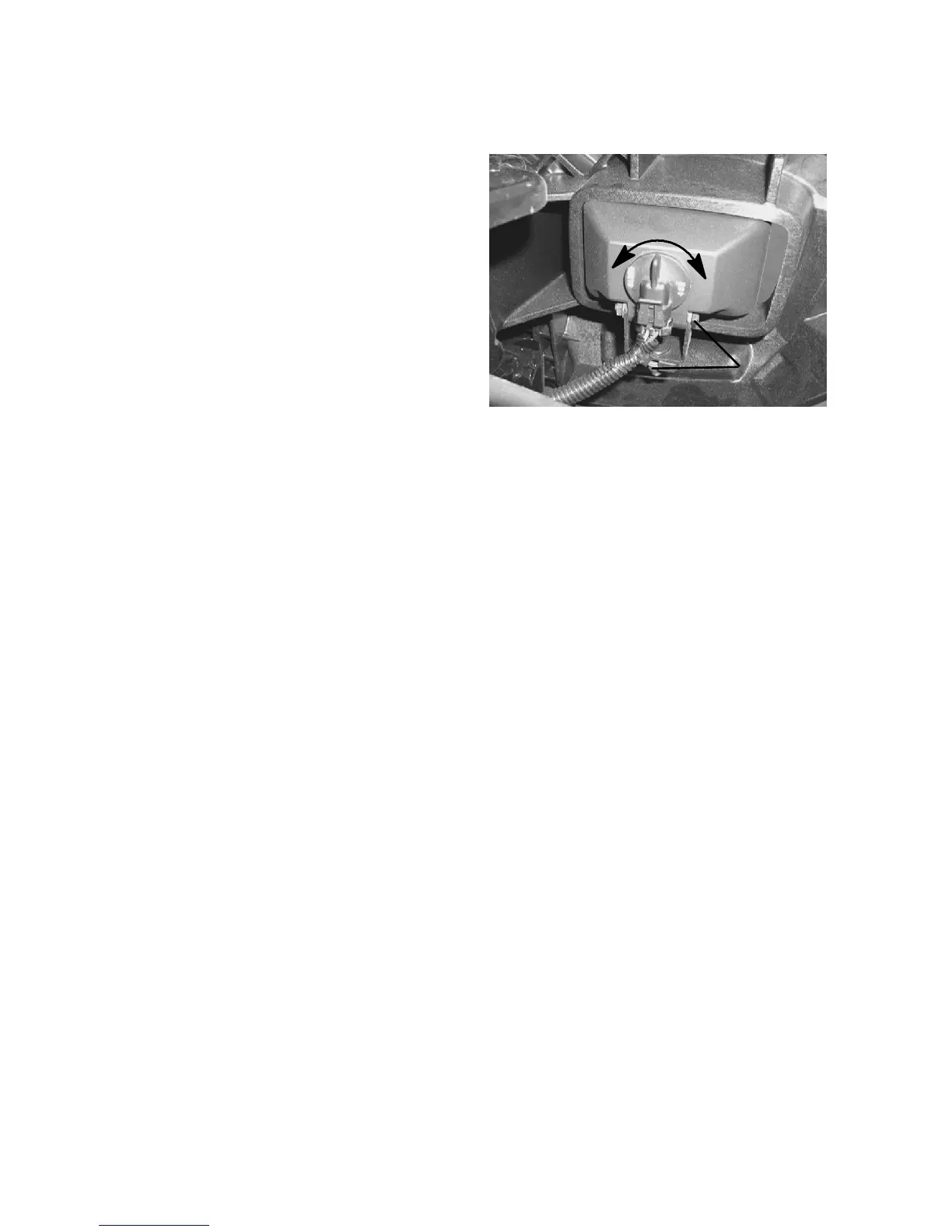

1. Turn the back of the
headlight harness i n a
counter-clockwise
direction to loosen (A).
2. Pull the harness assembly
out from the headlight
assembly.
3. Remove the headlamp and
replace with a new
headlamp.
4. Instal l the new headlamp
and harness assembly into the headlight assembly. Turn the
headlight harness clockwise (B) to secure.
Lower Headlight Adjustment
1. Loosen the nuts(C) that secure the lower headlamps. Adjust the
headlamps as needed.
2. Tighten the nuts on the headlamps after adjustment is made.
Taillight/Brakelight L amp Replacement
If the taillight/brakelight does not work, the lamp may need to be
replaced.
1. Remove the t wo screws securing the lens assembly.
2. Pivot the assembly outward.
3. Turn the housing clockwise and remove the bulb.
4. Apply dielectric grease to the socket and install a new bulb.
5. Reinstall the taillight assembly.
A
B
C
