MAINTENANCE AND LUBRICATION
Engine Cooling System
Coolant Level (ATP 500)

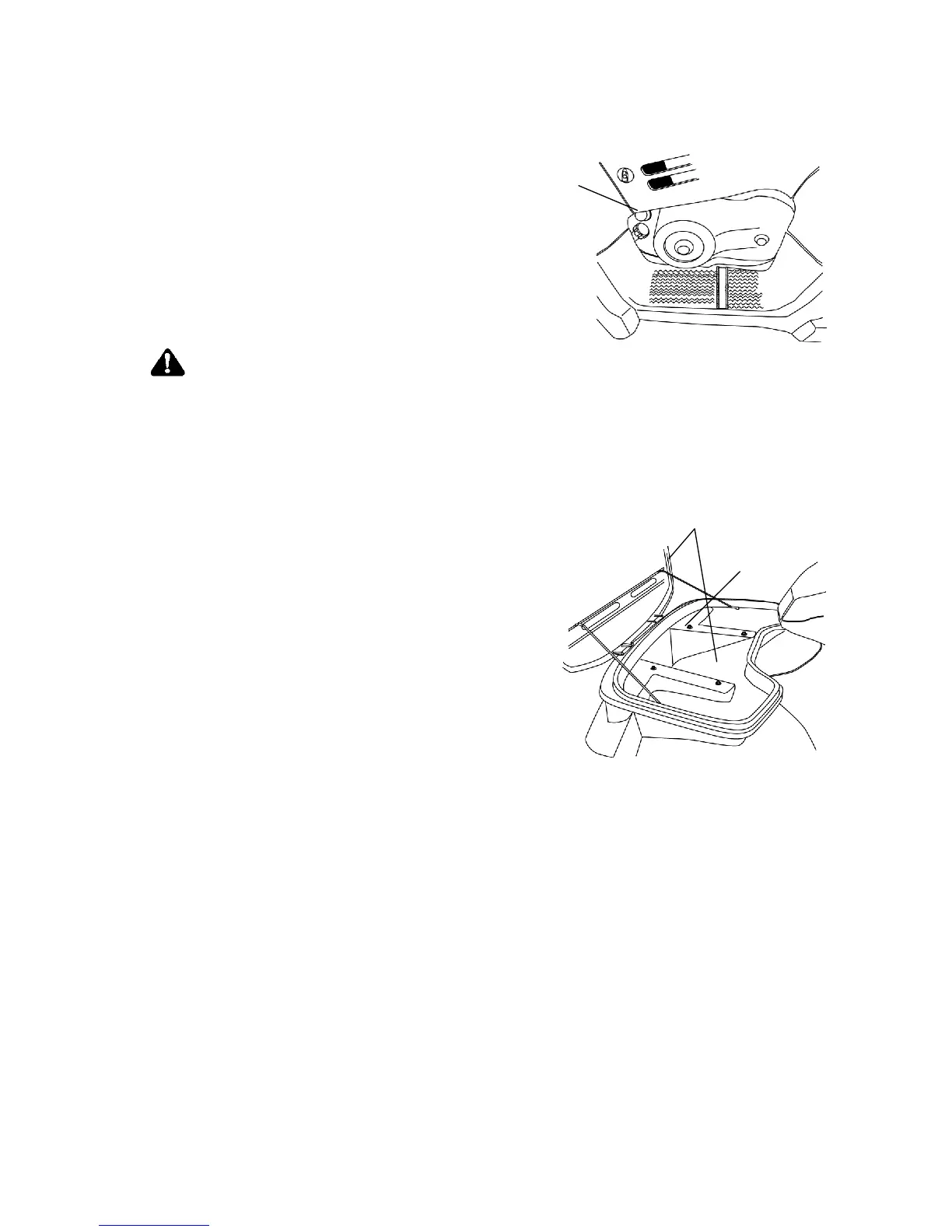

The recovery bottle (1) is located on the
left side of the machine. To access the
recovery bottle, remove the left side panel.
Seepage97.
Maintain the coolant level between the
minimum and maximum m arks on the
bottle (when the fluid is cool).
WARNING
Escaping steam can cause severe burns. Never remove the
pressure cap while the engine is warm or hot. Always allow the
engine to cool before removing the pressure cap.
Radiator Coolant Level (ATP 500)
Checking the radiator coolant level is
required only i f the cooling system
has been drained for maintenance
and/or repair. However, if the
recovery bottle has run dry, the level
in the radiator should also be
inspected. Add coolant if necessary.
1. Using the tool provided, remove
the four screws securing the front
compartment (1). Remove the
front cover (2) by placing your
fingers under the front of the cover
and pulling upward.
2. Remove the pressure cap.
3. Using a funnel, slowly add coolant as necessary through the
radiator filler neck.
4. Replace the pressure cap and secure the front cover.
NOTE: Use of a non-standard pressure cap will not allow the
recovery system to function properly. Contact your dealer for
the correct replacement part.
