46
FEATURES AND CONTRO LS

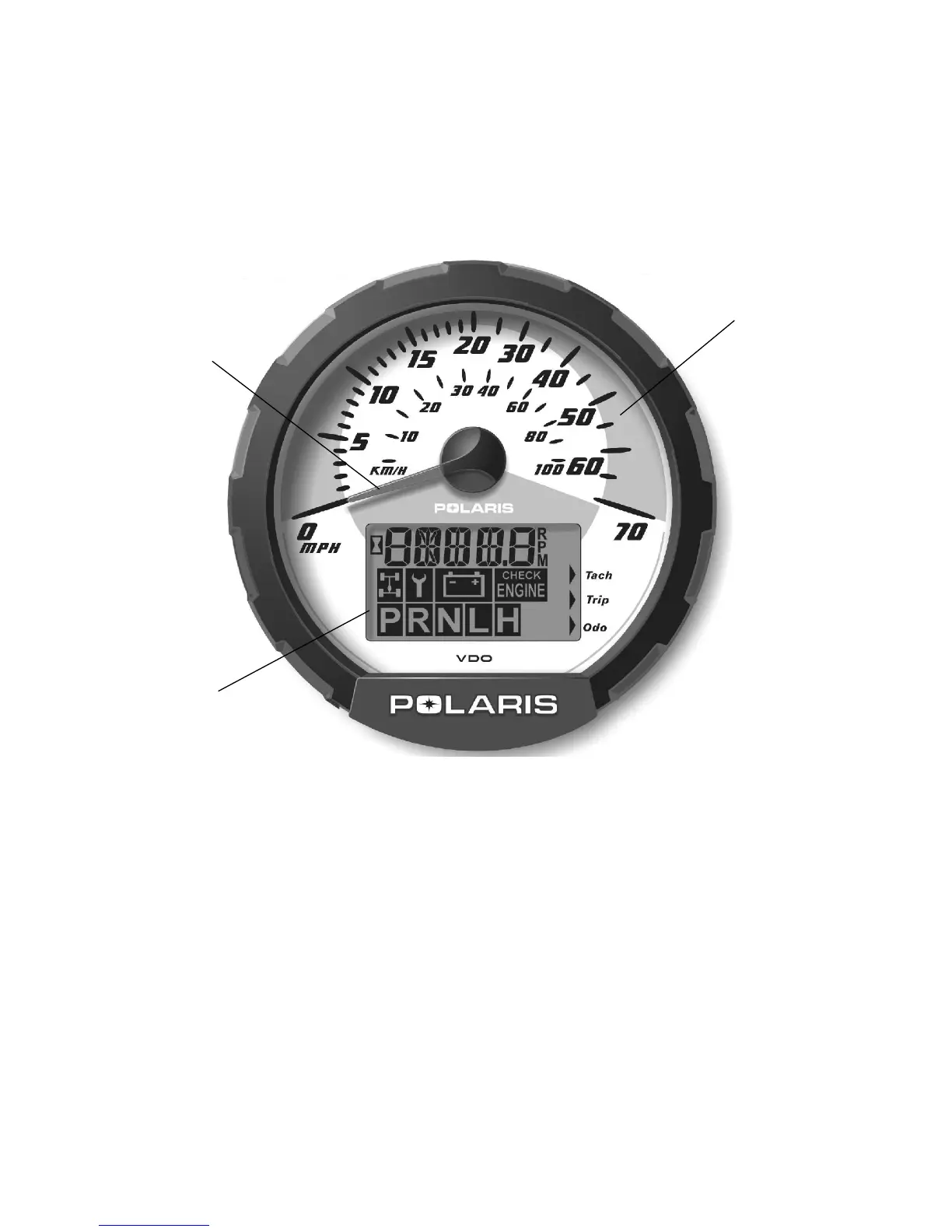

Instrument Cluster
Your ATV is equipped with an instrument cluster that senses vehicle
speed from the right front wheel. The instrument cluster measures
distance in miles as well as hours of operation. It also includes a
reverse speed limiter function that limits the ATV’s speed to
approximately 7-9 mph. R efer to page 33 for additional i nformation.
1. Rider Information Center
2. Speedometer needle - in addition to showing vehicle speed, the
needle flashes when a warning condition exists.
3. Speedometer
CAUTION
To prevent damage, wash the ATV by hand or with a garden hose
using mild soap. Do not use alcohol to clean the instrument
cluster. Immediately clean off any gasoline that splashes on the
instrument cluster.
2
3
1
