5 - 77 ELECTRICAL
GEM Service Manual November 2007

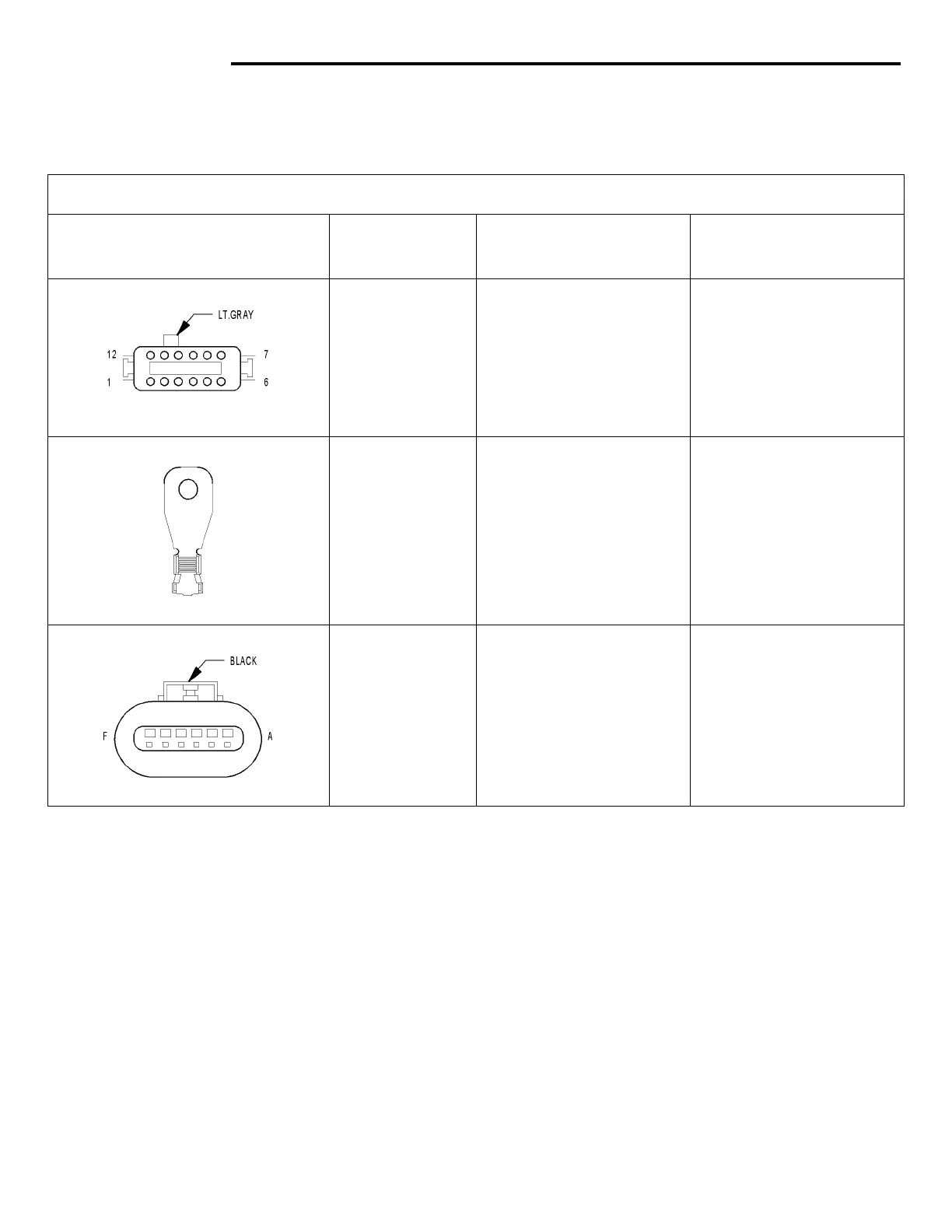

PIN LOCATIONS FOR CONVERTER HARNESS CONNECTORS
Connector Illustration
Connector
Number
Connects To
Number of Pins in
Connector
1
DC/DC
Converter
12
2,3
72 Volt Ground,
12 Volt Ground
1
4
PSDM J4
6
