5 - 83 ELECTRICAL
GEM Service Manual
November 2007

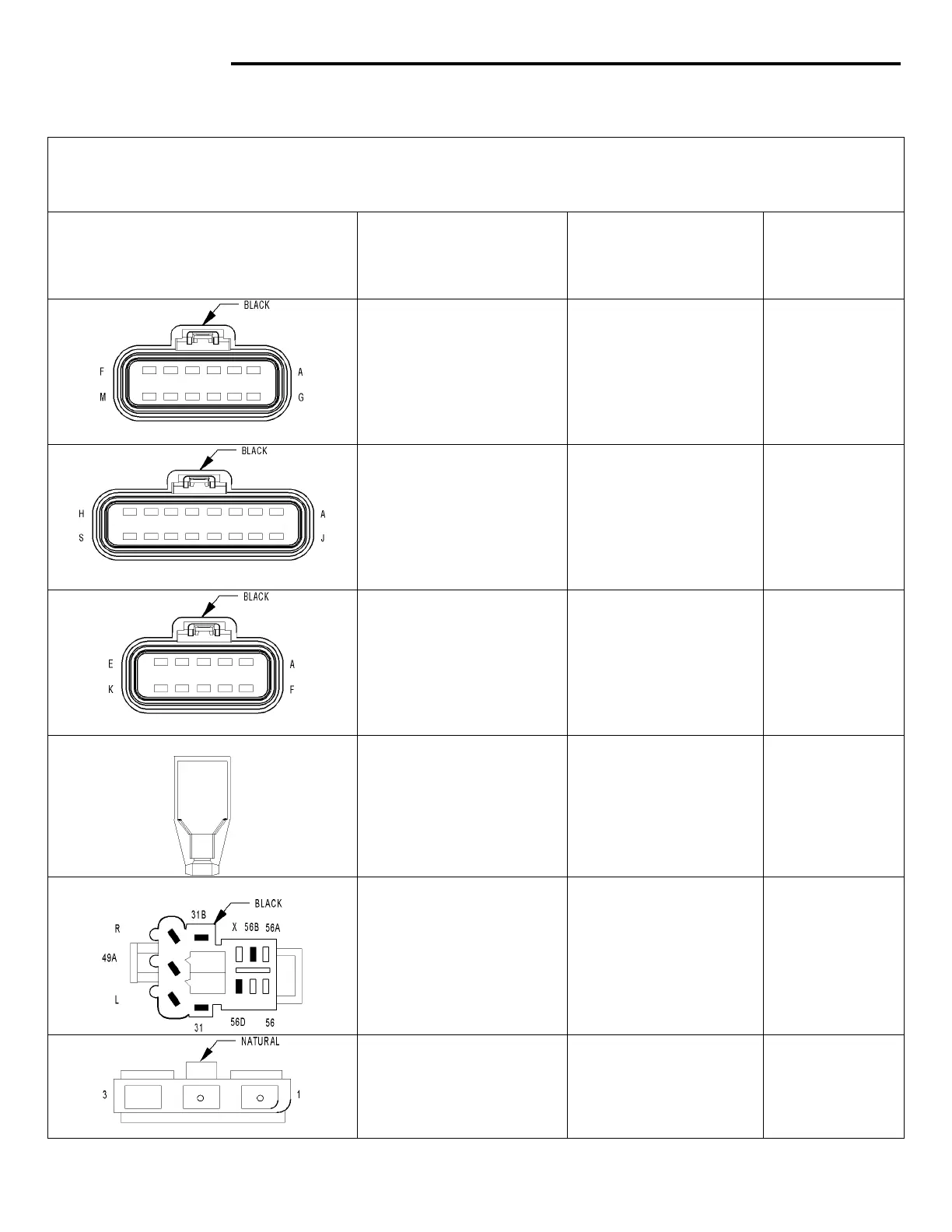

PIN LOCATIONS FOR IP HAR
NESS CONNECTORS
Connector Illustration
Connector Number
Connects To
Number of
Pins in
Connector
1,3
Display D2,
PSDM J2
12
2
PSDM J3
16
4
Display D1
10
5,6,9,10,11,12,13,14
Switch-Drive Mode,
Switch-Trip Odometer,
Switch-Light
1
7
Switch-Multifunction
10
8
Switch-Key
3
