ENGINE

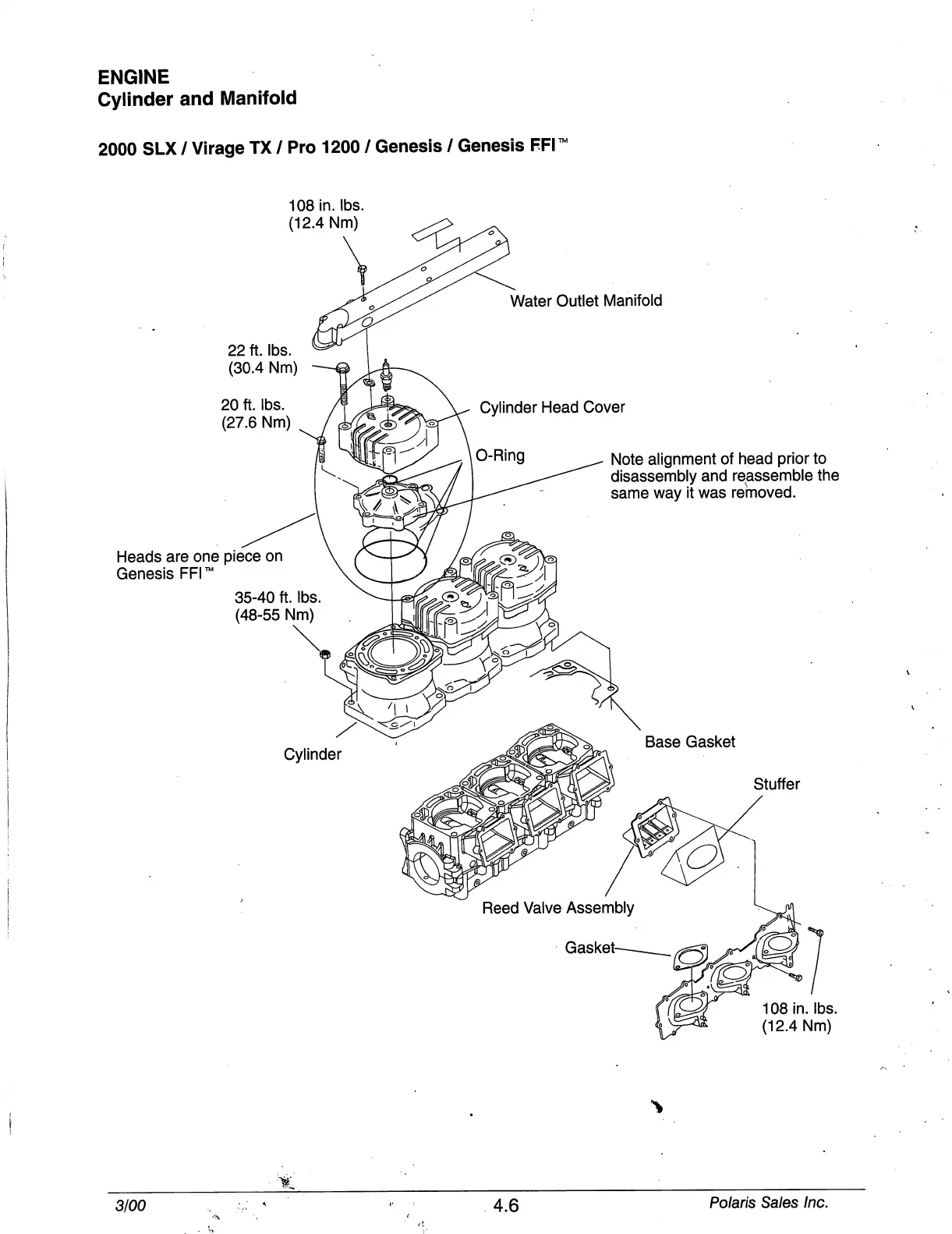

Cylinder and Manifold
2000 SLX / Virage TX / Pro 1200 / Genesis / Genesis FFI1
108 in. lbs
(12.4 Nm)
Water Outlet Manifold
22 ft. lbs.
(30.4 Nm)
20 ft. lbs.
(27.6 Nm)
Cylinder Head Cover
Note alignment of head prior to
disassembly and reassemble the
same way it was removed.
Heads are one piece on
Genesis FFI ™
35-40 ft. lbs
(48-55 Nm)
Cylinder
Stuffer
Reed Valve Assembly
Gasket-
108 in. lbs.
(12.4 Nm)
3/00
4.6
