FINAL DRIVE/JET PUMP/BILGE SYSTEM

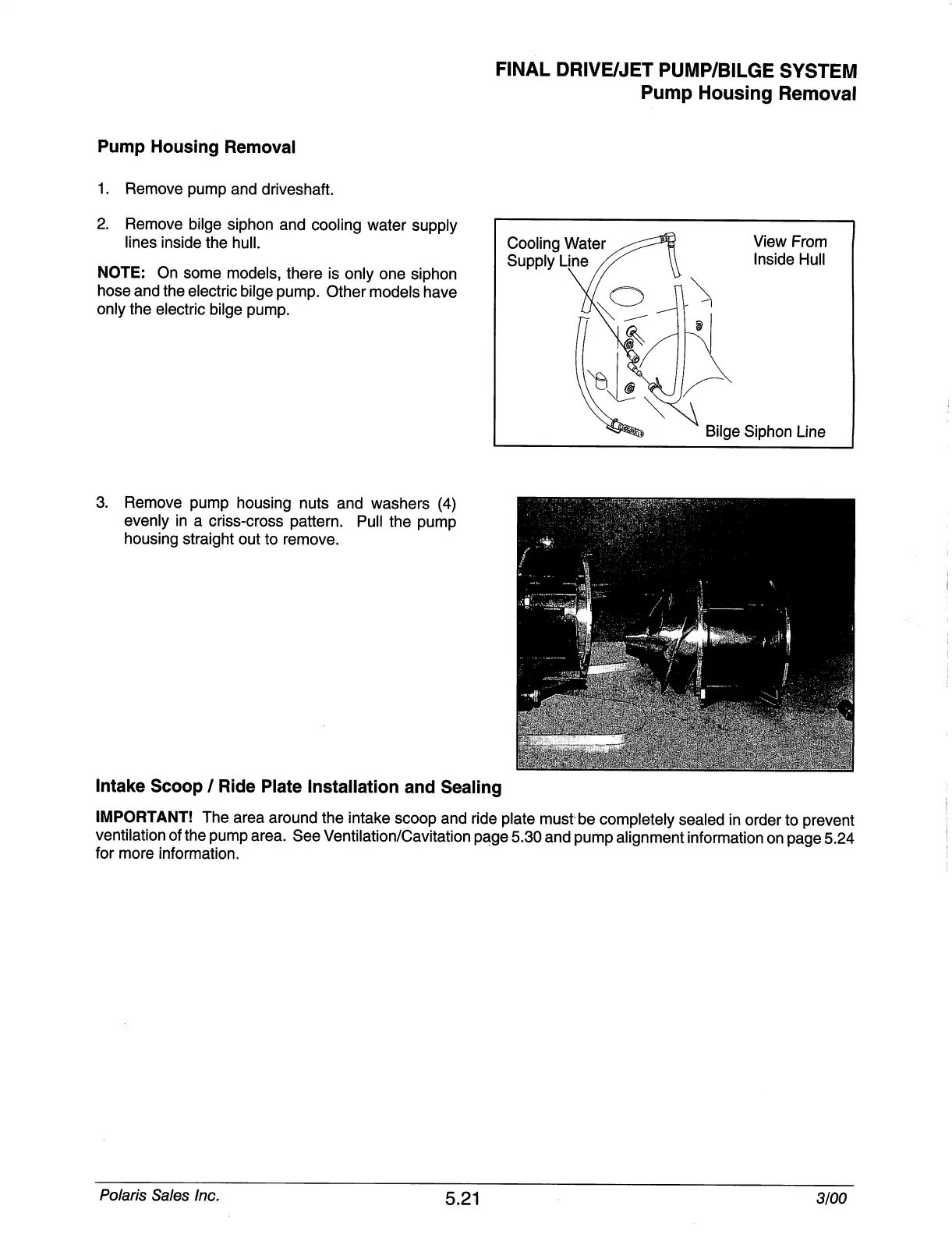

Pump Housing Removal
Pump Housing Removal
1. Remove pump and driveshaft.
2. Remove bilge siphon and cooling water supply
lines inside the hull.
NOTE: On some models, there is only one siphon
hose and the electric bilge pump. Other models have
only the electric bilge pump.
Cooling Water
Supply Line
View From
Inside Hull
Bilge Siphon Line
3. Remove pump housing nuts and washers (4)
evenly in a criss-cross pattern. Pull the pump
housing straight out to remove.
Intake Scoop / Ride Plate Installation and Sealing
IMPORTANT! The area around the intake scoop and ride plate must be completely sealed in order to prevent
ventilation of the pump area. See Ventilation/Cavitation page 5.30 and pump alignment information on page 5.24
for more information.
