Polaris Genesis 2000

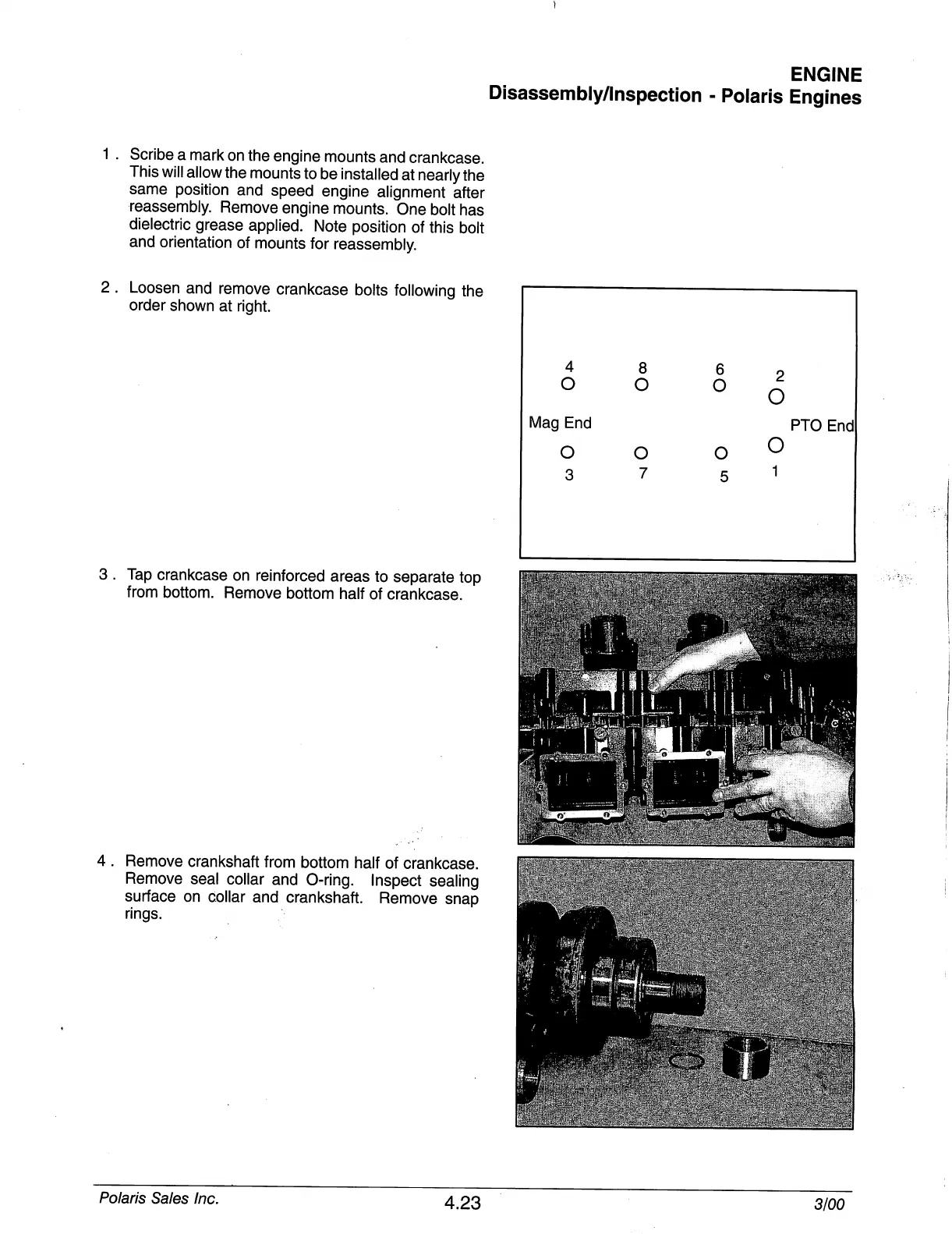

ENGINE
Disassembly/Inspection - Polaris Engines
1 . Scribe a mark on the engine mounts and crankcase.
This will allow the mounts to be installed at nearly the
same position and speed engine alignment after
reassembly. Remove engine mounts. One bolt has
dielectric grease applied. Note position of this bolt
and orientation of mounts for reassembly.
Loosen and remove crankcase bolts following the
order shown at right.
Tap crankcase on reinforced areas to separate top
from bottom. Remove bottom half of crankcase.
Remove crankshaft from bottom half of crankcase.
Remove seal collar and O-ring. Inspect sealing
surface on collar and crankshaft. Remove snap
rings.
Polaris Sales Inc.
4.23
3/00
