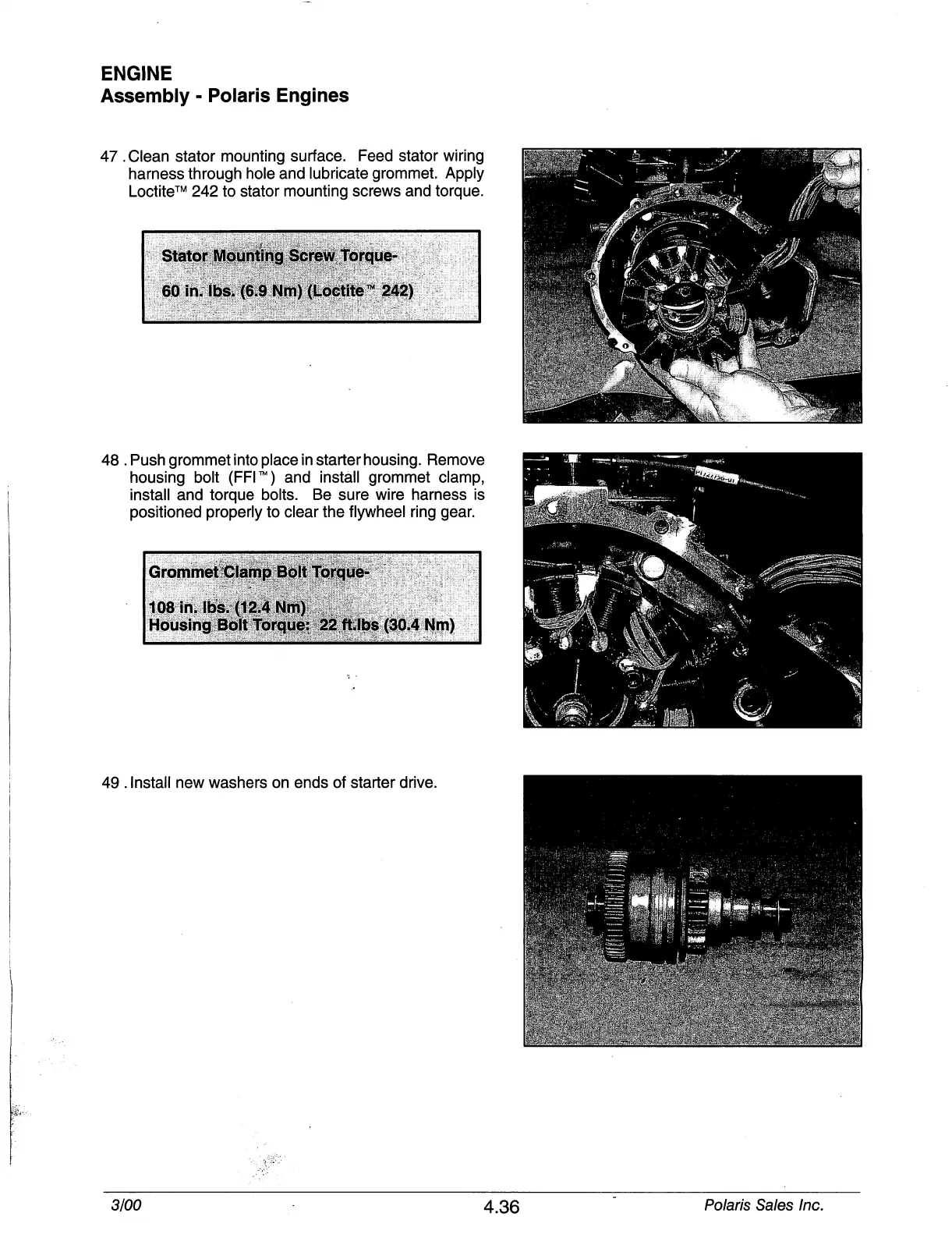

47 .Clean stator mounting surface. Feed stator wiring
harness through hole and lubricate grommet. Apply
Loctite™ 242 to stator mounting screws and torque.
Stator Mounting Screw Torque-
60 in. lbs. (6.9 Nm) (Loctite^ 242)
48 .Push grommet into place in starter housing. Remove
housing bolt (FFI™) and install grommet clamp,
install and torque bolts. Be sure wire harness is
positioned properly to clear the flywheel ring gear.
Grommet Clamp Bolt Torque-
108in. Ibs;<j2$ JJfifj&x
Housing Bolt Torque: 22 ft.lbs (30.4 Nm)
49 . Install new washers on ends of starter drive.
