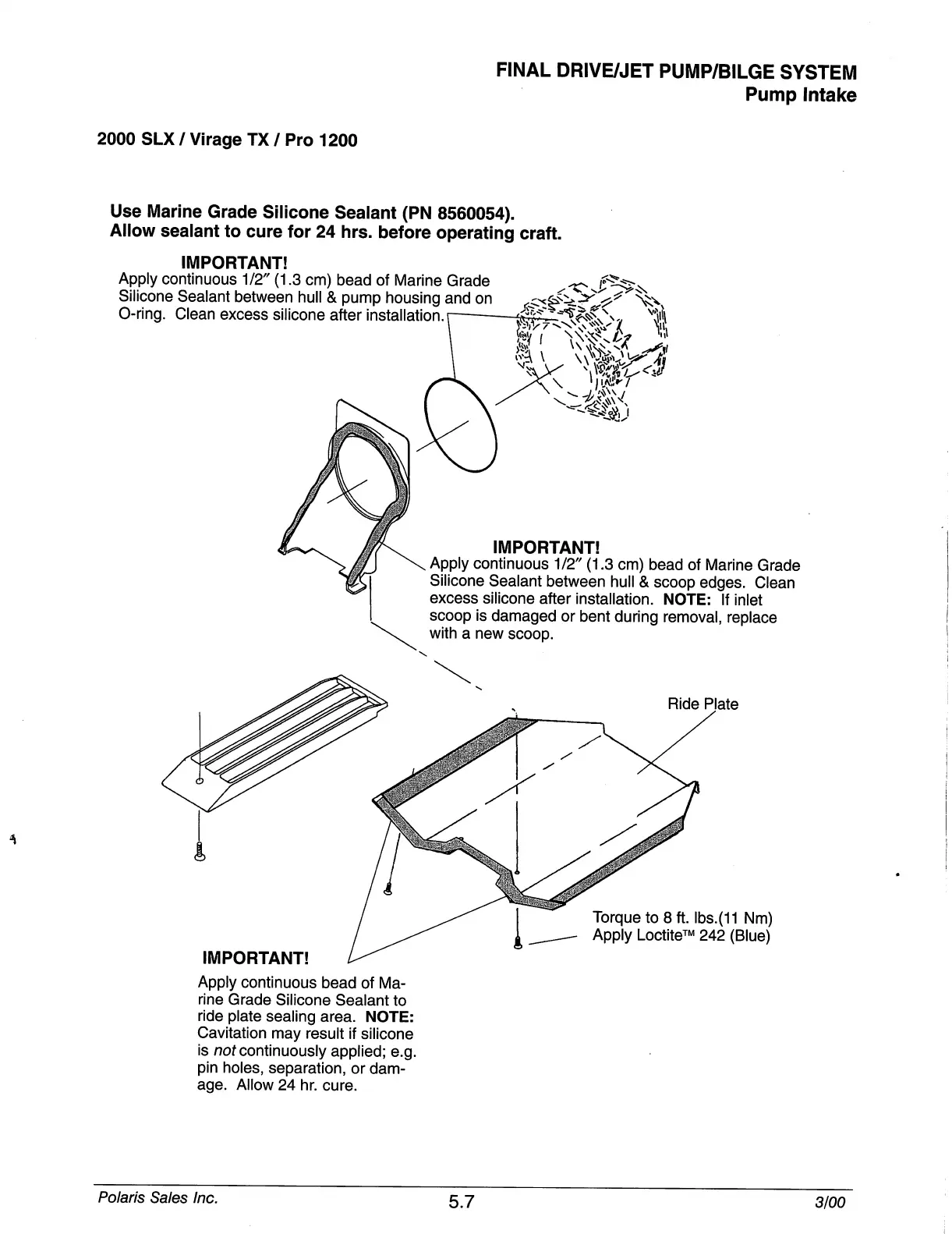

Polaris Genesis 2000

FINAL DRIVE/JET PUMP/BILGE SYSTEM
Pump Intake
2000 SLX / Virage TX / Pro 1200
Use Marine Grade Silicone Sealant (PN 8560054).
Allow sealant to cure for 24 hrs. before operating craft.
IMPORTANT!
Apply continuous 1/2" (1.3 cm) bead of Marine Grade
Silicone Sealant between hull & pump housing and on
O-ring. Clean excess silicone after installation.!
IMPORTANT!
. Apply continuous 1/2" (1.3 cm) bead of Marine Grade
Silicone Sealant between hull & scoop edges. Clean
excess silicone after installation. NOTE: If inlet
scoop is damaged or bent during removal, replace
with a new scoop.
Ride Plate
Torque to 8 ft. lbs.(11 Nm)
Apply Loctite™ 242 (Blue)
IMPORTANT!
Apply continuous bead of Ma
rine Grade Silicone Sealant to
ride plate sealing area. NOTE:
Cavitation may result if silicone
is not continuously applied; e.g.
pin holes, separation, or dam
age. Allow 24 hr. cure.
Polaris Sales Inc.
5.7 3/00
