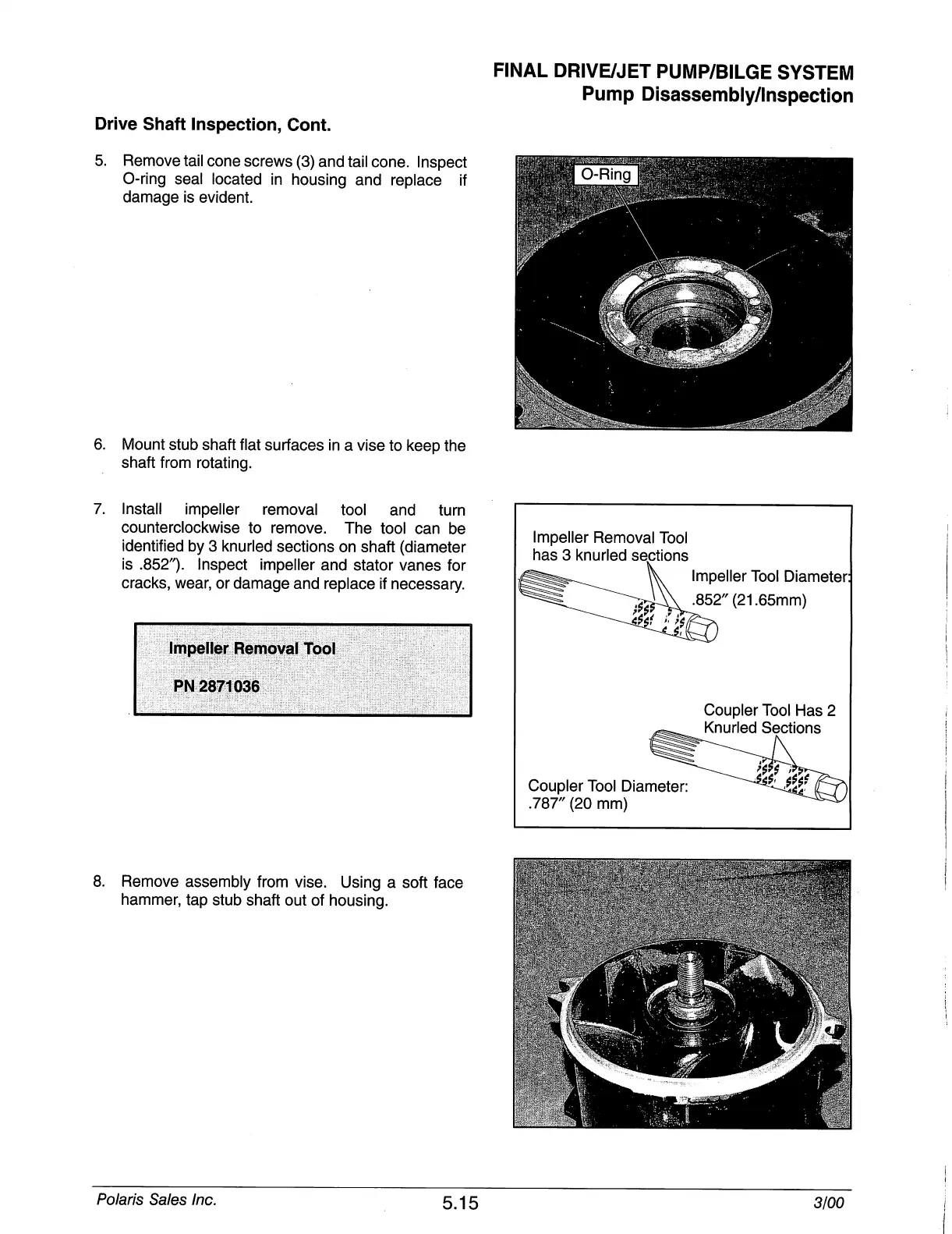

Polaris Genesis 2000

Drive Shaft Inspection, Cont.
5. Remove tail cone screws (3) and tail cone. Inspect
O-ring seal located in housing and replace if
damage is evident.
6. Mount stub shaft flat surfaces in a vise to keep the
shaft from rotating.
FINAL DRIVE/JET PUMP/BILGE SYSTEM
Pump Disassembly/Inspection
7. Install impeller removal tool and turn
counterclockwise to remove. The tool can be
identified by 3 knurled sections on shaft (diameter
is .852"). Inspect impeller and stator vanes for
cracks, wear, or damage and replace if necessary.
Impeller Removal Tool
PN 2871036
Impeller Removal Tool
has 3 knurled sections
Impeller Tool Diameter
.852" (21.65mm)
Coupler Tool Has 2
Knurled Sections
Coupler Tool Diameter:
.787" (20 mm)
8. Remove assembly from vise. Using a soft face
hammer, tap stub shaft out of housing.
Polaris Sales Inc.
5.15
3/00
