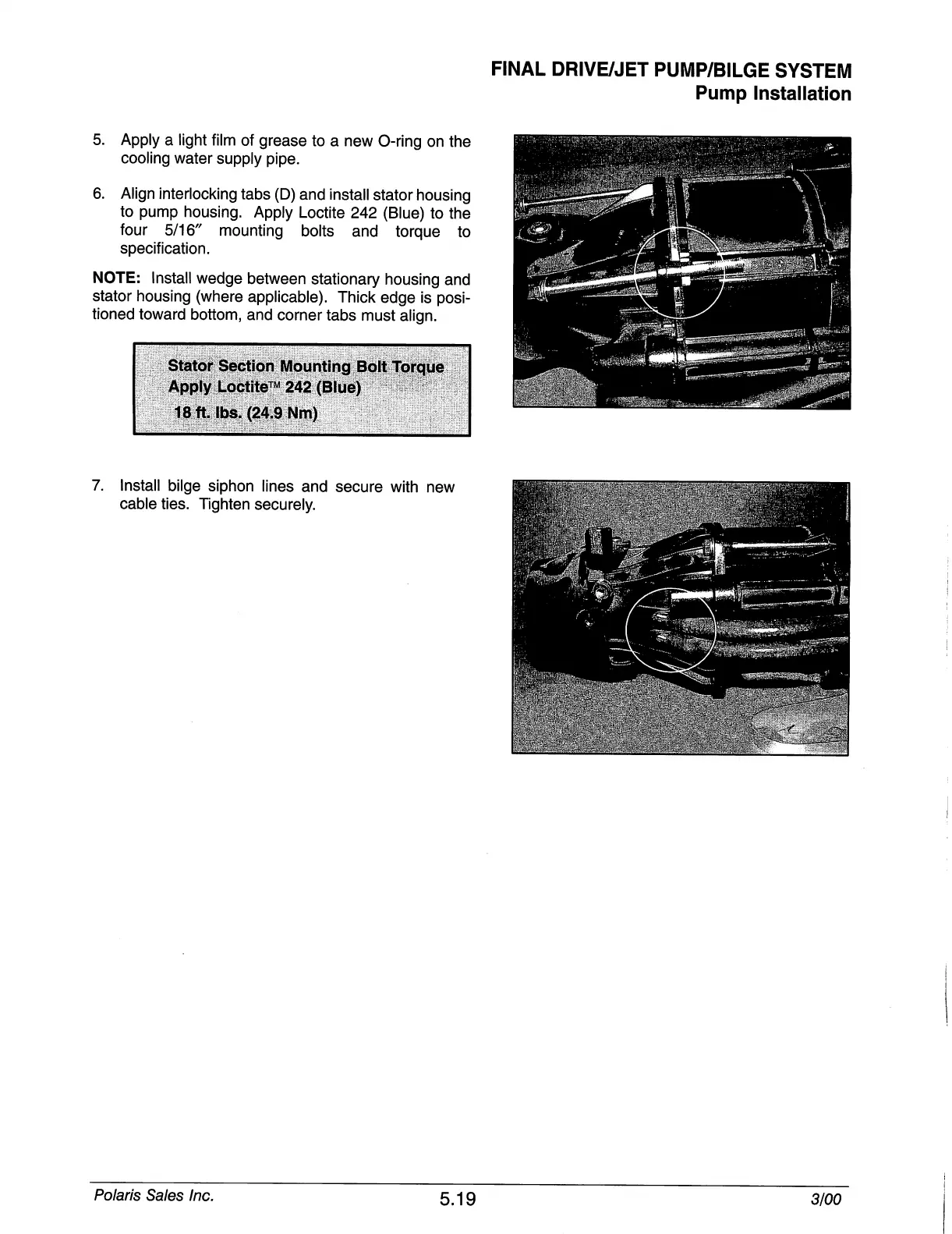

Polaris Genesis 2000

FINAL DRIVE/JET PUMP/BILGE SYSTEM
Pump Installation
5. Apply a light film of grease to a new O-ring on the
cooling water supply pipe.
6. Align interlocking tabs (D) and install stator housing
to pump housing. Apply Loctite 242 (Blue) to the
four 5/16" mounting bolts and torque to
specification.
NOTE: Install wedge between stationary housing and
stator housing (where applicable). Thick edge is posi
tioned toward bottom, and corner tabs must align.
Stator Section Mounting Bolt Torque
Apply Loctite™ 242 (Blue)
18 ft. lbs. (24.9 Nm)
7. Install bilge siphon lines and secure with new
cable ties. Tighten securely.
Polaris Sales Inc.
5.19
3/00
