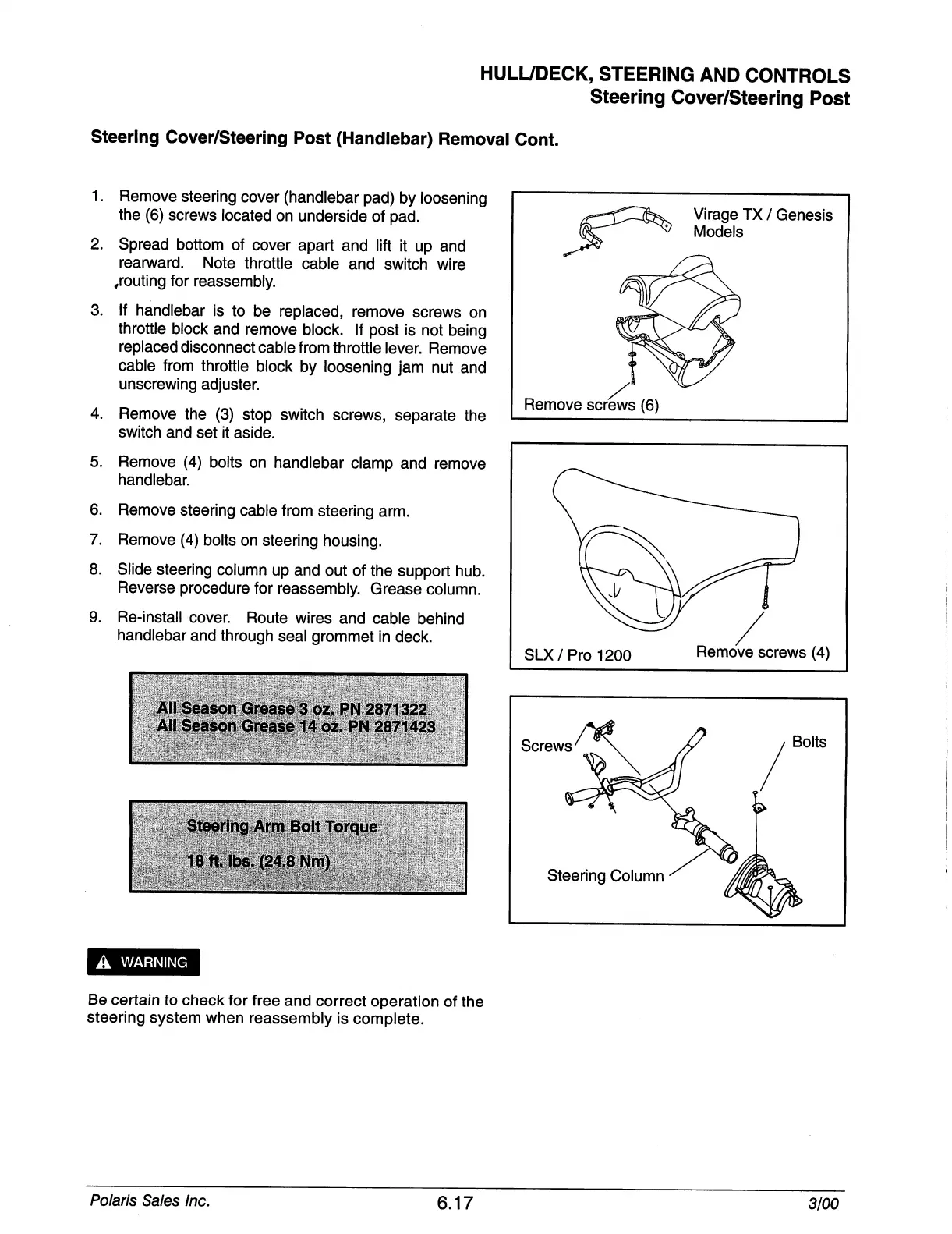

HULL/DECK,
STEERING
AND
CONTROLS
Steering
Cover/Steering
Post
Steering
Cover/Steering
Post
(Handlebar)
Removal
Cont.
1.
Remove
steering
cover
(handlebar
pad)
by
loosening
the
(6)
screws
located
on
underside
of
pad.
2.
Spread
bottom
of
cover
apart
and
lift
it
up
and
rearward.
Note
throttle
cable
and
switch
wire
/outing
for
reassembly.
3.
If
handlebar
is
to
be
replaced,
remove
screws
on
throttle
block
and
remove
block.
If
post
is
not
being
replaced
disconnect
cable
from
throttle
lever.
Remove
cable
from
throttle
block
by
loosening
jam
nut
and
unscrewing
adjuster.
4.
Remove
the
(3)
stop
switch
screws,
separate
the
switch
and
set
it
aside.
5.
Remove
(4)
bolts
on
handlebar
clamp
and
remove
handlebar.
6.
Remove
steering
cable
from
steering
arm.
7.
Remove
(4)
bolts
on
steering
housing.
8.
Slide
steering
column
up
and
out
of
the
support
hub.
Reverse
procedure
for
reassembly.
Grease
column.
9.
Re-install
cover.
Route
wires
and
cable
behind
handlebar
and
through
seal
grommet
in
deck.
Virage
TX
/
Genesis
Models
Remove
screws
(6)
SLX/Pro
1200
Remove
screws
(4)
WARNING
Be
certain
to
check
for
free
and
correct
operation
of
the
steering
system
when
reassembly
is
complete.
Polaris
Sales
Inc.
6.17
3/00
