ELECTRICAL

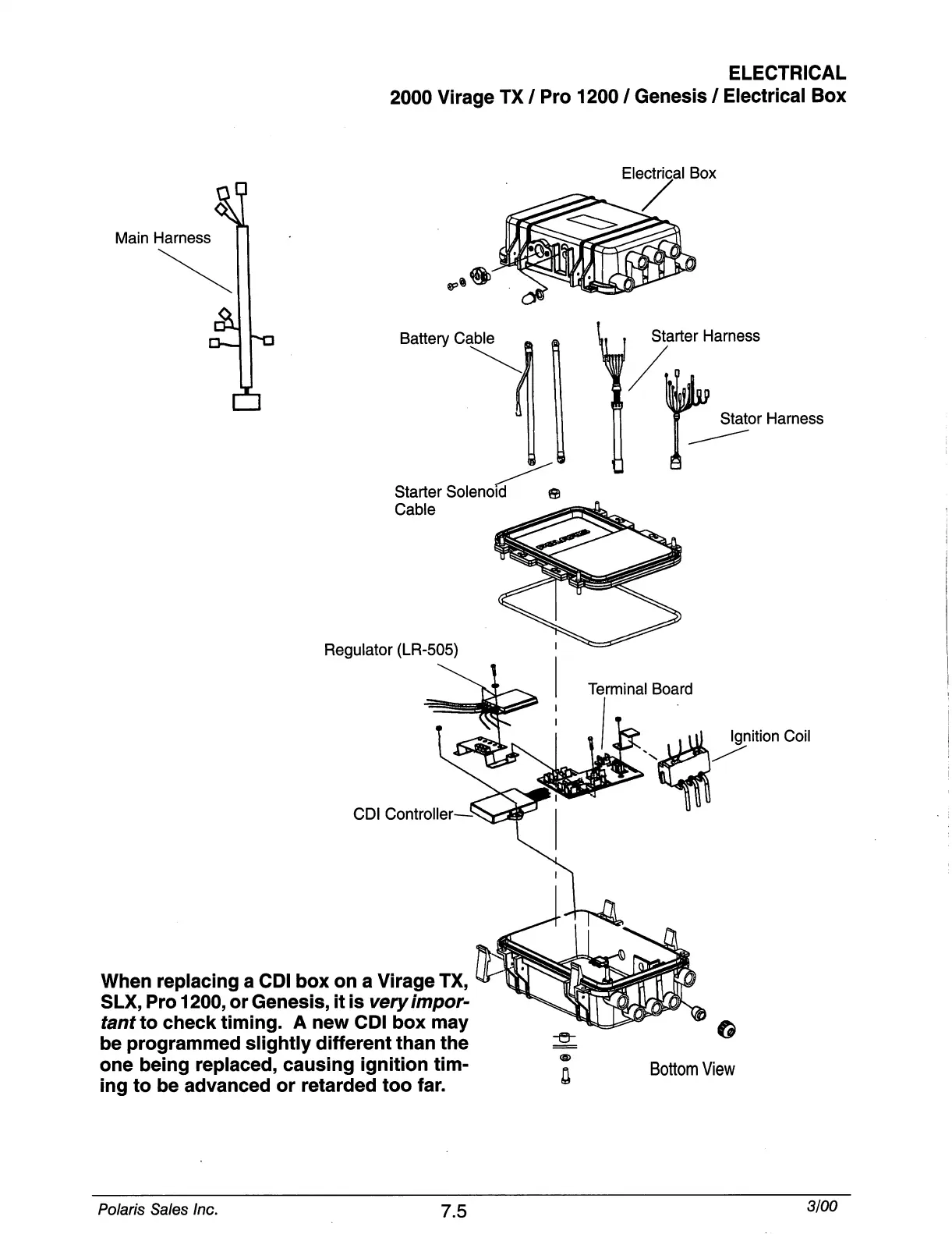

2000 Virage TX / Pro 1200 / Genesis / Electrical Box
Electrical Box
Main Harness
"ID
Battery Cable
Starter Harness
Starter Solenoid ©
Cable
Regulator (LR-505)
CDI Controller—Q
When replacing a CDI box on a Virage TX,
SLX, Pro 1200, or Genesis, it is very impor
tant to check timing. A new CDI box may
be programmed slightly different than the
one being replaced, causing ignition tim
ing to be advanced or retarded too far.
Stator Harness
Ignition Coil
Bottom View
