Polaris Genesis 2000

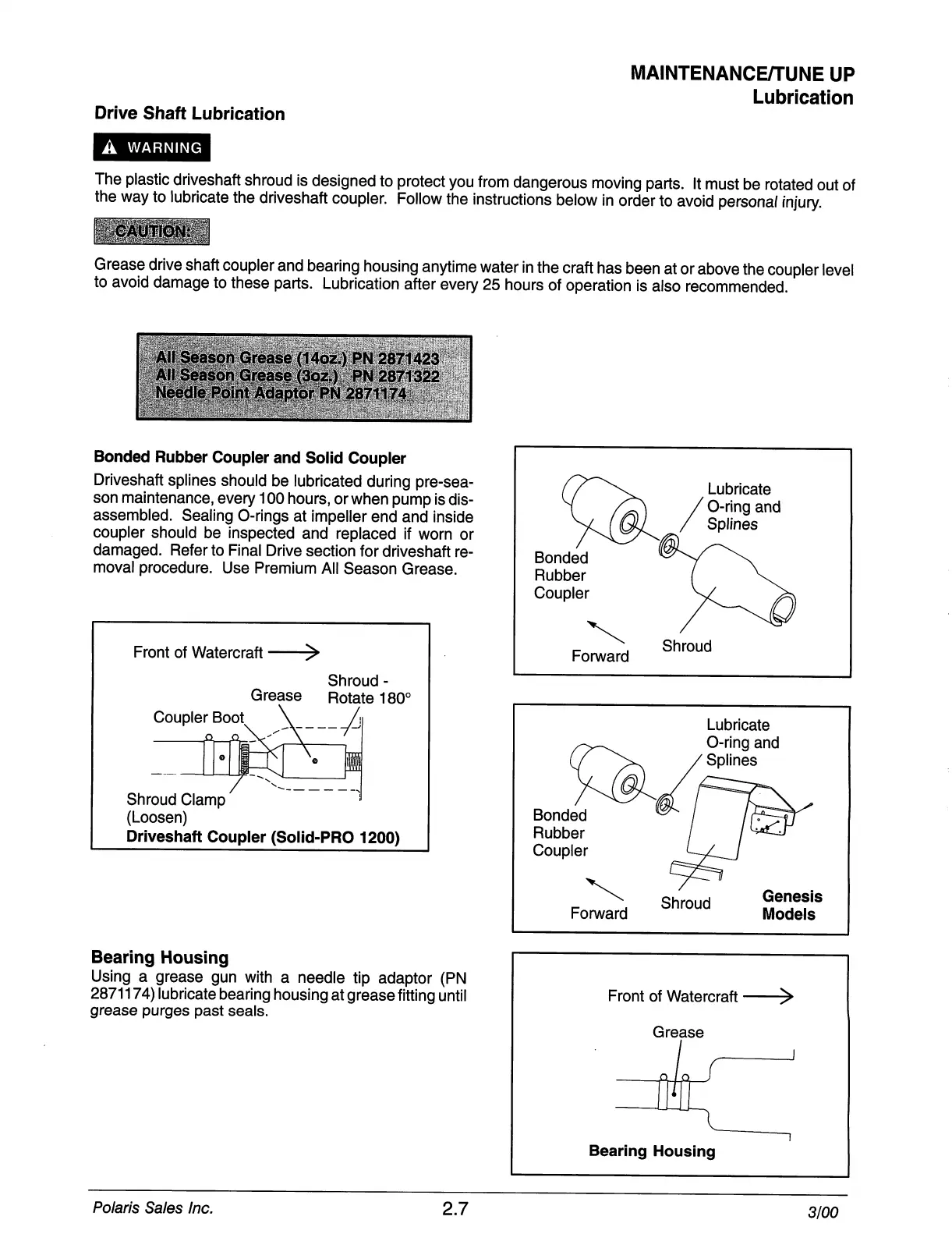

Drive Shaft Lubrication
A WARNING
MAINTENANCE/TUNE UP
Lubrication
The plastic driveshaft shroud is designed to protect you from dangerous moving parts. It must be rotated out of
the way to lubricate the driveshaft coupler. Follow the instructions below in order to avoid persona/ injury.
Grease drive shaft coupler and bearing housing anytime water in the craft has been at or above the coupler level
to avoid damage to these parts. Lubrication after every 25 hours of operation is also recommended.
All Season Grease (14oz.) PN 2871423
Alt^son Qtea# #<«>); PN 2871322
Bonded Rubber Coupler and Solid Coupler
Driveshaft splines should be lubricated during pre-sea-
son maintenance, every 100 hours, or when pump is dis
assembled. Sealing O-rings at impeller end and inside
coupler should be inspected and replaced if worn or
damaged. Refer to Final Drive section for driveshaft re
moval procedure. Use Premium All Season Grease.
Front of Watercraft
Shroud -
Grease Rotate 180°
Coupler Boot
Shroud Clamp
(Loosen)
Driveshaft Coupler (Solid-PRO 1200)
Lubricate
O-ring and
Splines
Bonded
Rubber
Coupler
Forward
Shroud
Lubricate
O-ring and
Splines
Bonded
Rubber
Coupler
Forward
Shroud
Genesis
Models
Bearing Housing
Using a grease gun with a needle tip adaptor (PN
2871174) lubricate bearing housing at grease fitting until
grease purges past seals.
Polaris Sales Inc.
2.7
3100
