Polaris Genesis 2000

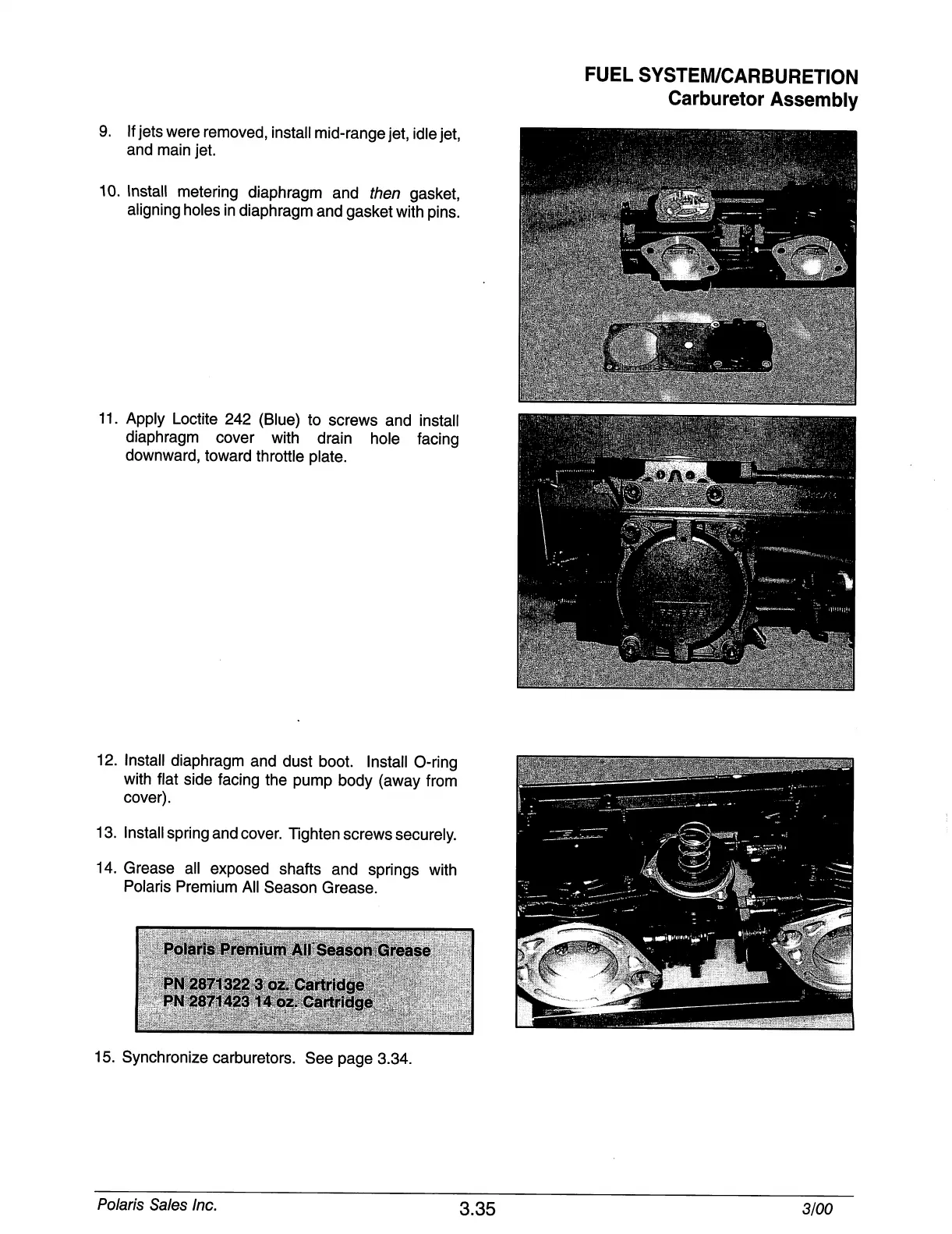

FUEL SYSTEM/CARBURETION
Carburetor Assembly
9. If jets were removed, install mid-range jet, idle jet,
and main jet.
10. Install metering diaphragm and then gasket,
aligning holes in diaphragm and gasket with pins.
11. Apply Loctite 242 (Blue) to screws and install
diaphragm cover with drain hole facing
downward, toward throttle plate.
12. Install diaphragm and dust boot. Install O-ring
with flat side facing the pump body (away from
cover).
13. Install spring and cover. Tighten screws securely.
14. Grease all exposed shafts and springs with
Polaris Premium All Season Grease.
15. Synchronize carburetors. See page 3.34.
Polaris Sales Inc.
3.35
3/00
