Polaris Maxx - Getting Started; Main Menu and Interface Navigation

4

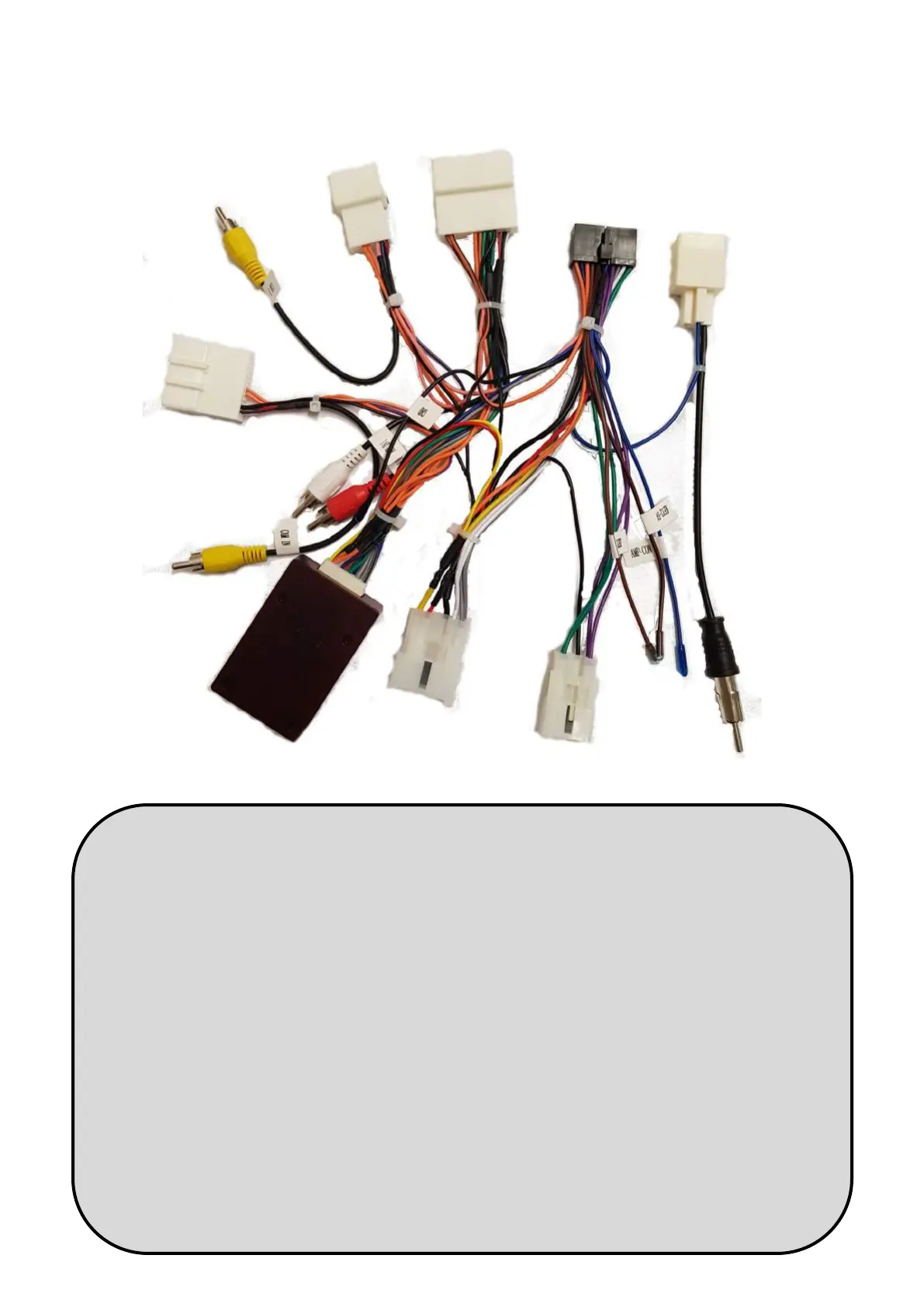

Main wiring harness
1
2
3
4
5 6
7
8
9
10
1. 7 pin plug—Not used
2. 15 pin plug—Steering wheel controls,
reverse trigger + more (plugs into
OEM Harness)
3. Main power (plugs into the back of
the Polaris Maxx)
4. Radio Antenna adaptor (plugs into
OEM
harness)
5. 1 Din Radio Antenna (plugs into the
back of Polaris Maxx)
6. 5 pin plug—Rear Speakers
(plugs into OEM harness)
7. Main power + front speakers
(plugs into OEM harness)
8. Canbus Module
9. Cam In—if you are using the factory
camera, plug this cable into the
female cam in jack located in
input no. 10 (see page 38)
10. 6 pin plug—
Factory Camera input
