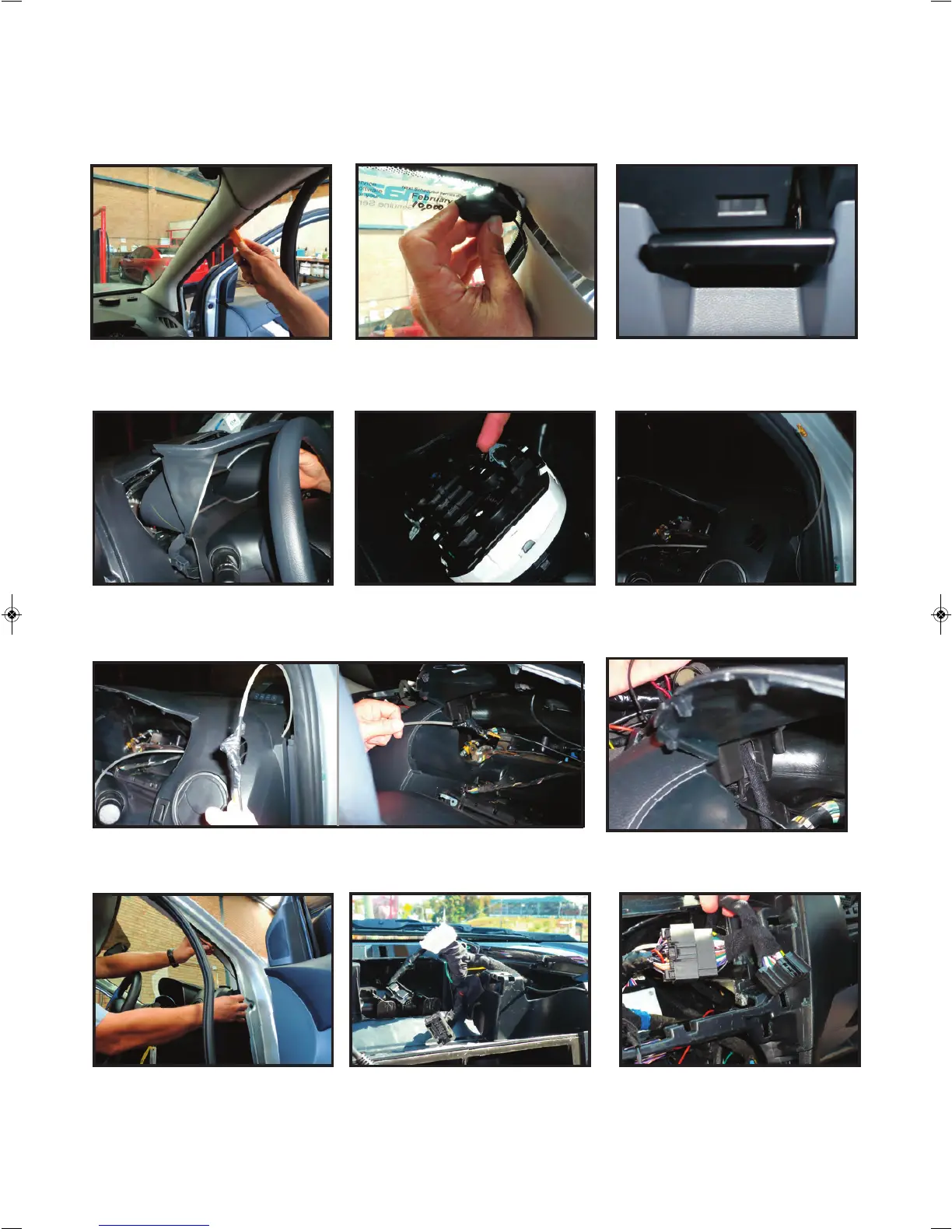

1.Remove door rubber and the
driver’s pillar trim
2. Mount microphone in the
top right hand corner of the
windscreen
3. Use lever to drop steering
wheel column down
4. Remove trim around
instrument cluster panel
7. Tape Bluetooth mic cable onto strike and pull through to the
instrument cluster panel area
5. Unplug instrument cluster
panel and remove
6. Feed short strike through A
piller hole and feed into the
instrument cluster panel area
8. You can now remove the tape
and feed the Bluetooth mic cable
into the
TOP SECTION
9. Tidy up cabling running down
the side of the driver’s piller and
reinstall rubber and trim
10. While the instrument cluster panel is re-
moved we suggest feeding PLUG A & B lo-
cated on HARNESS 1 FROM the
CD HOUSING AREA up to the
TOP SECTION
(Please refer to page 8 for actual wiring diagram)
11. This will then leave PLUG C & D
from HARNESS 1 hanging in the
CD HOUSING AREA
Step 4 - Prepare all the cabling in preparation for
the head unit to be installed.
A. External Bluetooth Microphone
5
