ENGINE DISASSEMBLY / ASSEMBLY
4.60
2004 Four Stroke PWC Service Manual

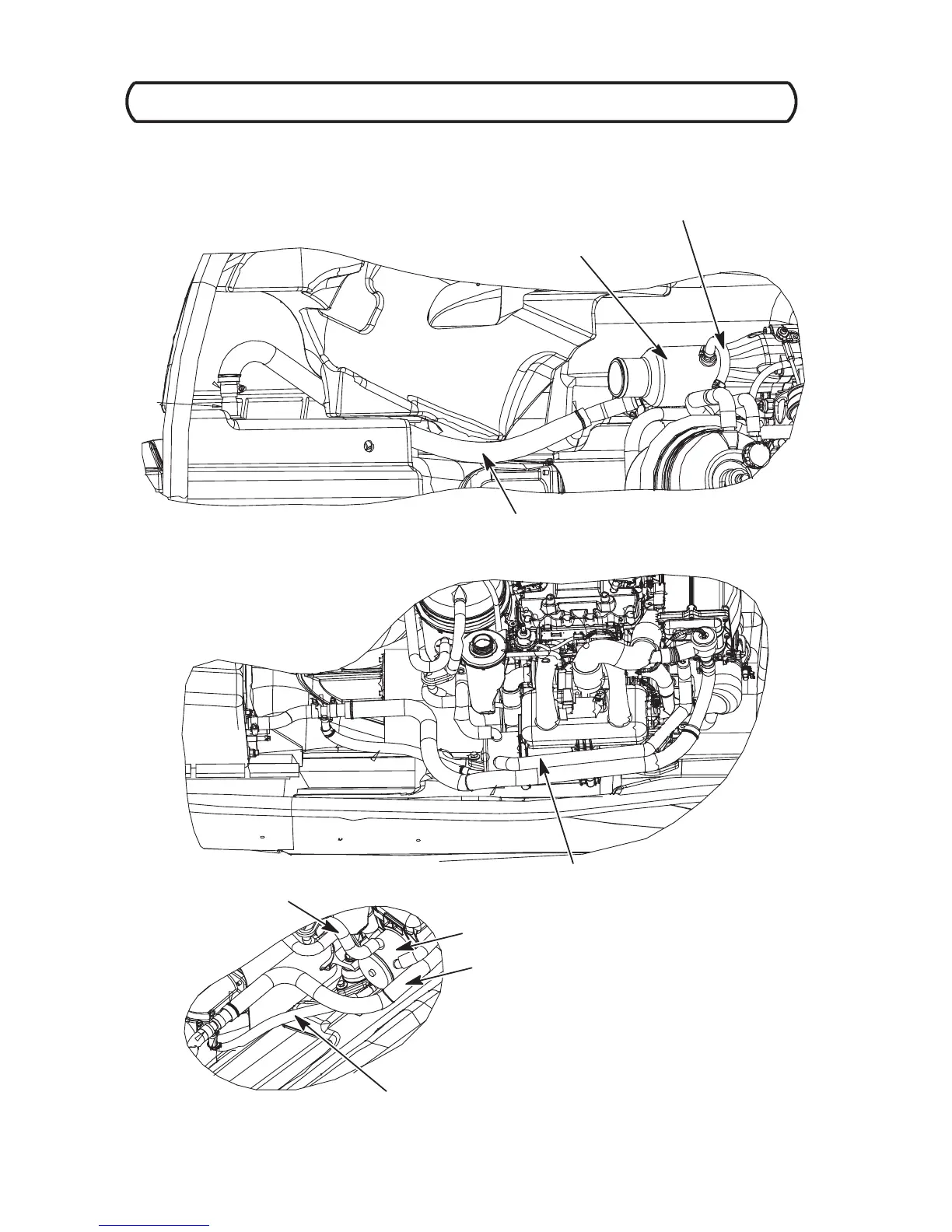

Freshwater Circuit Cooling Hose Routings
EXHAUST PIPE
FRESHWATER INJECTOR HOSE
FRESHWATER OUTLET HOSE
WATER--TO-- WATER HEAT EXCHANGER
FRESHWATER INLET HOSE
(TO INTERCOOLER)
FRESHWATER INLET HOSE
(TO HEAT EXCHANGER)
FRESHWATER OUTLET HOSE
(FROM HEAT EXCHANGER TO OIL STORAGE TANK)
FRESHWATER OUTLET HOSE
(FROM INTERCOOLER TO HEAT EXCHANGER)
