ABCDE F G H
1
3
2
4
ABC D E F G H
1
3
2
4
ABC D E F GHJK L M
1
3
2
4
ECU 300 (Black)
ECU 100 (Grey)
Pedal
Position
Unit
PPU
IFB
1
6
5
4
3
2
K1 PPU Gro und R e f e renc e
B1 PPU Voltage Supply
FE
DD
AC
B
A2 Pedal Position Sensor 2
A1 Pedal Position Sensor 1
Splice 11
Splice 10
B1 PPU Voltage Supply
FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.16
2004 Four Stroke PWC Service Manual

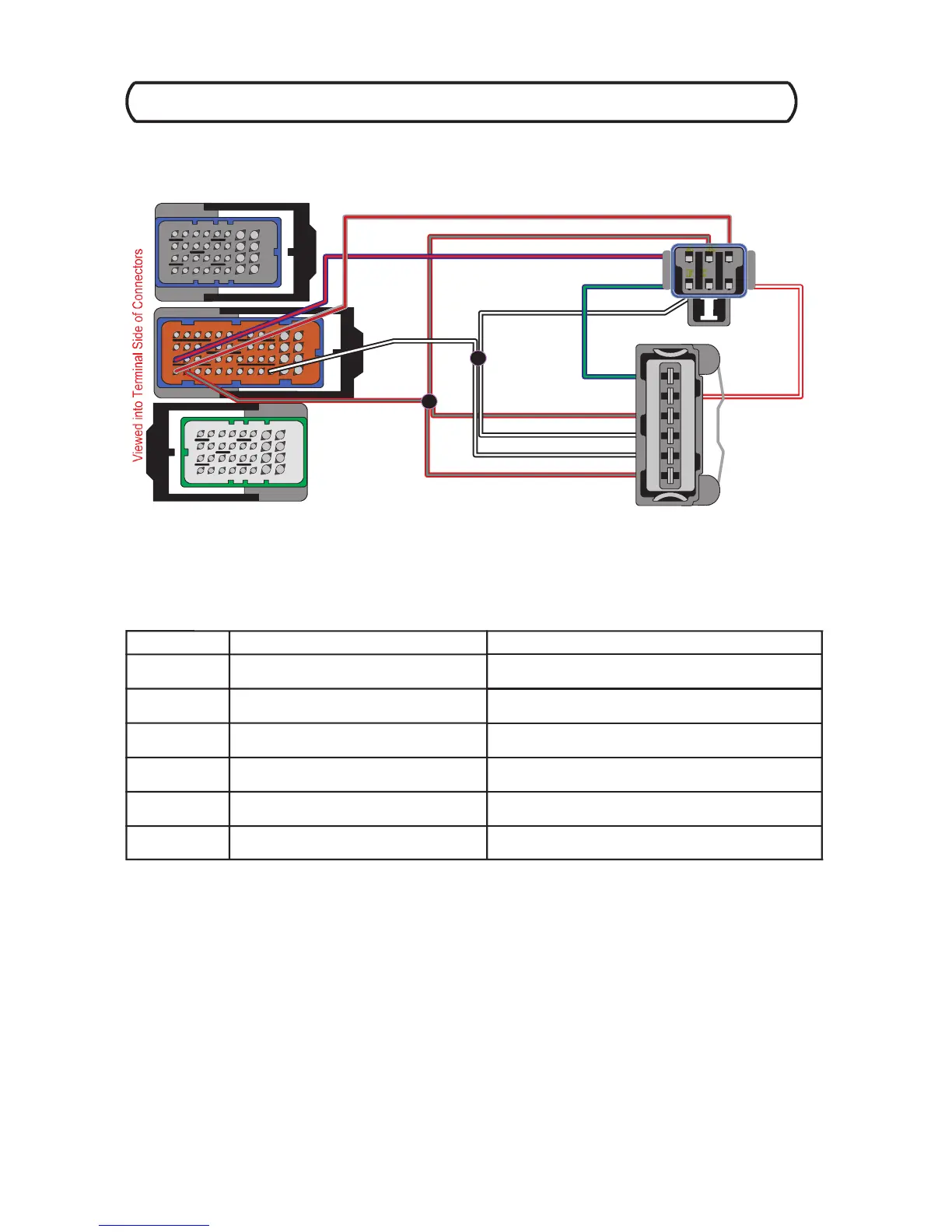

Pedal Position (PPU) Circuit
Circuit Trouble Codes
P -- Code Description Summary
P0220 Pedal Position Sensor #1: Plausibility Error Indicates the signals from the two pedal position sensors do not
agree.
P0222 Pedal Position Sensor #1: Short to Ground Pedal position sensor # 1 signal is too low. Can be caused by a
short to ground in the pedal position sensor #1 circuit.
P0223 Pedal Position Sensor #1: Open or Short to Bat-
tery
Pedal position sensor #1 signal is too high. Can be caused by a
open circuit or short to battery voltage.
P0225 Pedal Position Sensor #2: Plausibility Error Indicates the signals from the two pedal position sensors do not
agree.
P0227 Pedal Position Sensor #2: Short to Ground Pedal position sensor #2signal is too low. Can be caused by a
short to ground in the pedal position sensor #2 circuit.
P0228 Pedal Position Sensor #2: Open or Short to Bat-
tery
Pedal position sensor #2 signal is too high. Can be caused by a
open circuit or short to battery voltage.
