ECU 300 (Black)
ECU 100 (Grey)
To Main Relay Terminal 4
Injector 1
(PTO)
Injector
2
(MAG)
Splice 1
1
8
7
6
5
4
3
2
15
14
13
12
11
10
9
H2 Injector 2 (MAG) Control
G2 Injector 1 (PTO) Control
FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.172004 Four Stroke PWC Service Manual

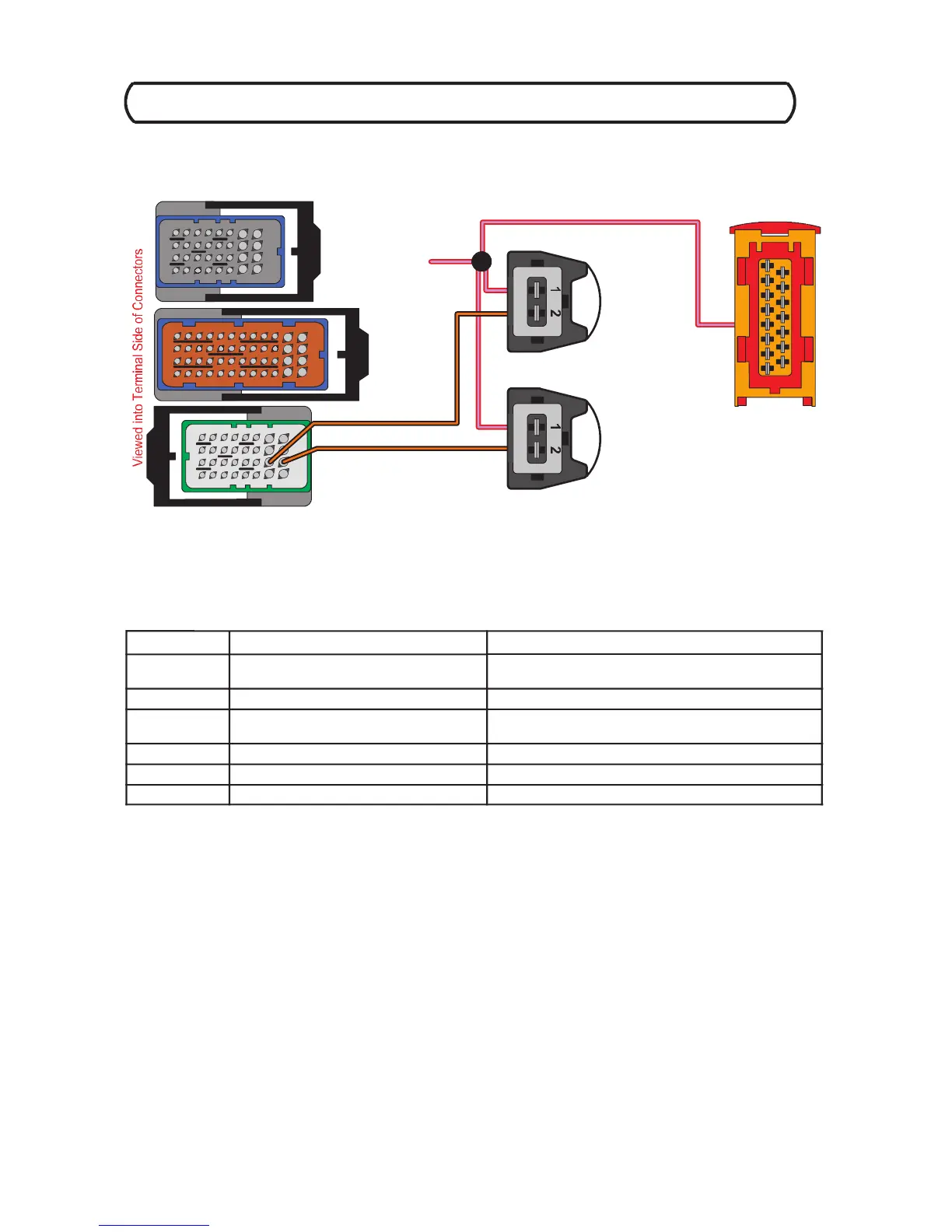

Fuel Injection Circuit
Circuit Trouble Codes
P -- Code Description Summary
P0261 Injector #1: Short to Ground Fuel injector #1 driver circuit is shorted to ground. Operating the
engine with this code can cause serious engine damage.
P0262 Injector #1: Short to Battery Fuel injector #1 circuit is shorted to battery voltage.
P0264 Injector #2: Short to Ground Fuel injector #2 driver circuit is shorted to ground. Operating the
engine with this code can cause serious engine damage.
P0265 Injector #2: Short to Battery Fuel injector #2 circuit is shorted to battery voltage.
P1260 Injector #1: Open Load The #1 fuel injector circuit is open.
P1263 Injector #2: Open Load The #2 fuel injector circuit is open.
