Polaris msx 110

ABCDE F G H
1
3
2
4
ABCDEF G H
1
3
2
4
ABC D E F GHJ K L M
1
3
2
4
ECU 300 (Black)
ECU 100 (Grey)
H4 Ignition G ro und
To Main Relay
Terminal 5
Ignition P ower
Ignition
Coil 2
(MAG)
Igni ti on
Coil 1
(PTO)
Splice 6
H3
Ignition Coil 2
(MAG) Control
G3
Ignition Coil 1
(PTO) Control
1
2
3
1
8
7
6
5
4
3
2
15
14
13
12
11
10
9
1
2
3
Splice 2
FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.18
2004 Four Stroke PWC Service Manual

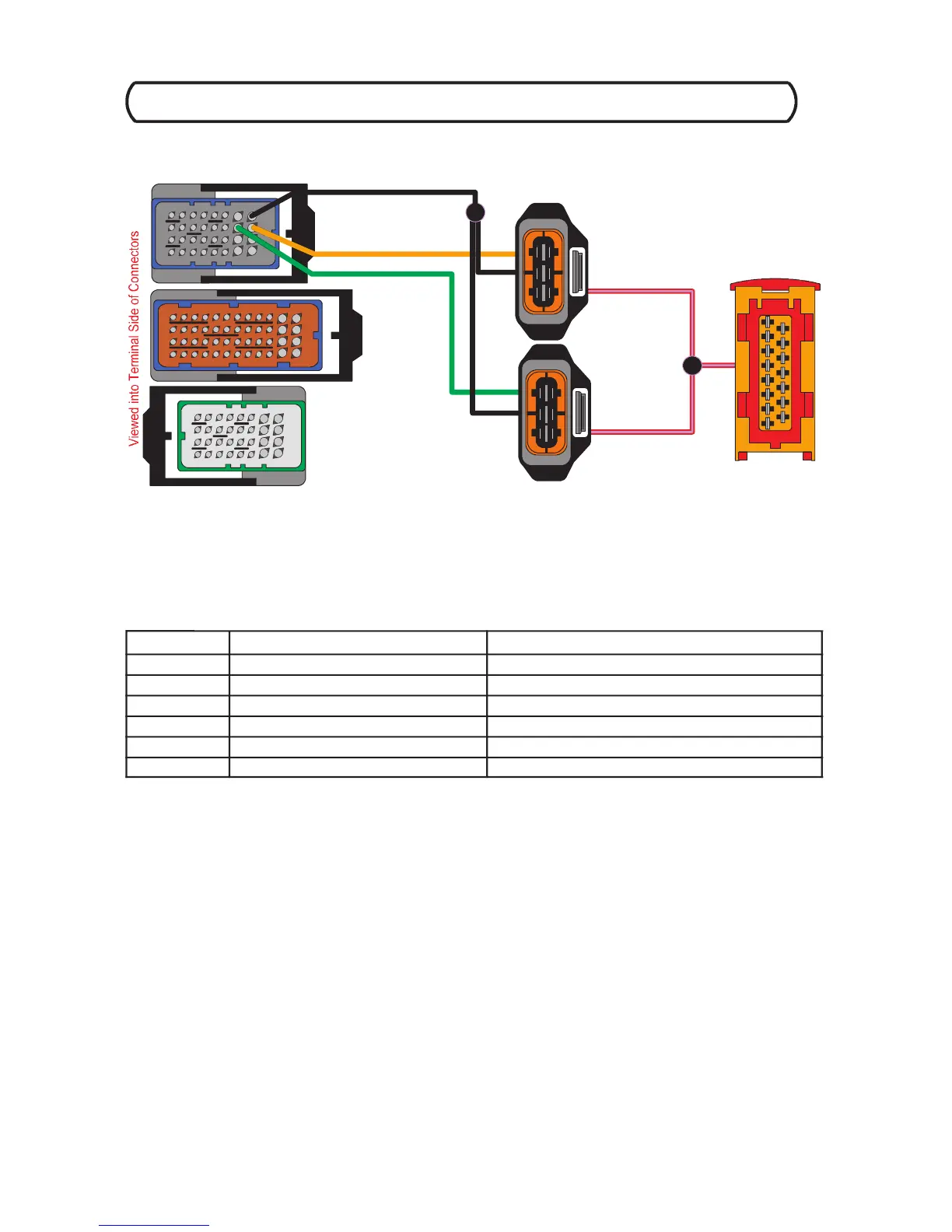

Ignition Coil Circuit
Circuit Trouble Codes
P -- Code Description Summary
P0351 Ignition Coil #1: Plausibility Error Both ignition coil circuits are shorted to ground.
P0352 Ignition Coil #2: Plausibility Error Both ignition coil circuits are shorted to ground.
P1351 Ignition Coil #2: Short to Ground Ignition coil #2 circuit is shorted to ground.
P1352 Ignition Coil #1: Short to Ground Ignition coil #1 circuit is shorted to ground.
P1353 Ignition Coil #2: Short to Battery Ignition coil #2 circuit is shorted to battery voltage.
P1354 Ignition Coil #1: Short to Battery Ignition coil #2 circuit is shorted to battery voltage.
