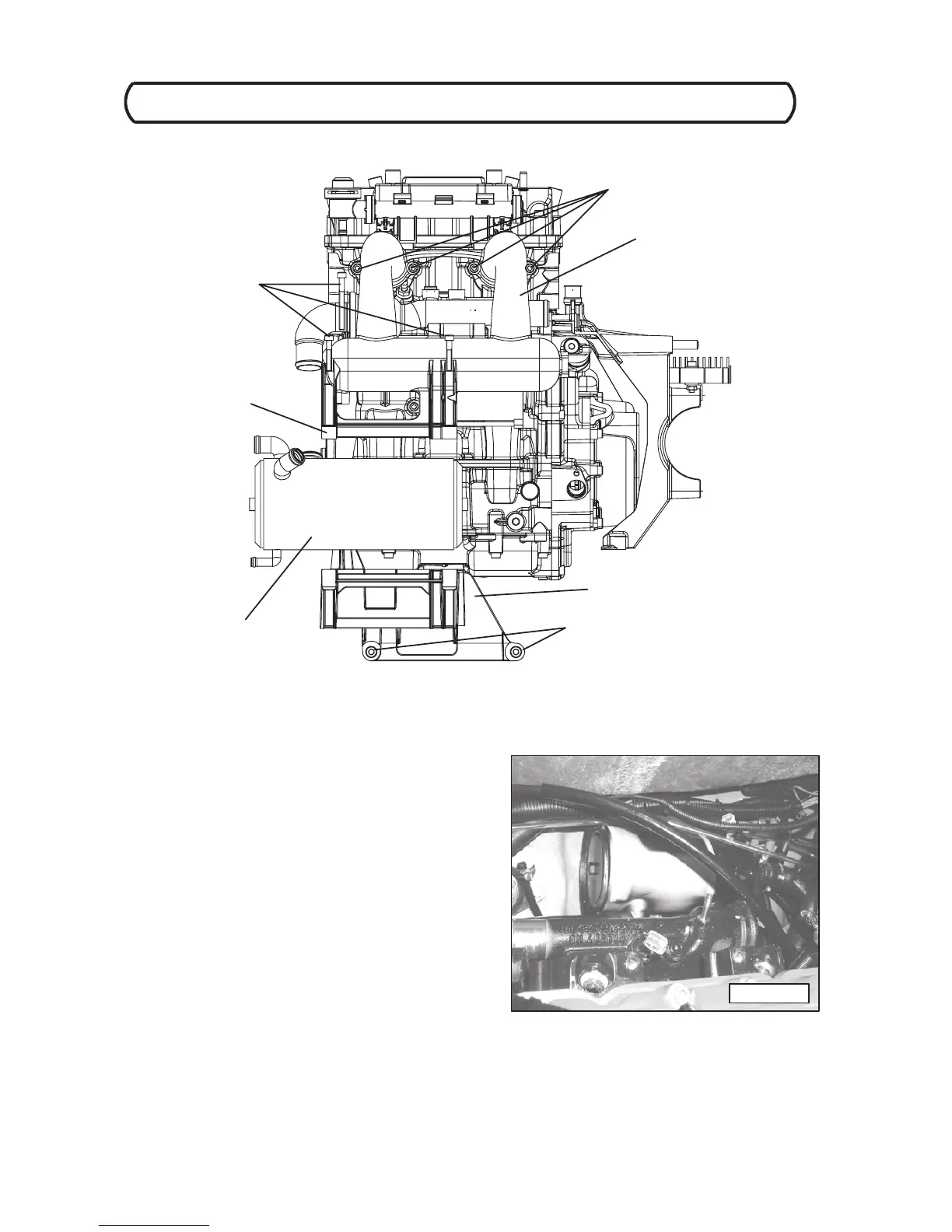

PHOTO H
ENGINE REMOVAL / INSTALLATION
3.52004 Four Stroke PWC Service Manual
Engine Removal and Installation -- Continued
19. With the fasteners removed, carefully slide the intake
manifold towards the rear of the engine compartment
and out of the watercraft.
20. Slide the heat exchanger towards the rear, then
remove from engine compartment. (Photo H)
21. Remove the two fasteners that secure the lower
bracket to the engine. Remove the lower bracket.
UPPER--TO--LOWER
BRACKET FASTENERS x3
WATER--TO--WATER
HEAT EXCHANGER
INTAKE MANIFOLD
LOWER BRACKET
UPPER BRACKET
MANIFOLD F ASTENERS x4
LOWER BRACKET FASTENERS x2
