ENGINE REMOVAL / INSTALLATION
3.4
2004 Four Stroke PWC Service Manual
Engine Removal and Installation -- Continued

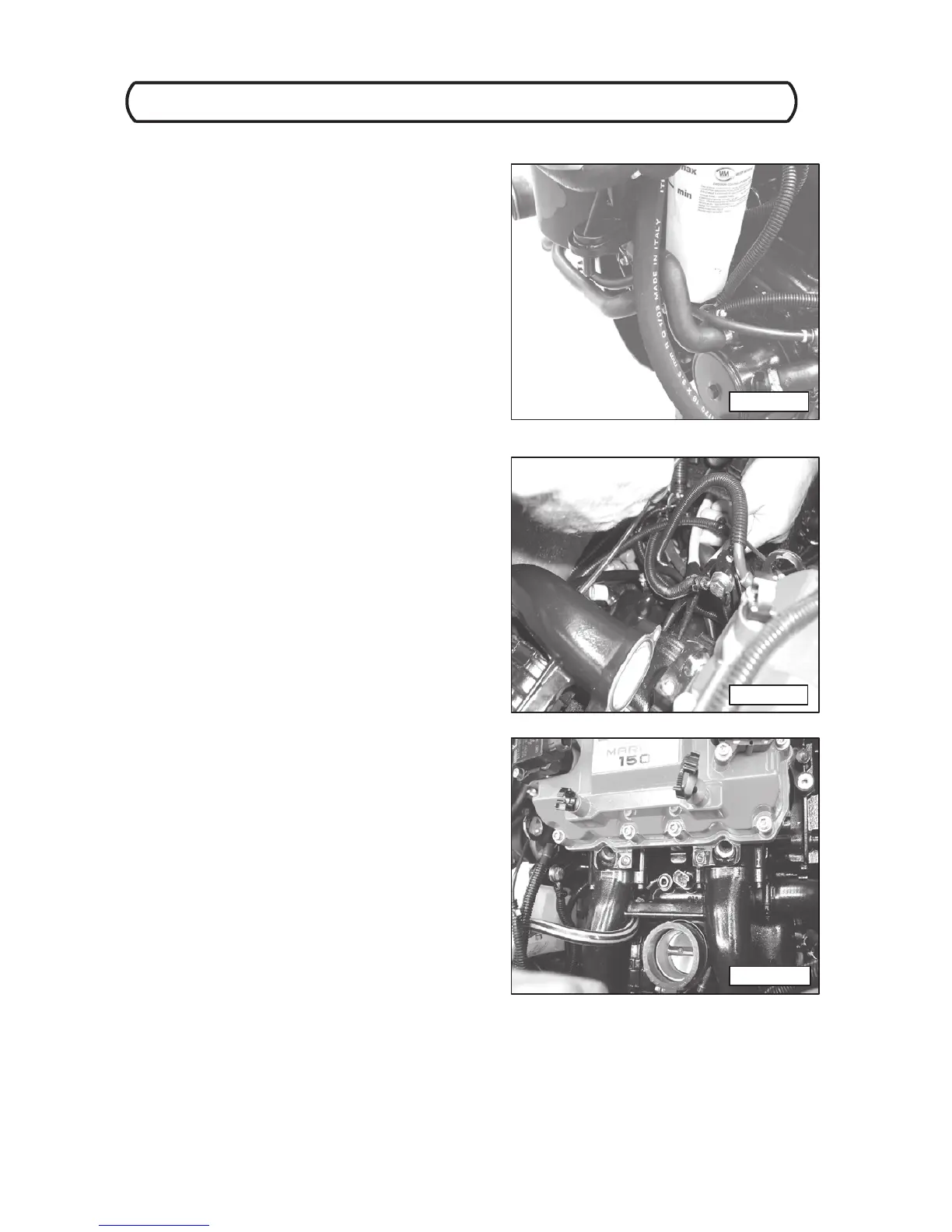

14. Locate the engine coolant recovery tank. Remove the
tank and associated hoses. Identify each hose during
removal. (Photo E)
15. Remove the freshwater and engine coolant hose from
the heat exchanger.
16. Locate the engine coolant outlet elbow located next to
the intake manifold. Rotate the elbow down and
towards the engine. (Photo F)
17. Remove the intake pipe, pop--off valve, fuel rail w/fuel
injectors, and associated hoses. (Photo G)
18. Remove the intake manifold fasteners. Reference
illustration on next page for fastener locations.
To Next Page
