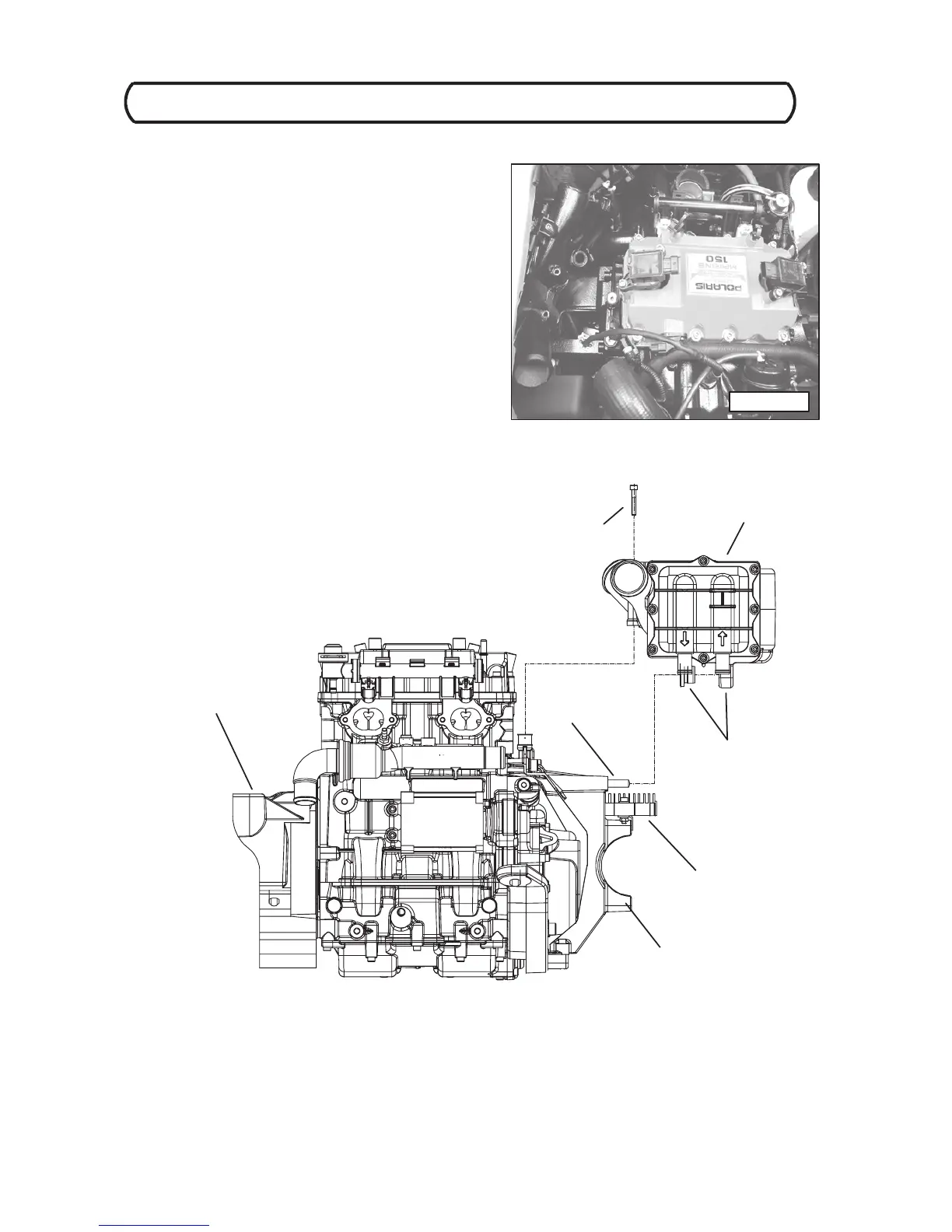

PHOTO D
ENGINE REMOVAL / INSTALLATION
3.32004 Four Stroke PWC Service Manual
Engine Removal and Installation -- Continued
12. Remove the hoses connected to the intercooler.
(Photo D)
13. Remove the fasteners and slide the intercooler forward
towards the fuel tank.
NOTE: The intercooler cannot be removed until an
engine hoist is connected to the engine and the en-
gine assembly is moved rearward.
FRONT ENGINE MOUNT
REGULATOR / RECTIFIER
INTERCOOLER
FASTENERS x2
MOUNTING
PINS x2
FRESHWATER
INLET / OUTLET
REAR ENGINE MOUNT
