PHOTO N
ENGINE REMOVAL / INSTALLATION
3.8
2004 Four Stroke PWC Service Manual
Engine Removal and Installation -- Continued

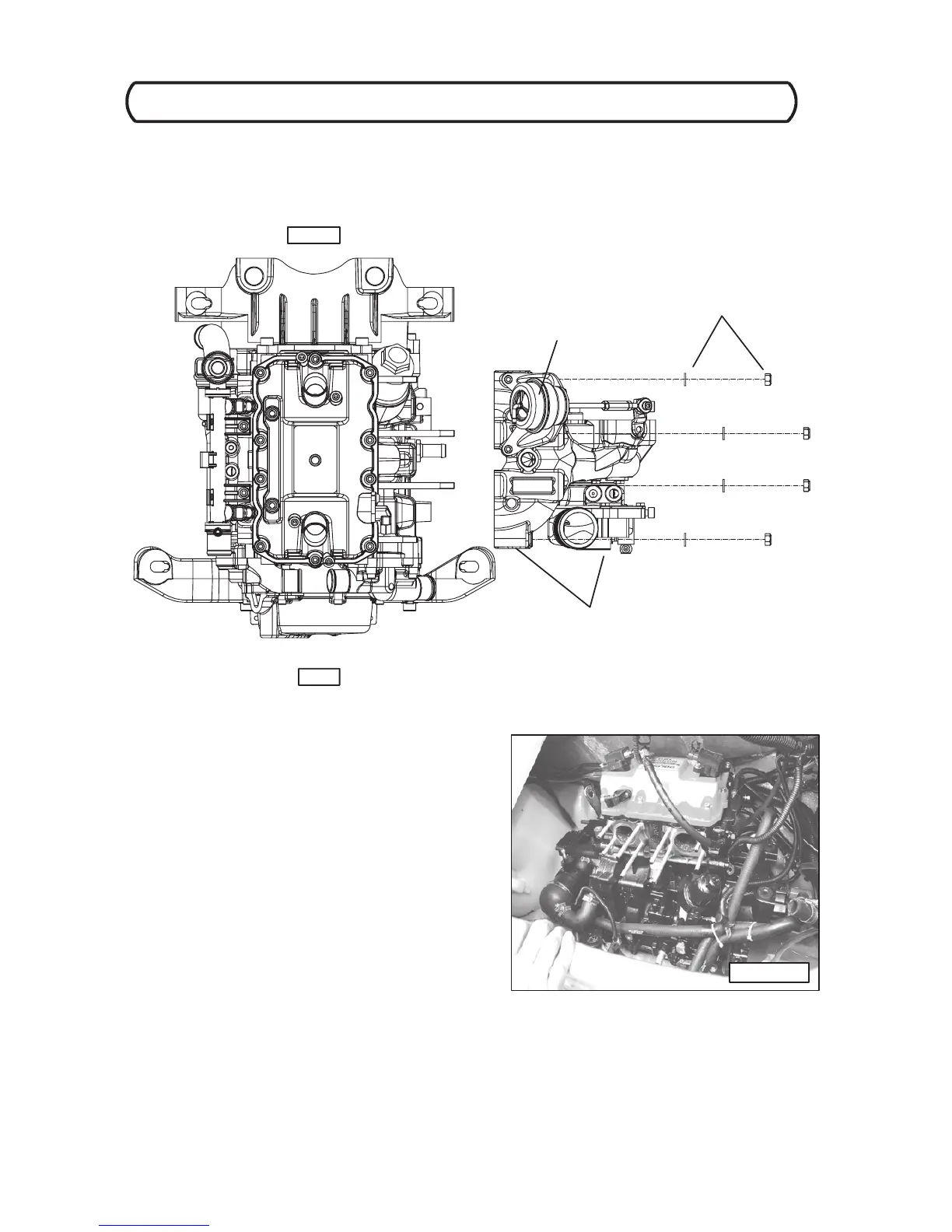

28. Illustration of exhaust manifold--to--engine assembly.
29. Reposition the core engine assembly into the center of
the engine compartment.
30. Carefully lift the engine straight up and out of the
compartment. (Photo N)
MANIFOLD MOUNTING NUTS
AND WASHERS x8
MANIFOLD / TURBO UNIT
WASTEGATE
BOW
STERN
