PHOTO A
PHOTO B
PHOTO C

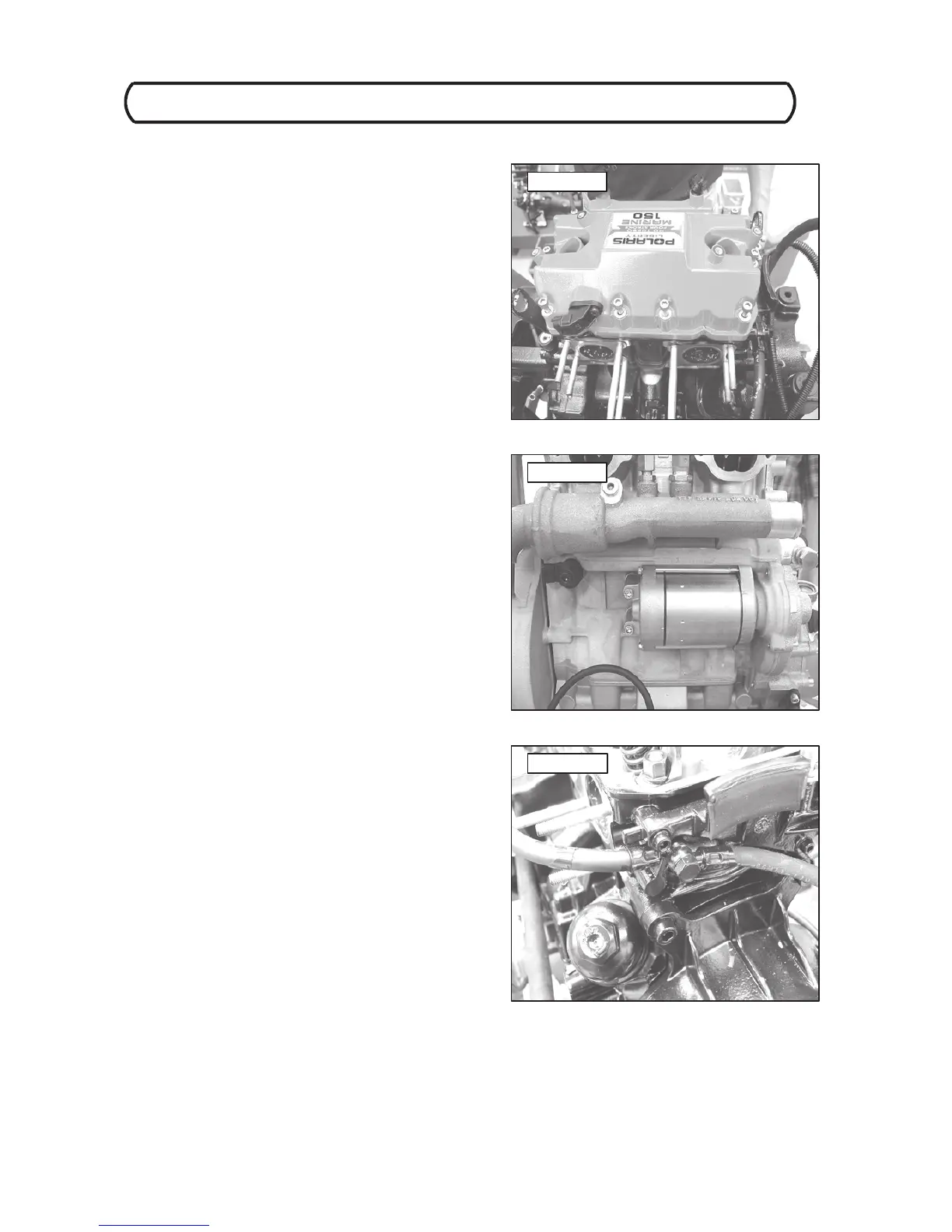

ENGINE DISASSEMBLY / ASSEMBLY
4.212004 Four Stroke PWC Service Manual
Engine Disassembly Process
1. Remove valve cover from engine. Discard
gaskets.(Photo A)
2. Remove the coolant outlet manifold, oil filter cover, and
electric starter motor from engine case. (Photo B)
3. Remove the two high pressure oil feed hose banjo bolts
from the cylinder head exhaust--side rear mounting
location. (Photo C)
NOTE: The two high pressure oil feed hoses supply
oil to the turbocharger bearing house, and oil supply
shutoff valve located on the top of the oil supply
tank.
