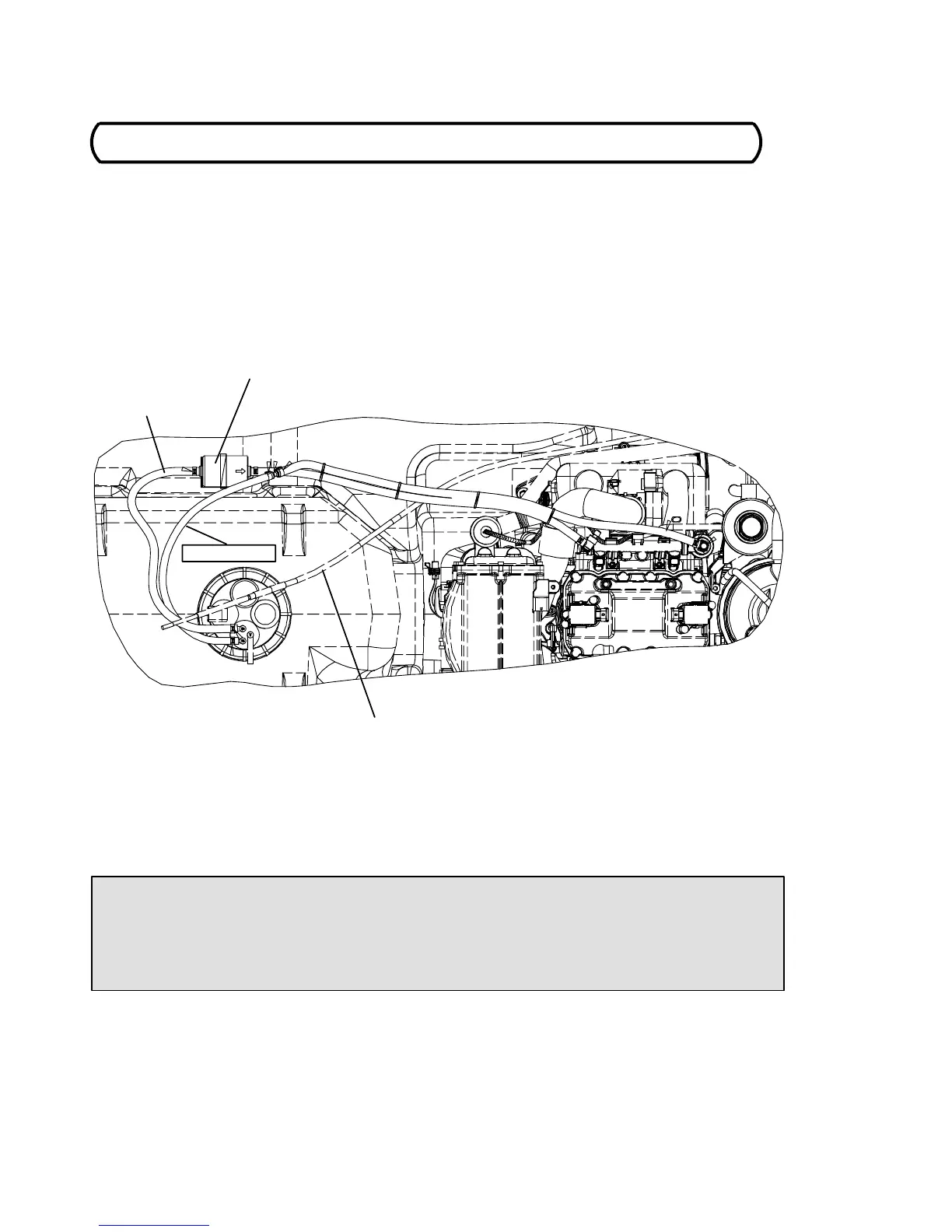

ASSEMBLY NOTES
Fuel supply hose is connected to “S” nozzle on fuel pump.
Fuel return hose is connected to “R” nozzle on fuel pump.
Fuel filter is connected to supply hose.
Both hoses are routed underneath steering cable at helm location.
Both hoses are routed over the steering cable at engine compartment location.
FUEL FILTER
FUEL SUPPLY
FUEL RETURN
STEERING CABLE
FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.4
2004 Four Stroke PWC Service Manual
Fuel Hose Routing
